Wichard Symmetric Carbin Hook - 120mm Length - 15/32" - 2317W
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 2 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 2317W
Truck Freight: No
Symmetric Carbin Hook - 120mm Length - 15/32"
Features:
- Grade 316L stainless steel carbine hooks
- Symmetrical shape
- With eye to attach a webbing or a splicing
Applications:
- For fastening applications
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 2990 / (kg) 1360
- WLL: (lb) 1580 / (kg) 720
- Breaking load: (lb) 7930 / (kg) 3600
- Weight: (lb) 0.505 / (g) 229

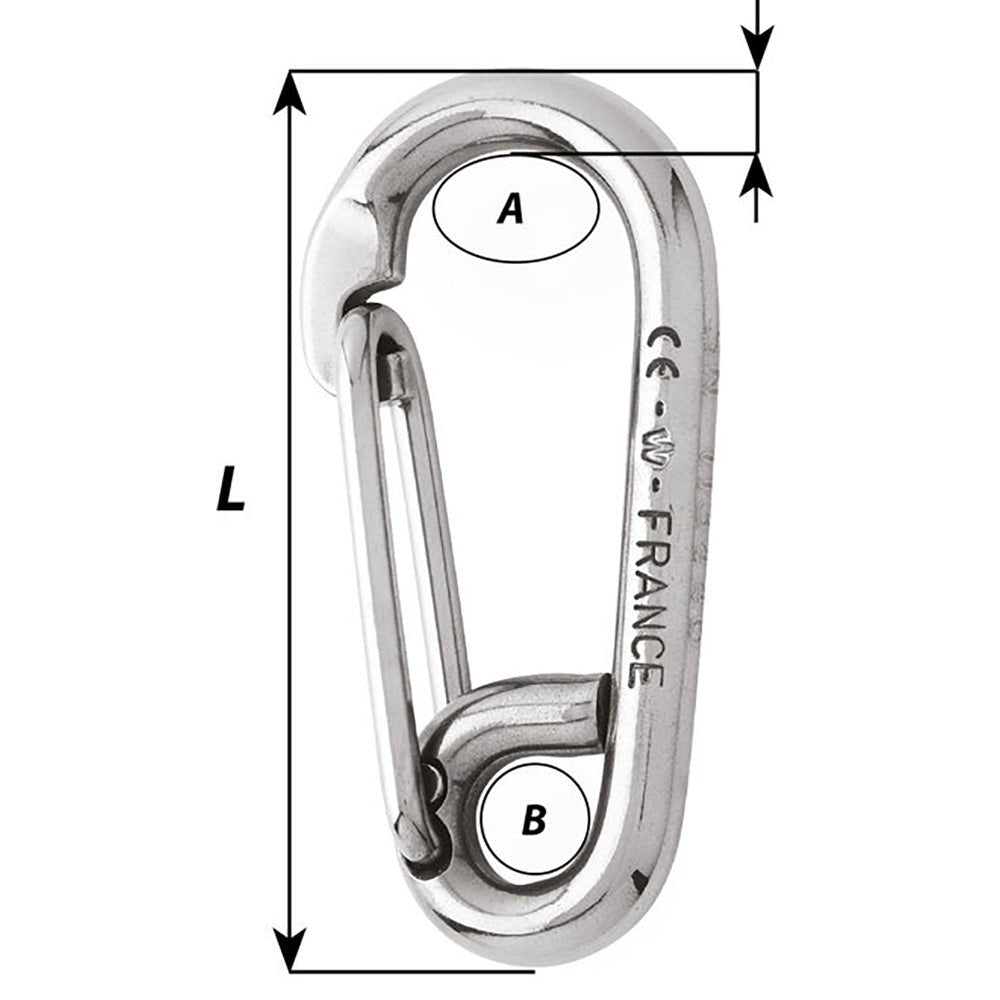

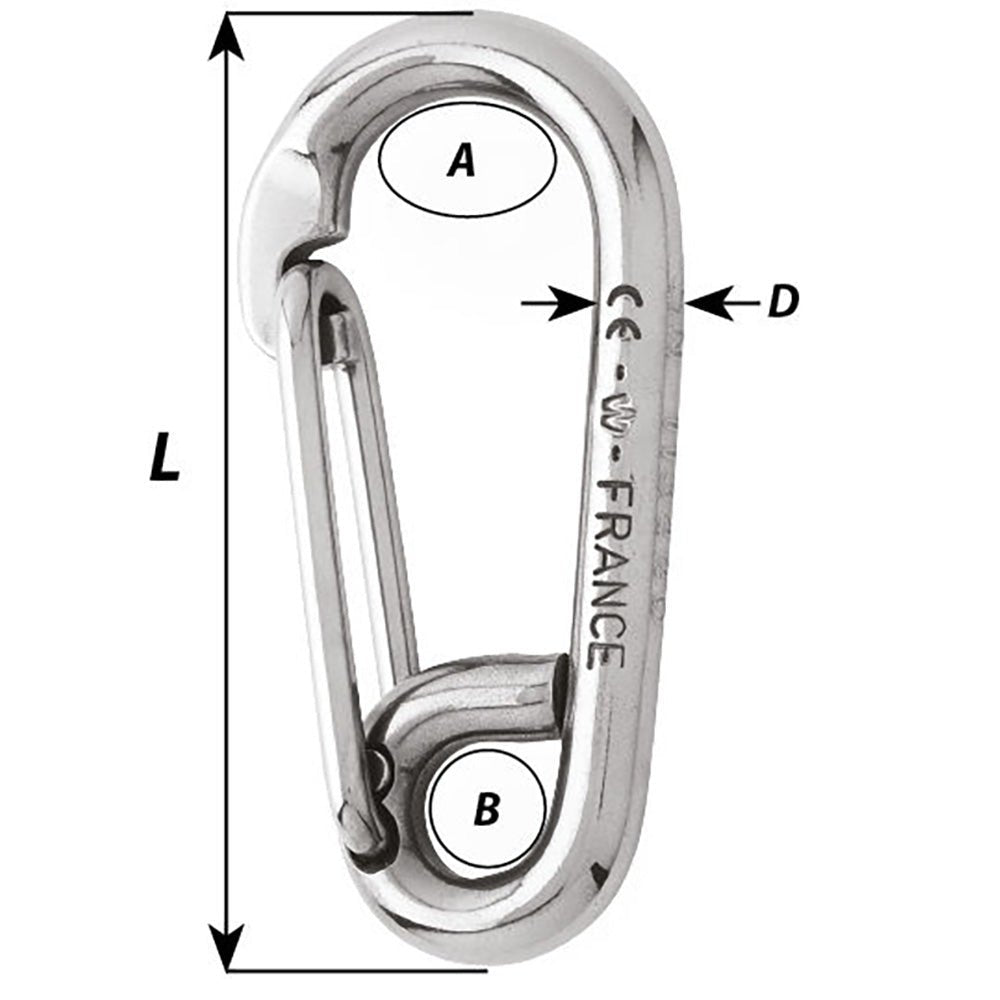

Dimensions:
- A: (inch) 53/64" / (mm) 21
- B: (inch) 5/8" / (mm) 16
- D diameter: (inch) 15/32" / (mm) 12
- Length: (inch) 4 23/32" / (mm) 120
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
