Wichard Stainless Steel Single Block - 25mm Sheave Diameter f/25mm Stanchion Pivoting - 30125W
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 2 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 30125W
Truck Freight: No

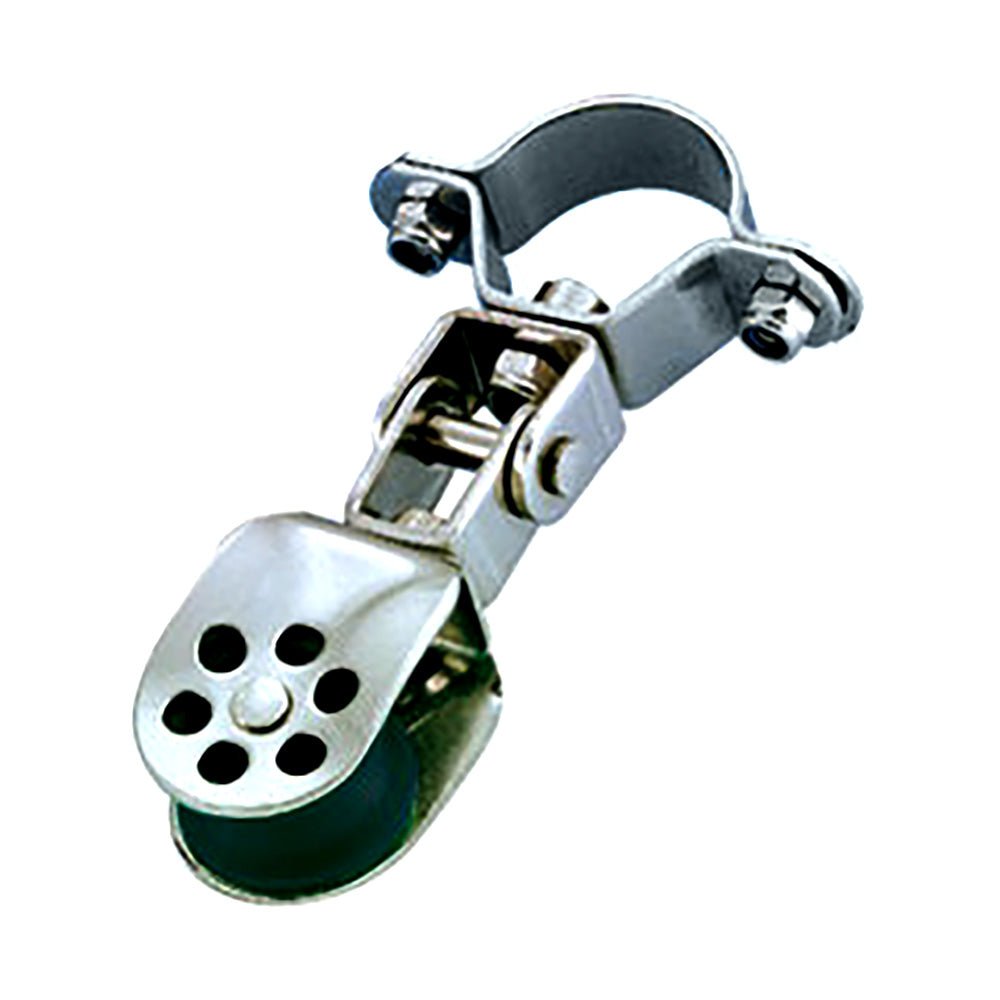

Stainless Steel Single Block - 25mm Sheave Diameter for 25mm Stanchion Pivoting
- A single block intended for use on a dinghy. The block is light, reliable, and has good performance.
Applications:
- For stanchion applications - furling system line
Specifications:
- Materials Composite sheave and 316L stainless steel grade cheeks
- Rope size: (inch) 5/16"-25/64" / (mm) 8-10
- Length: (inch) 3 47/64" / (mm) 95
- Width: (inch) 2 3/32" / (mm) 53
- Thickness: (inch) 53/64" / (mm) 21
- Sheave Diameter: (inch) 63/64" / (mm) 25
- Working load: (lb) 610 / (mm) 280
- Breaking load: (lb) 880 / (mm) 400
- Weight: (lb) 0.154 / (g) 70
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
