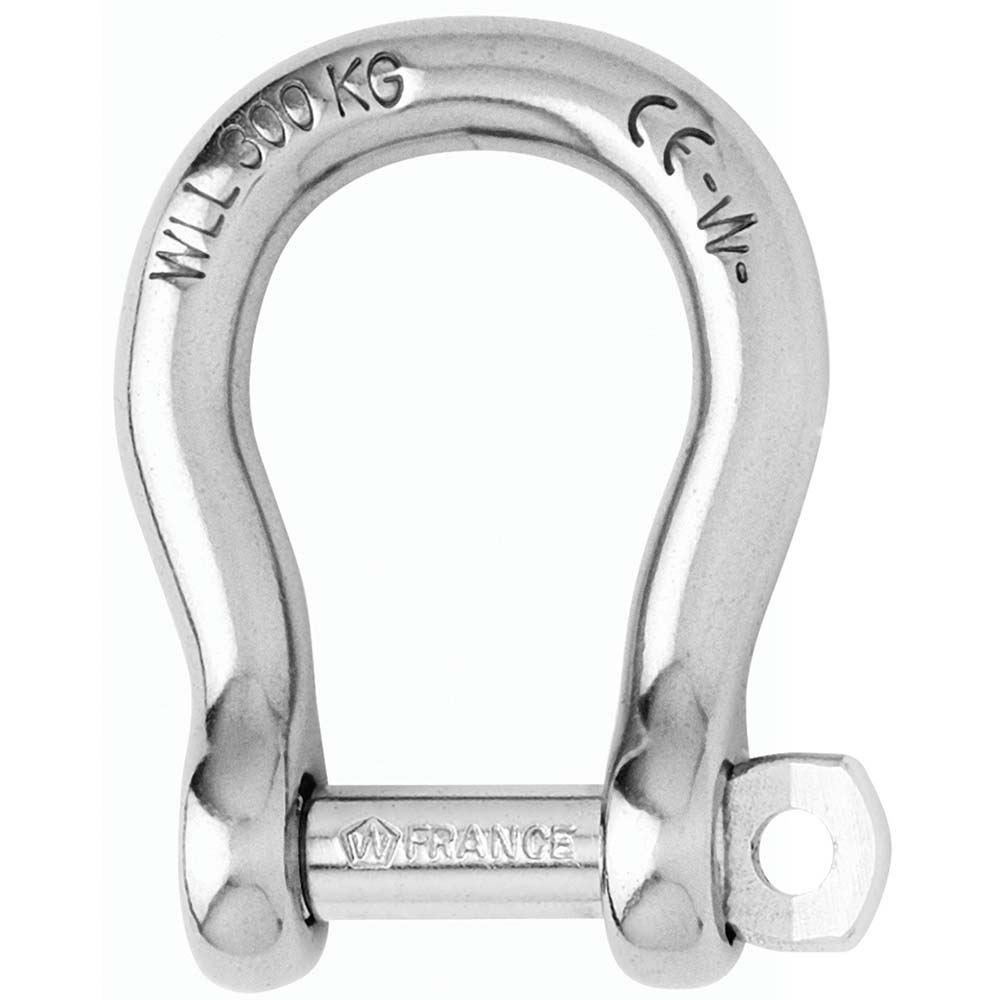

Wichard Marine Self-Locking Bow Shackle - 5mm (3/16") - Part Number 1242 - 1242W

Self-Locking Bow Shackle - Diameter 5mm - 3/16"

Features:

• Self-locking bow shackle forged in grade 316L stainless steel


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• WLL: only for industrial applications (lifting i.e…)


• CE marking and batch number

Applications:

• To be used when ample room is required


• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 880


• WLL (lb) 440


• Breaking load (lb) 2200


• Weight (lb) 0.037

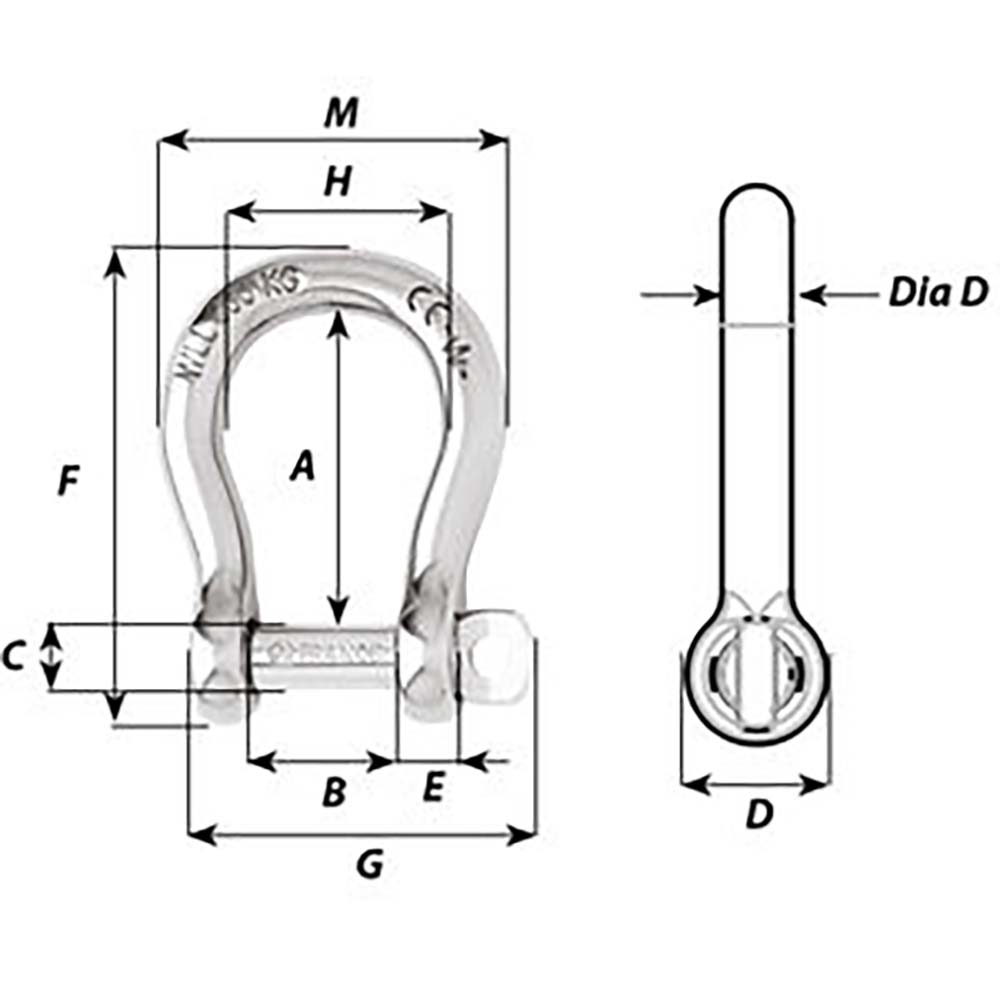

Dimensions (see 2nd image):

• A (inch) 29/32"


• B (inch) 25/64"


• C (inch) 13/64"


• D (inch) 25/64"


• D diameter (inch) 13/64"


• E (inch) 5/32"


• M (inch) 63/64"

With an impressive working load of 880 lbs and a breaking load of 2200 lbs, the Wichard Marine Self-Locking Bow Shackle is engineered to handle tough tasks. Its CE marking and batch number ensure compliance with industry standards. Perfect for applications requiring ample room, this shackle allows for multiple lines or cables to be attached effortlessly, making it a versatile addition to your equipment collection.

Whether you're lifting heavy loads or securing equipment, trust the Wichard Marine Self-Locking Bow Shackle for its outstanding performance and durability. Upgrade your gear today and experience the quality that Wichard Marine is known for.

Features:
* Self-locking design for secure pin retention
* Forged from grade 316L stainless steel for superior strength
* No risk of loosening due to vibrations, ensuring safety
* Impressive working load limit of 880 lbs
* CE marking and batch number for compliance
* Ideal for applications requiring connections of multiple lines or cables
