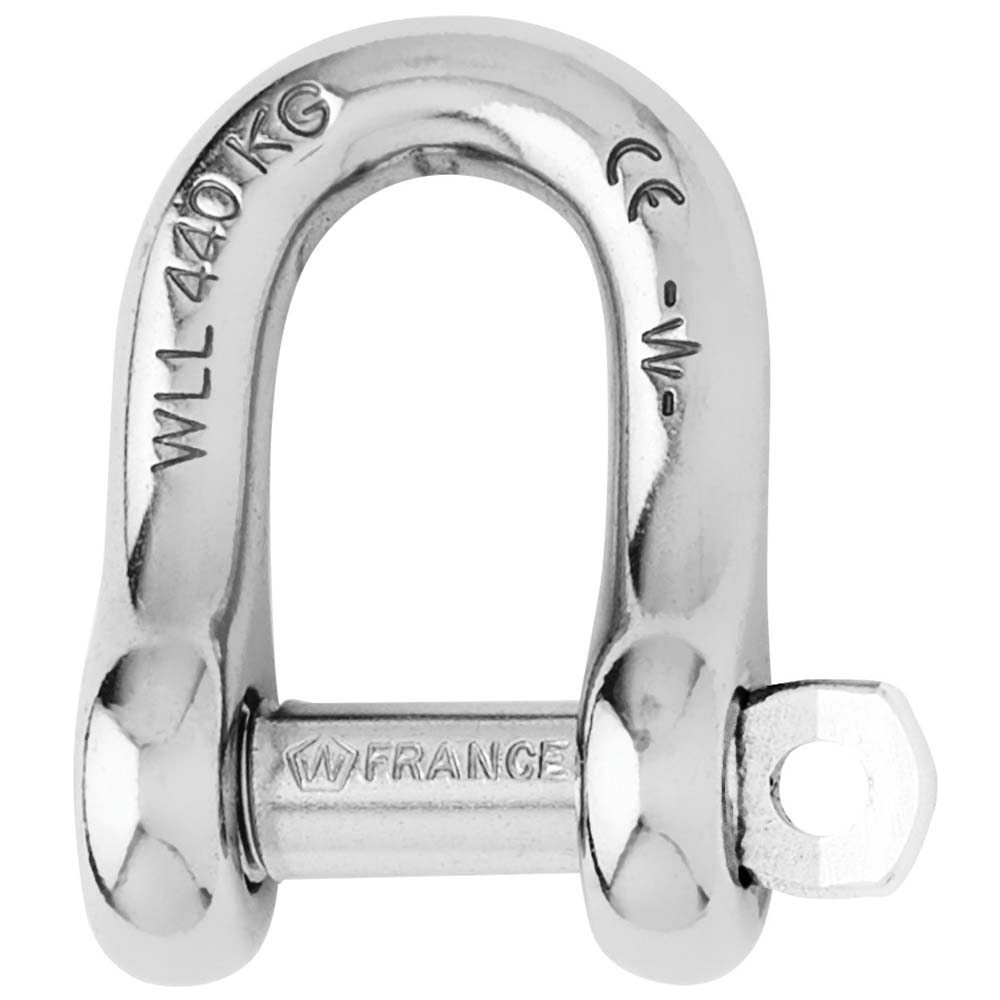

Wichard Marine Captive Pin D Shackle - Part Number 1402 - 5mm Diameter - 1402W

Captive Pin D Shackle - Diameter 5mm - 3/16"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel


• The pin is connected to the body at all times even when opened


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads

Applications:

• Standard applications of shackle


• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 1050


• WLL (lb) 660


• Breaking load (lb) 3300


• Weight (lb) 0.035

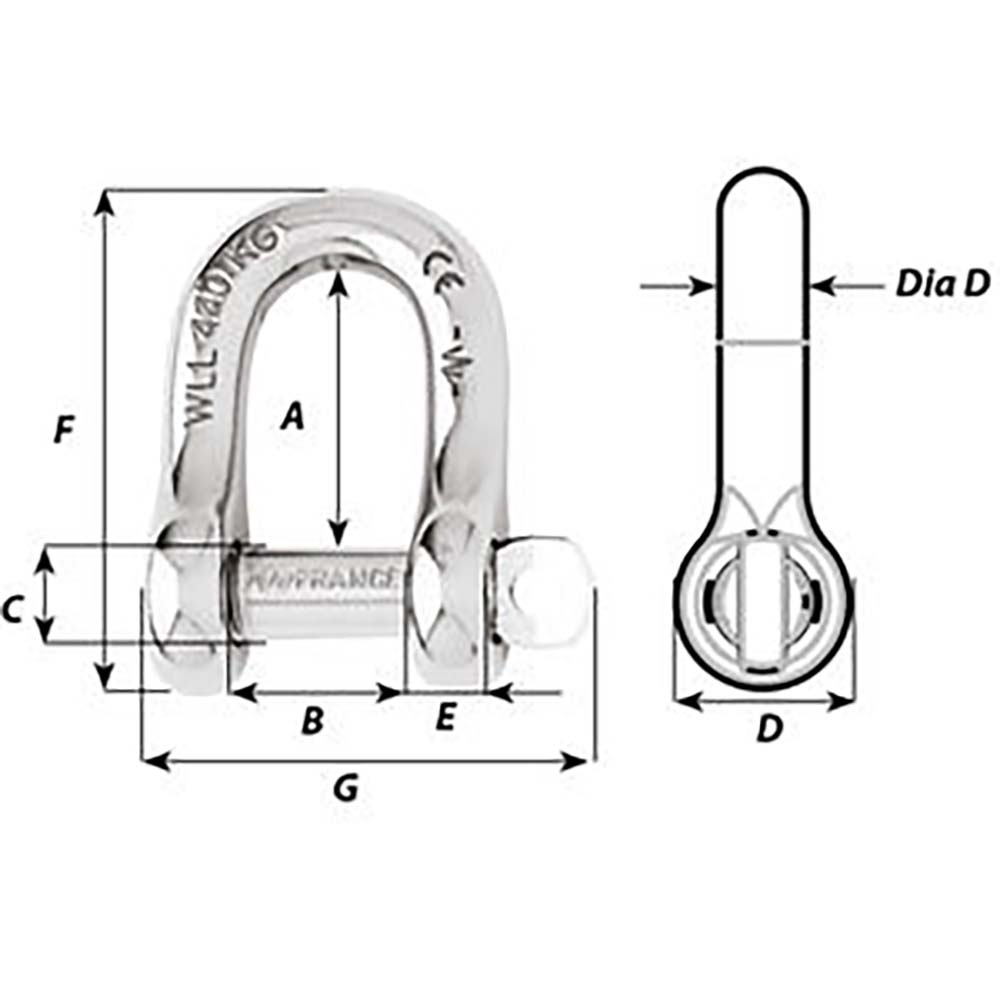

Dimensions (see 2nd image):

• A (inch) 5/8"


• B (inch) 25/64"


• C (inch) 15/64"


• D (inch) 7/16"


• D diameter (inch) 13/64"


• E (inch) 13/64"


• F (inch) 7/16"


• G (inch) 1-3/16"


• H (inch) 1-1/16"

With outstanding working and breaking loads, this D shackle is perfect for standard applications as well as attachment tasks such as securing blocks and other gear. The Wichard Marine Captive Pin D Shackle combines durability and functionality, making it an ideal choice for both amateur and professional sailors. Trust in Wichard Marine's reputation for quality and performance, and ensure your equipment is up to the task with this reliable shackle.

Features:
* Captive pin 'D' shackle forged in grade 316L stainless steel
* Pin is connected to the body at all times, even when opened
* Pin locks into one of the indentations to prevent loosening
* Designed to withstand vibrations without loosening
* Exceptional working and breaking loads for reliable performance
