Wichard Captive Pin Twisted Shackle - Diameter 8mm - 5/16" - 1424W
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 5 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 1424W
Truck Freight: No

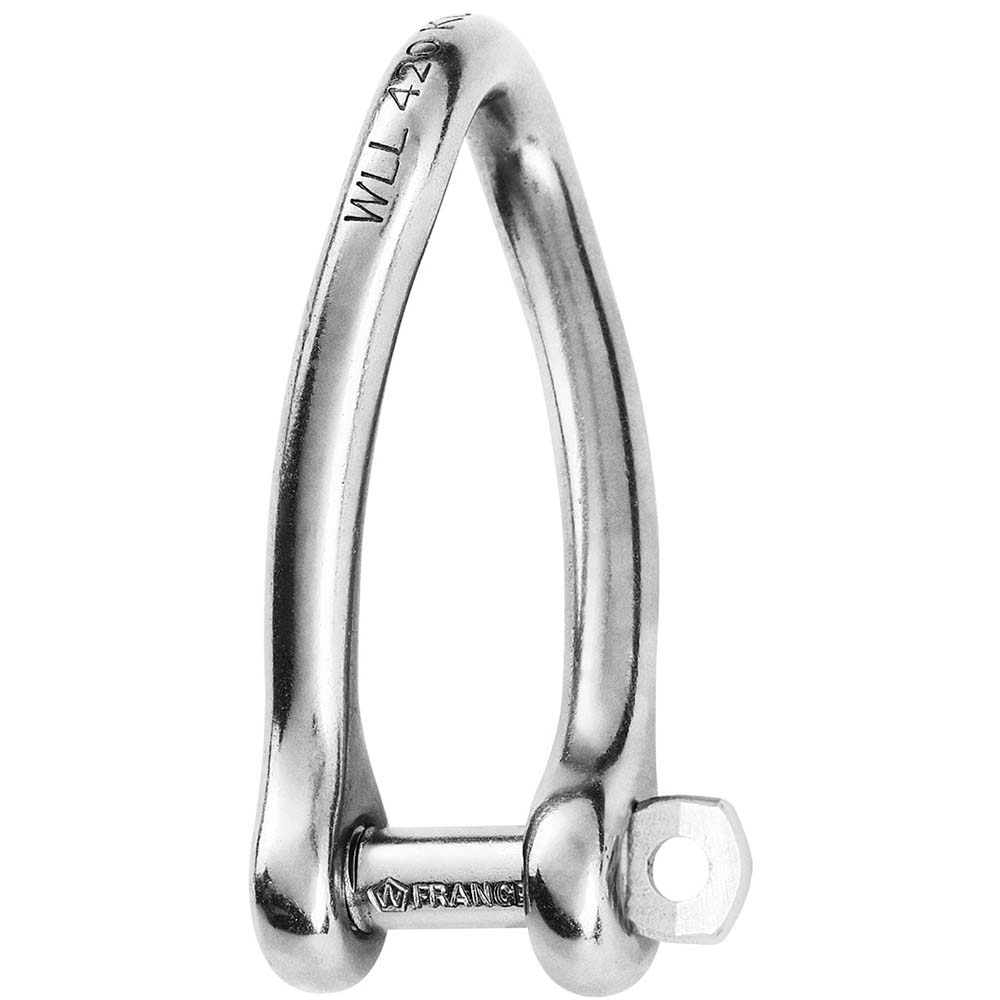

Captive Pin Twisted Shackle - Diameter 8mm - 5/16"
Features:
- Captive pin twisted shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loose due to vibrations
- Outstanding working and breaking loads
- Single-handed operation for more safety
- Part #1424 is not suitable for lifting applications
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- Breaking load (lb) 8150
- Weight (lb) 0.198

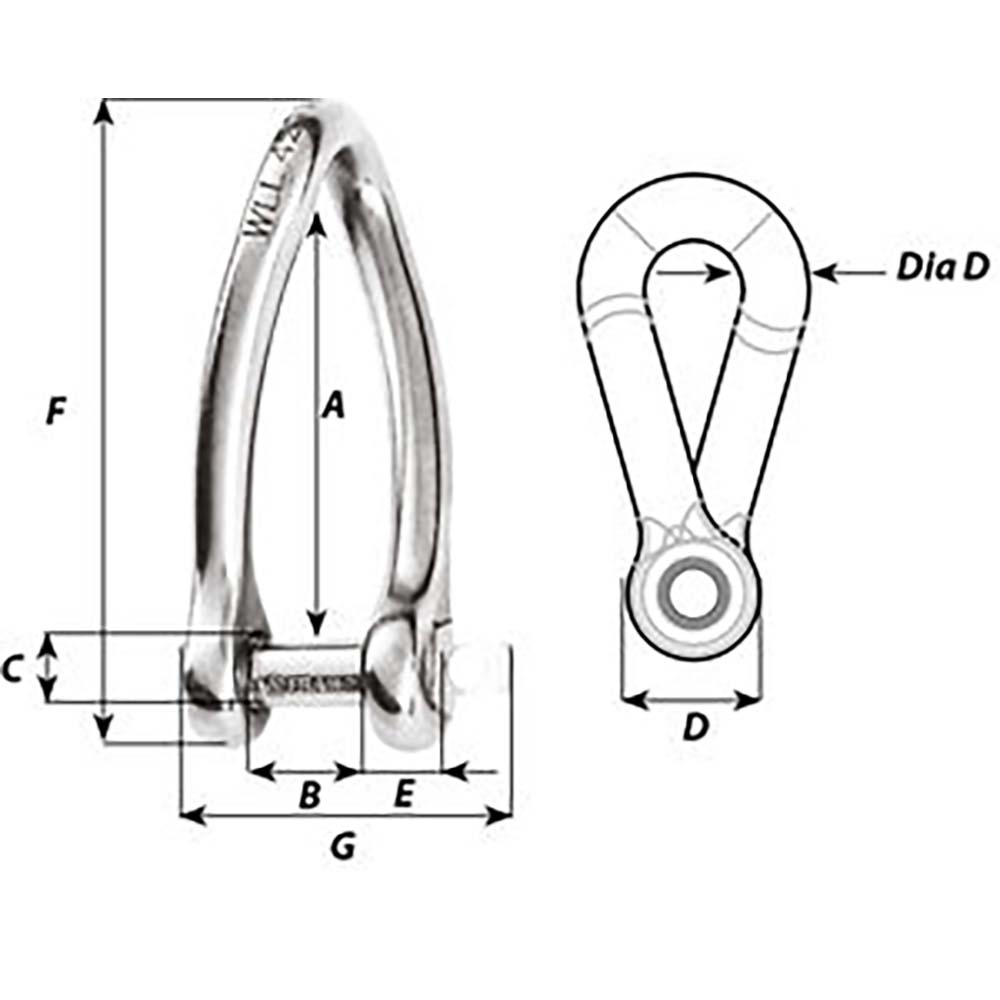

Dimensions (see 2nd image):
- A (inch) 2-21/64"
- B (inch) 5/8"
- C (inch) 23/64"
- D (inch) 45/64"
- D diameter (inch) 5/16"
- E (inch) 5/16"
- F (inch) 3-5/32"
- G (inch) 1-21/32"
