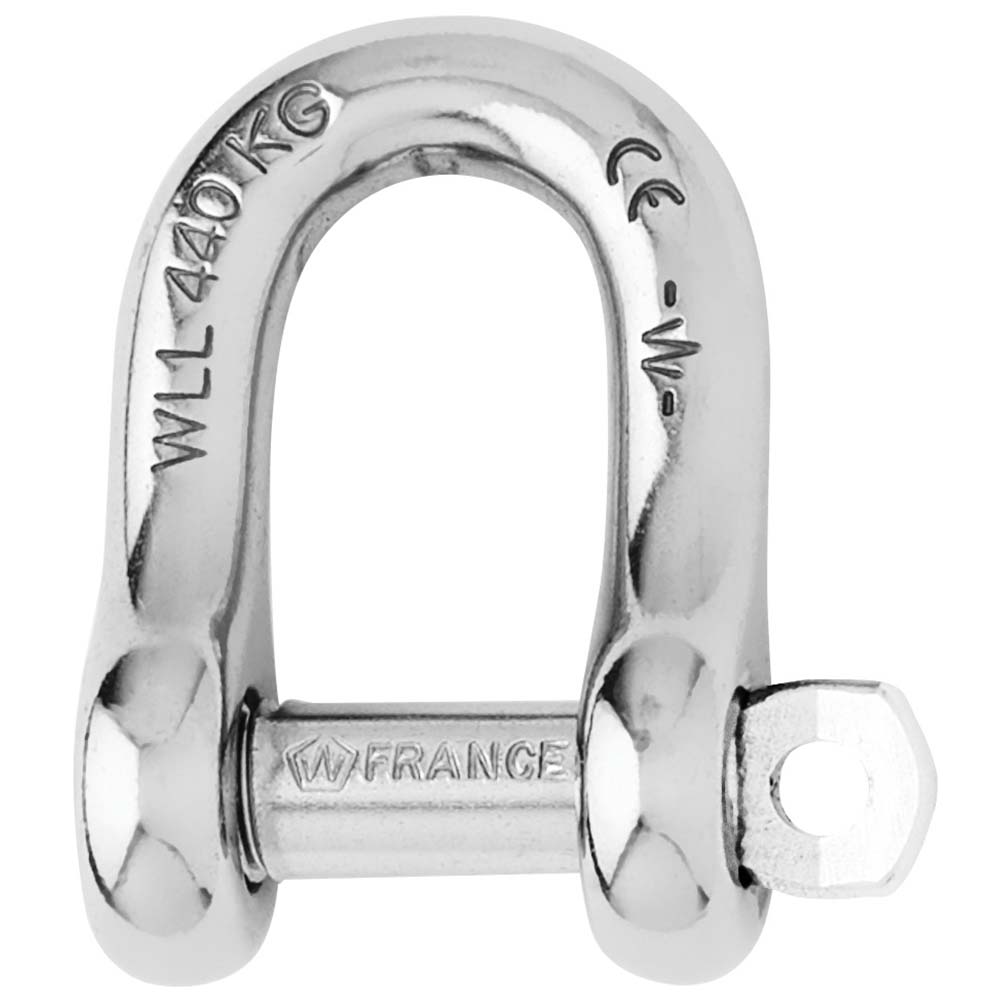

Wichard Captive Pin D Shackle - Diameter 10mm - 13/32"

Captive Pin D Shackle - Diameter 10mm - 13/32"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel


• The pin is connected to the body at all times even when opened


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads

Applications:

• Standard applications of shackle


• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 3350


• WLL (lb) 2290


• Breaking load (lb) 11460


• Weight (lb) 0.251

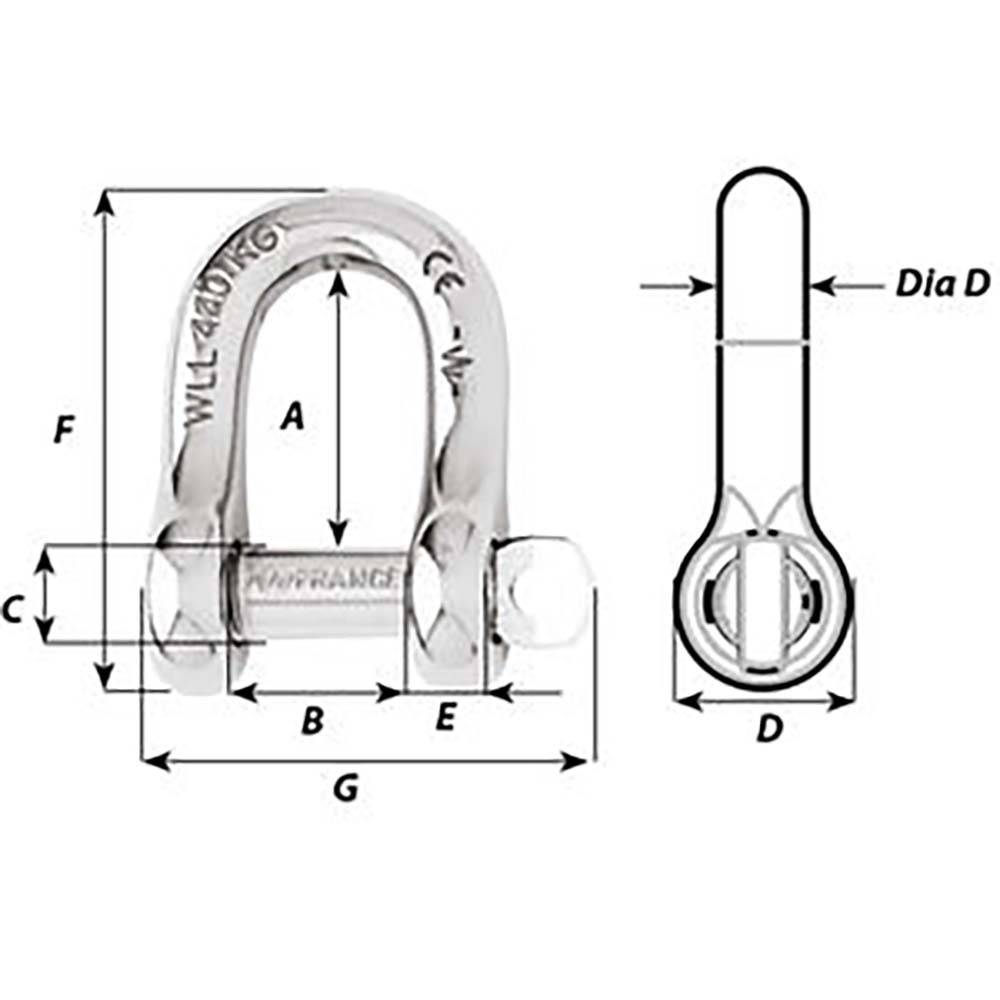

Dimensions (see 2nd image):

• A (inch) 1-19/64"


• B (inch) 25/32"


• C (inch) 7/16"


• D (inch) 53/64"


• D diameter (inch) 25/64"


• E (inch) 23/64"


• F (inch) 2-9/32"


• G (inch) 2-3/32"
