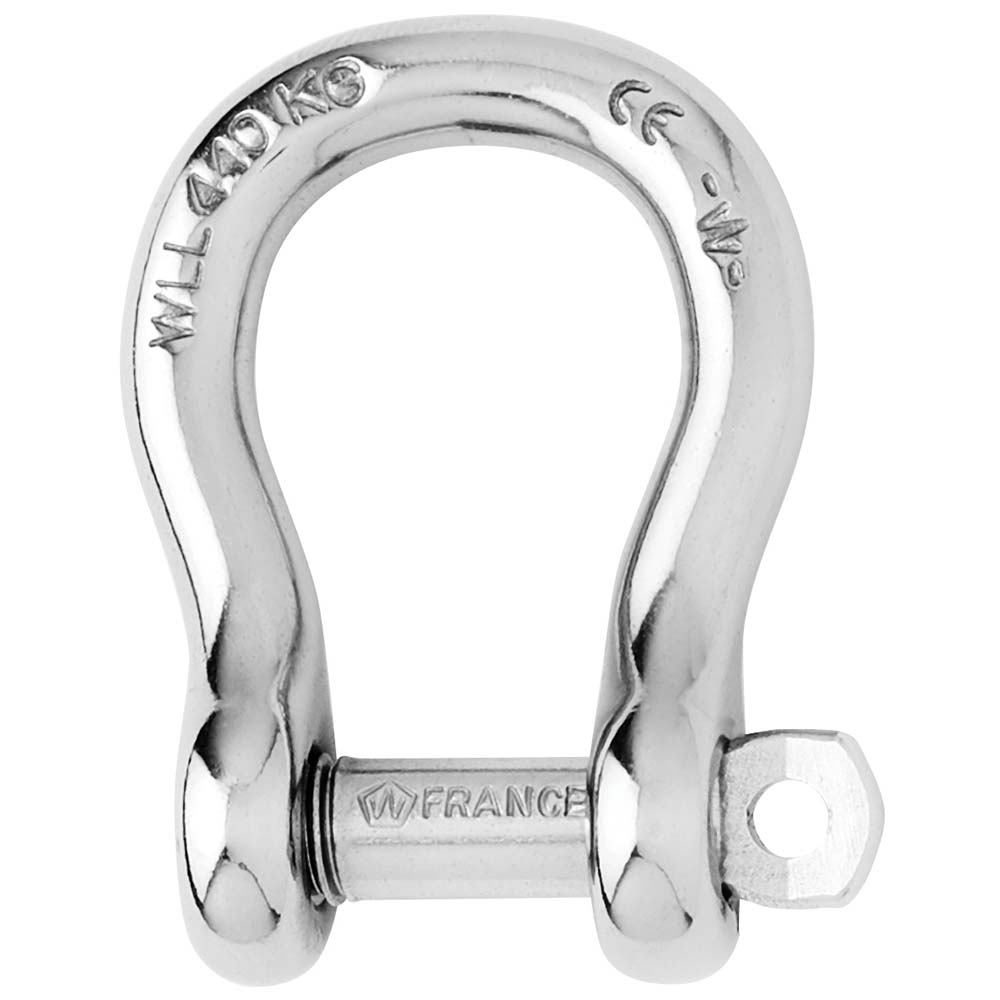

Wichard Captive Pin Bow Shackle - Diameter 6mm - 1/4" - 1443W

Captive Pin Bow Shackle - Diameter 6mm - 1/4"

Features:

• Captive pin bow shackle forged in grade 316L stainless steel


• The pin is connected to the body at all times even when opened


• The pin is locked into one of the indentations


• No risks of loosening due to vibrations


• Outstanding working and breaking loads


• Single handed operation for more safety


• WLL: only for industrial applications (lifting i.e…)


• CE marking and batch number

Applications:

• To be used when ample room is required


• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade


• Working load (lb) 1320


• WLL (lb) 970


• Breaking load (lb) 4850


• Weight (lb) 0.073

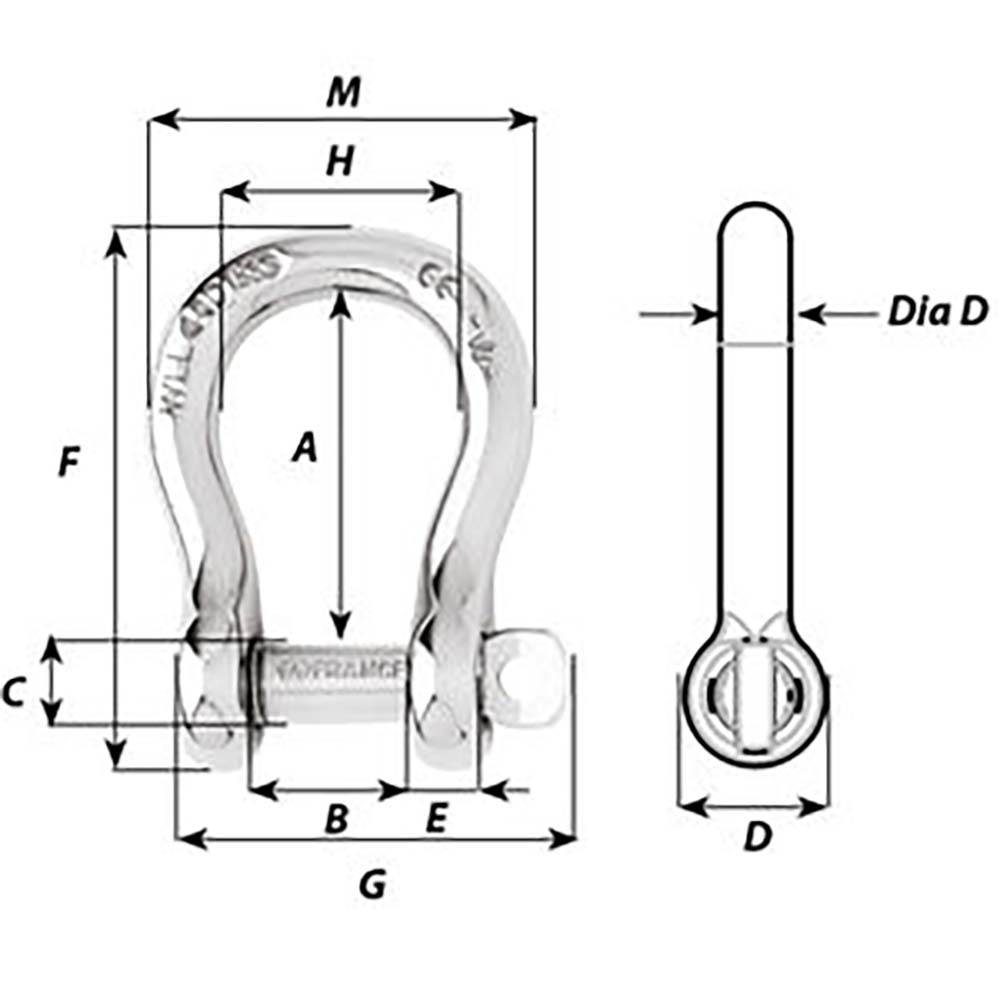

Dimensions (see 2nd image):

• A (inch) 1-1/16"


• B (inch) 15/32"


• C (inch) 9/32"


• D (inch) 35/64"


• D diameter (inch) 15/64"


• E (inch) 15/64"


• M (inch) 1-7/32"
