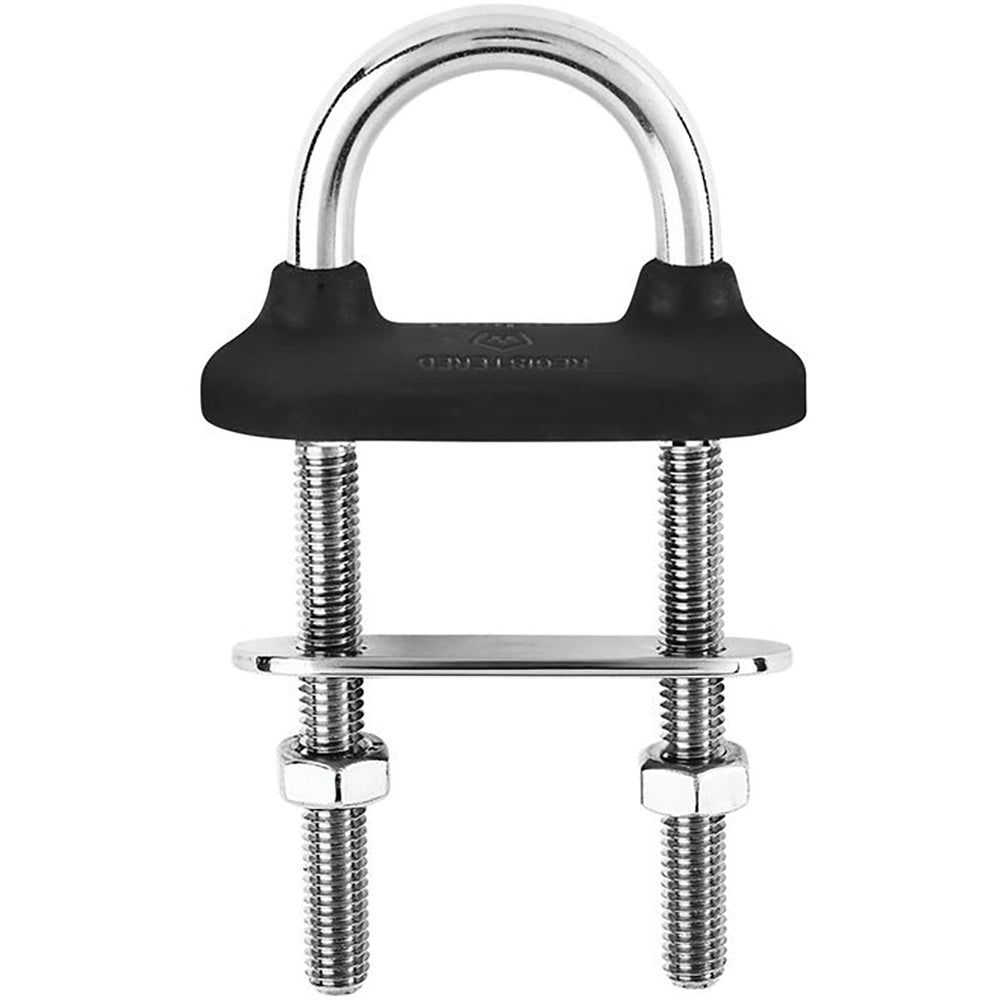

Wichard Black Watertight U-Bolt - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

Black Watertight U-Bolt - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

Features:

• Fully drop-forged product with high-quality stainless steel


• Outstanding working and breaking loads


• Complete water-tightness thanks to the resistant rubber collar (black color)


• Easy installation (no need to use a waterproof sealant)


• Delivered with bolts and counter-plate


• Max tightening torque: 18 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade


• Color: Black


• Working load: (lb) 5290 / (kg) 2400


• Breaking load: (lb) 10580 / (kg) 4800


• Weight: (lb) 0.271 / (g) 123

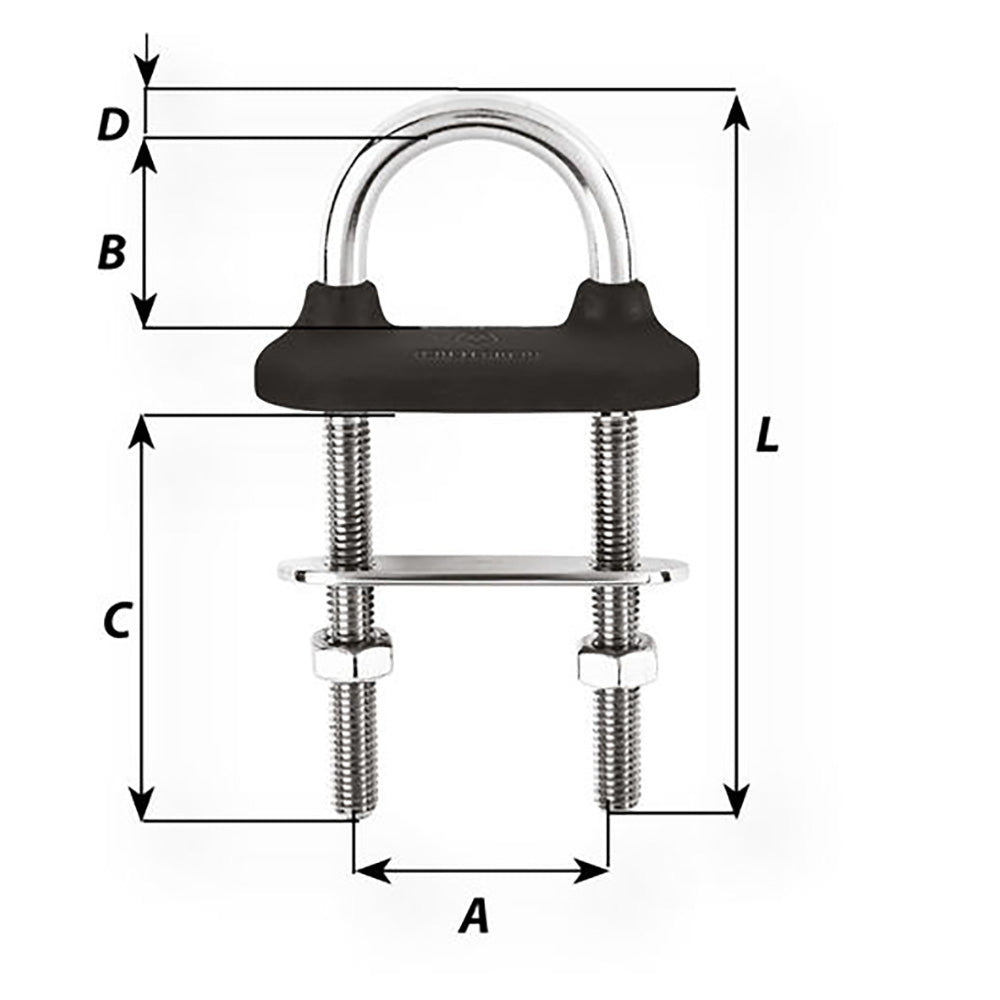

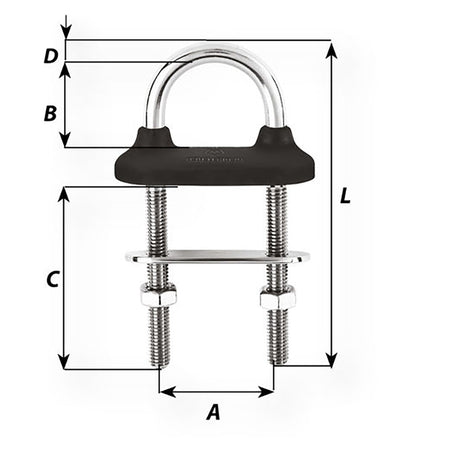

Dimensions:

• Length: (inch) 3 5/32" / (mm) 80


• A: (inch) 1 27/64" / (mm) 36


• B: (inch) 63/64" / (mm) 25


• C: (inch) 1 37/64" / (mm) 40


• D diameter: (inch) 5/16" / (mm) 8

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
