Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64" - 97737
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 97737
Truck Freight: No

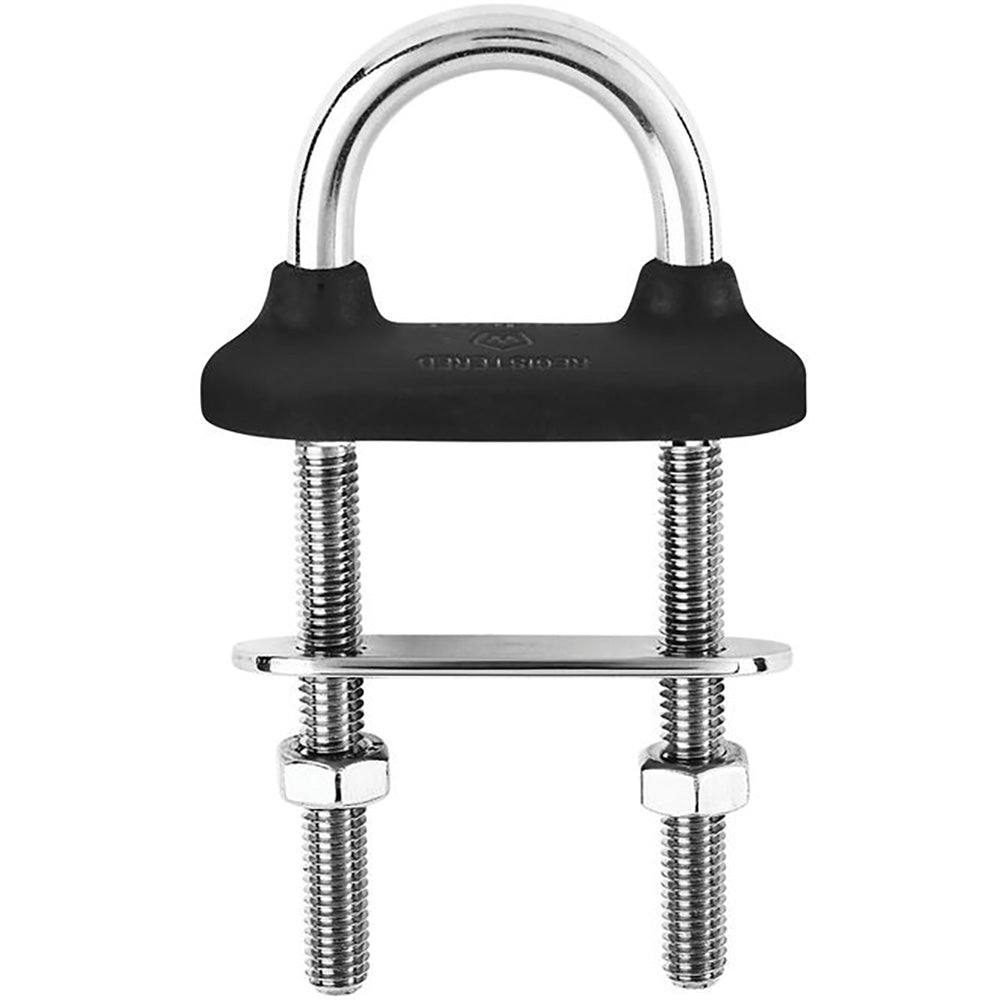

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"
Features:
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 36 nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Color: Black
- Working load: (lb) 7930 / (kg) 3600
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.525 / (g) 238

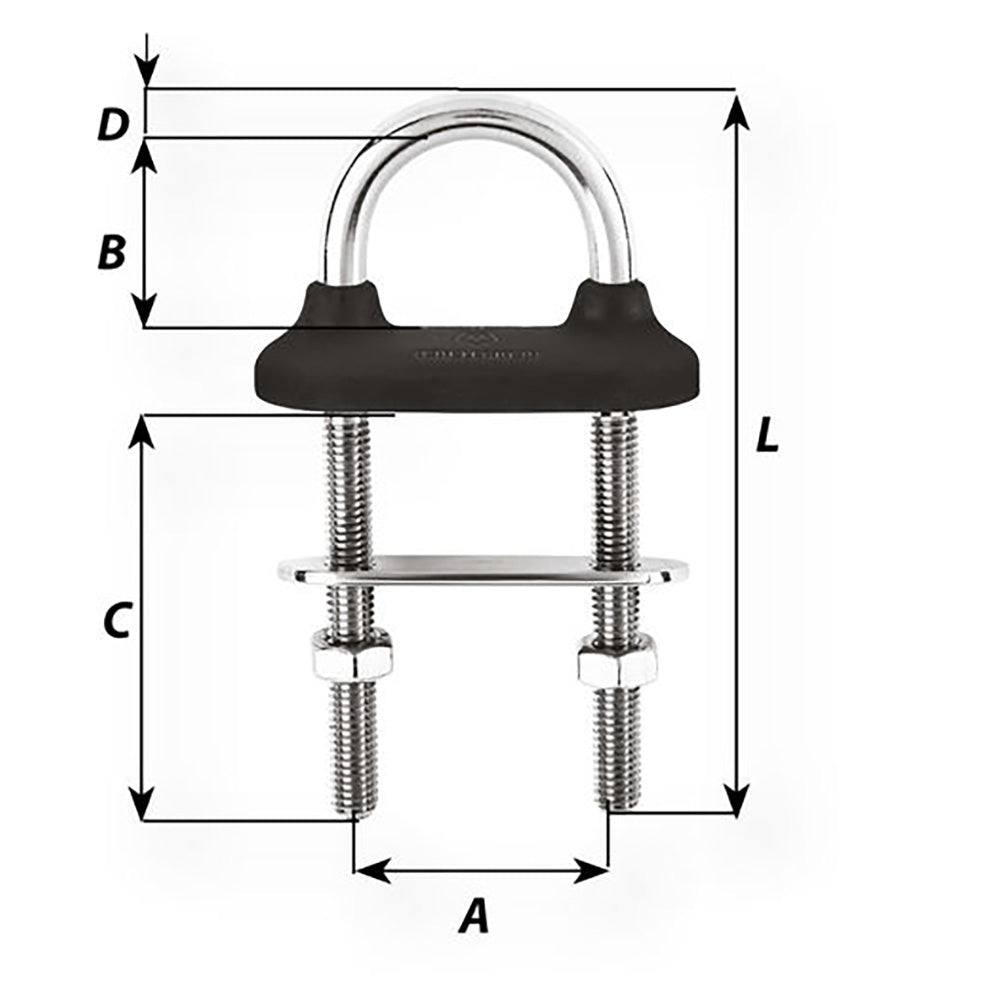

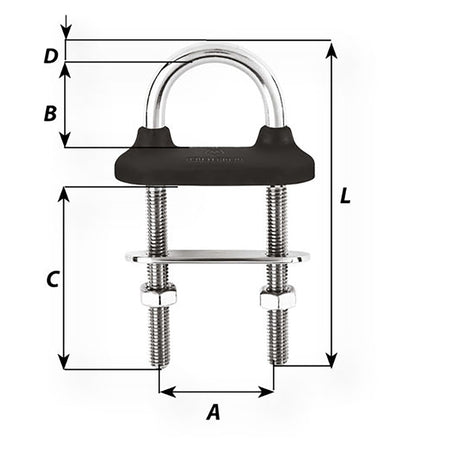

Dimensions:
- Length: (inch) 4 21/64" / (mm) 110
- A: (inch) 1 37/64" / (mm) 40
- B: (inch) 1 1/32" / (mm) 26
- C: (inch) 2 9/16" / (mm) 65
- D diameter: (inch) 25/64" / (mm) 10
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
