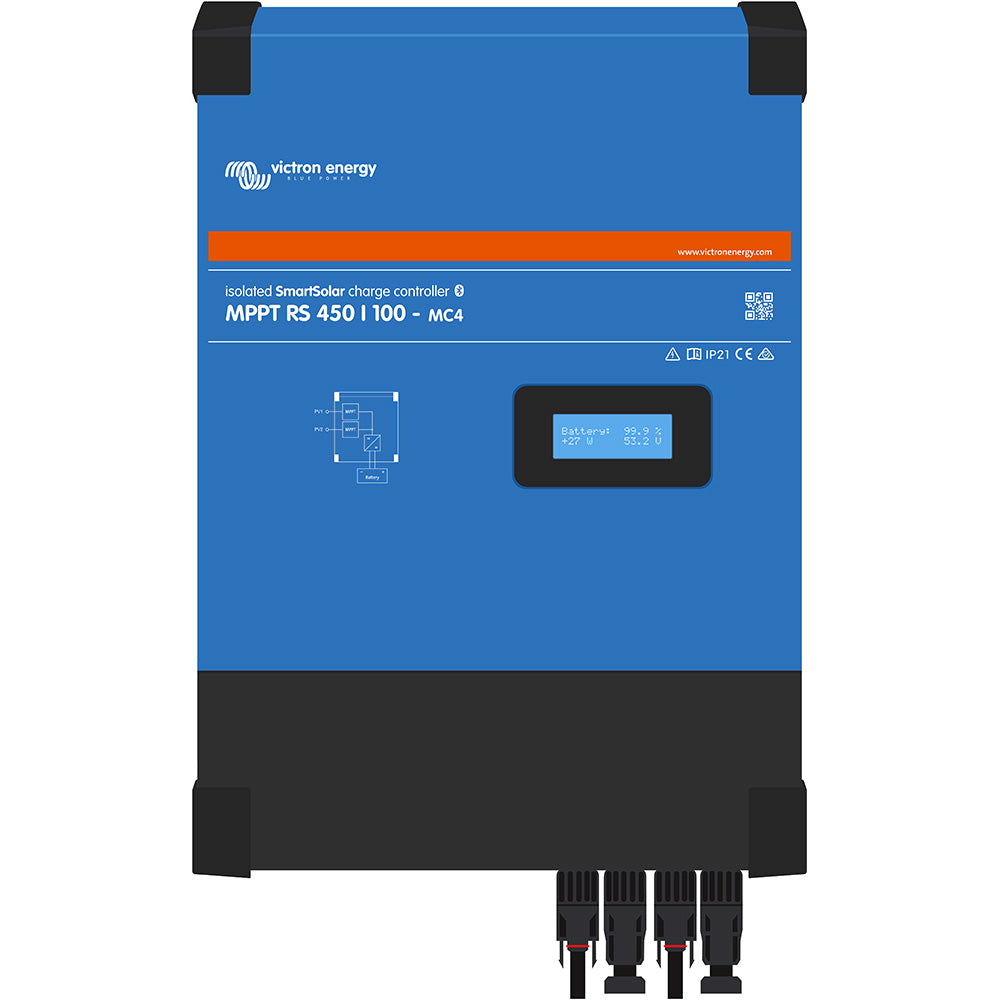

Victron Energy SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct Charge Controller

SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct 450/100

The SmartSolar MPPT RS solar charge controllers are Victrons solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid-connected battery systems.

In a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, a display screen, fully programmable battery charging parameters, and active cooling. The new metal case design and fully covered electrical connections improve safety and modernize the presentation in line with the latest suite of Victron products.

MPPT: Ultra Fast Maximum Power Point Tracking

The SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.

Setup monitor with VictronConnect

The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.

Daisy Chain Additional Units

The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS VE.Can MPPT units. The additional units are simply daisy chained to each other with an RJ45 cable.When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

SmartSolar Display

The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both arrays individually including instantaneous and total figures and unit status including any possible error codes.

I/O Connections

The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.

VictronConnect

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.

Please contact your dealer for any returns, repairs or support issues related to this product.
The Victron Energy SmartSolar MPPT 450/100-MC4 VE.Can VE.Direct Charge Controller is an advanced solar charge management solution designed specifically for systems with large series-connected PV arrays charging 48V DC battery banks. Perfect for off-grid and grid-connected applications, this model efficiently handles high-capacity battery systems, ensuring optimal solar energy utilization.

Featuring ultra-fast Maximum Power Point Tracking (MPPT), the SmartSolar controller operates with a wide input range of 65-450 VDC. Its fully programmable charging settings accommodate various battery chemistries, including lead-acid and lithium, making it a versatile choice for diverse energy needs. The Bluetooth connectivity provided by VictronConnect allows for easy setup, monitoring, and management, giving users real-time data about battery and PV voltage and currents.

Moreover, the SmartSolar controller includes daisy chaining capabilities for additional units, enhancing scalability for larger systems. With a user-friendly display providing critical operational insights and integrated remote monitoring options through the Victron Remote Management Portal (VRM), the Victron SmartSolar MPPT 450/100-MC4 ensures you stay connected to your energy management system, regardless of your location.

Features:
* Ultra Fast MPPT: Efficiently charges 48V battery banks with advanced tracking technology.: Ultra Fast MPPT: Efficiently charges 48V battery banks with advanced tracking technology.
* Wide Input Range: Operates with a solar voltage input of 65-450 VDC.: Wide Input Range: Operates with a solar voltage input of 65-450 VDC.
* Programmable Settings: Fully customizable charge parameters for various battery chemistries.: Programmable Settings: Fully customizable charge parameters for various battery chemistries.
* Bluetooth Connectivity: Easy setup and monitoring via the VictronConnect app.: Bluetooth Connectivity: Easy setup and monitoring via the VictronConnect app.
* Daisy Chain Capability: Connect multiple SmartSolar units for synchronized charging.: Daisy Chain Capability: Connect multiple SmartSolar units for synchronized charging.
* User-Friendly Display: Front panel display for real-time monitoring of battery status.: User-Friendly Display: Front panel display for real-time monitoring of battery status.
* Remote Monitoring: Access and manage your system through the Victron Remote Management Portal.: Remote Monitoring: Access and manage your system through the Victron Remote Management Portal.
