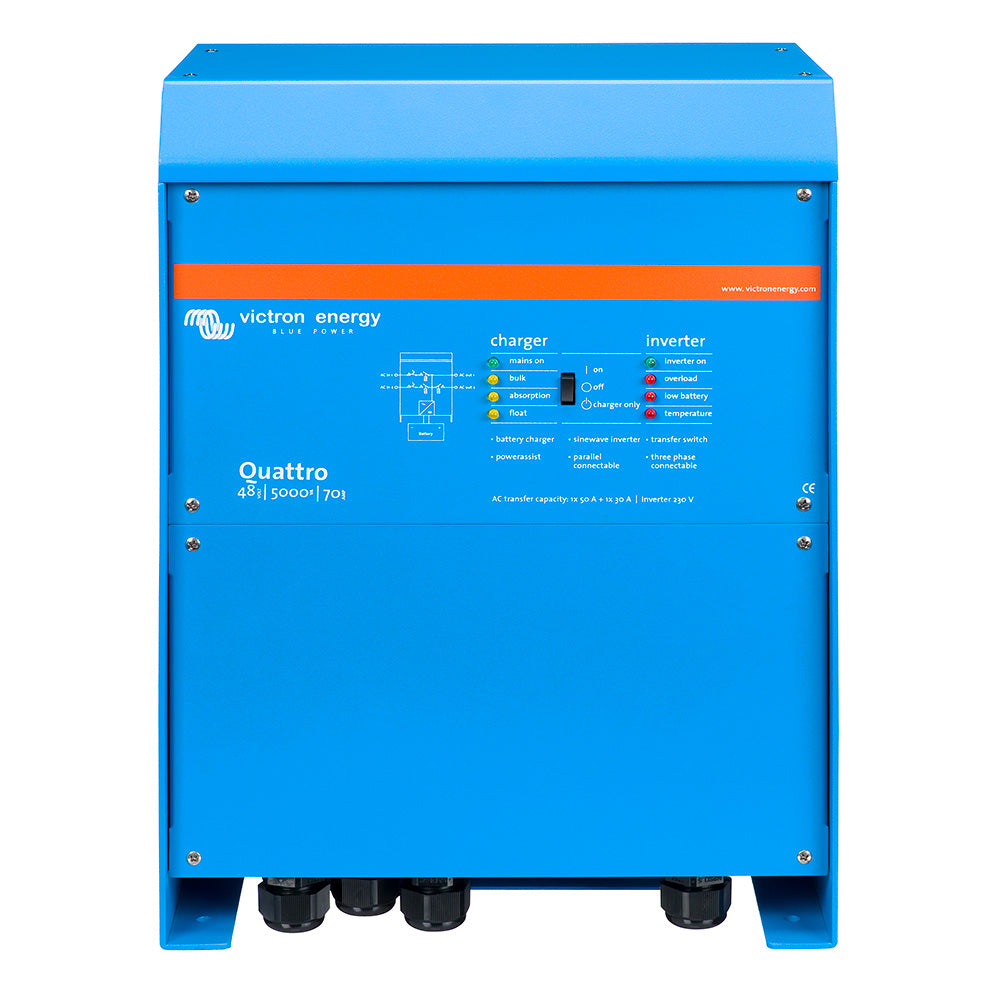

Victron Energy Quattro 48/5000/70 100/100 120V VE.Bus UL-Listed Inverter Charger - QUA482501102

Quattro 48/5000/70 100/100 120V VE.Bus UL-Listed

Multifunctional

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally, it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split-phase operation and parallel operation.

Two AC Inputs Two AC Outputs

The Quattro can be connected to two independent AC sources, for example, shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist Feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virutually Unlimited Power Thanks to Parallel Operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more.

Please contact your dealer for any returns, repairs or support issues related to this product.
The Victron Energy Quattro 48/5000/70 100/100 120V VE.Bus UL-Listed is an advanced inverter charger designed for seamless integration in various applications. This multifunctional unit features two AC inputs and outputs, allowing for the connection of multiple power sources, such as shore power and generators. With a true sine wave inverter and adaptive charging, it ensures reliable power for your essential devices. The automatic source switching capability guarantees that your loads continue to operate without interruption, even during power outages, with a response time of less than 20 milliseconds.

One of the standout features of the Quattro is its PowerAssist technology, which prevents overloads on limited AC sources. It intelligently reduces battery charging when necessary and can even boost output using stored battery power when needed. Additionally, the Quattro supports parallel operation, allowing up to six units to work together for enhanced power output. For monitoring and control, connect the Quattro to a GX device for remote access via the VRM app, enabling you to manage your system from anywhere in the world.

Features:
* Two AC inputs: Connect to multiple power sources for flexibility.: Two AC inputs: Connect to multiple power sources for flexibility.
* Automatic source switching: Ensures uninterrupted power to connected loads.: Automatic source switching: Ensures uninterrupted power to connected loads.
* True sine wave inverter: Provides clean power for sensitive electronics.: True sine wave inverter: Provides clean power for sensitive electronics.
* PowerAssist technology: Prevents overloads by managing power sources intelligently.: PowerAssist technology: Prevents overloads by managing power sources intelligently.
* Parallel operation: Up to 6 units can work together for increased power output.: Parallel operation: Up to 6 units can work together for increased power output.
* Remote monitoring and control: Access your system from anywhere using the VRM app.: Remote monitoring and control: Access your system from anywhere using the VRM app.
