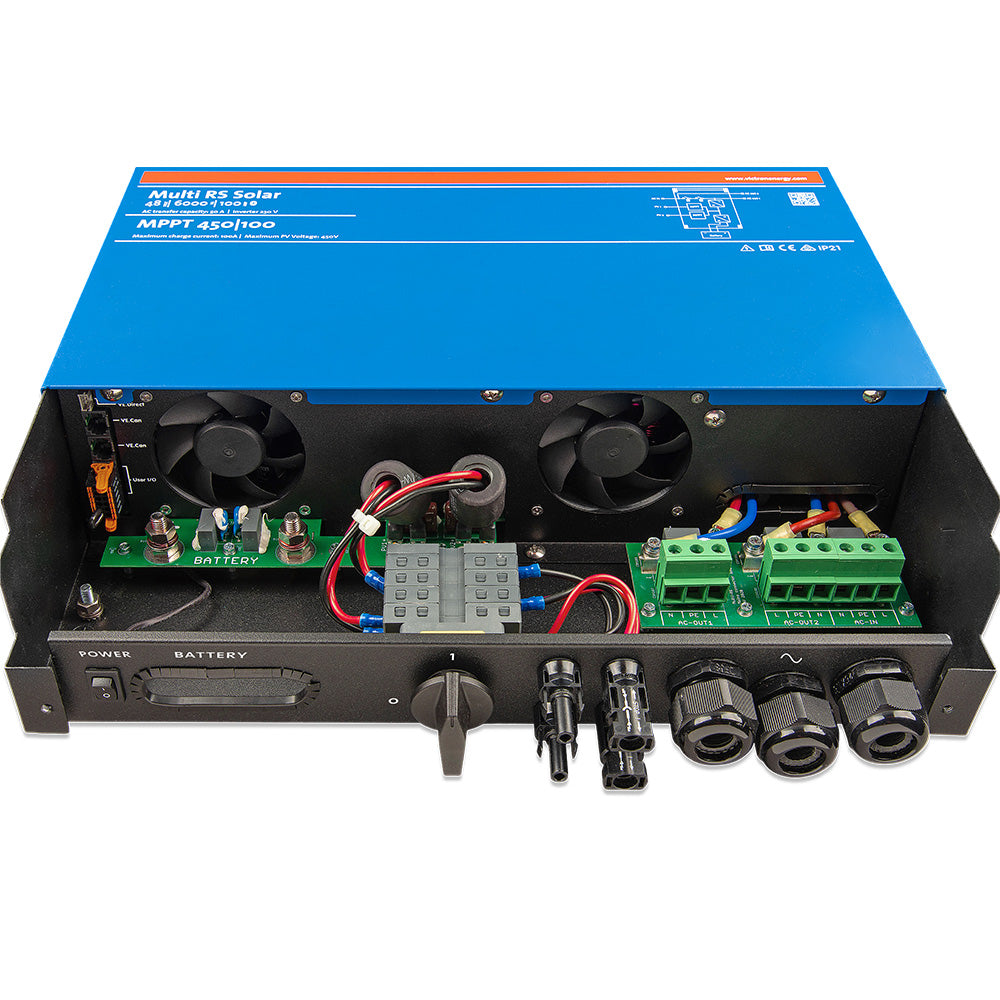

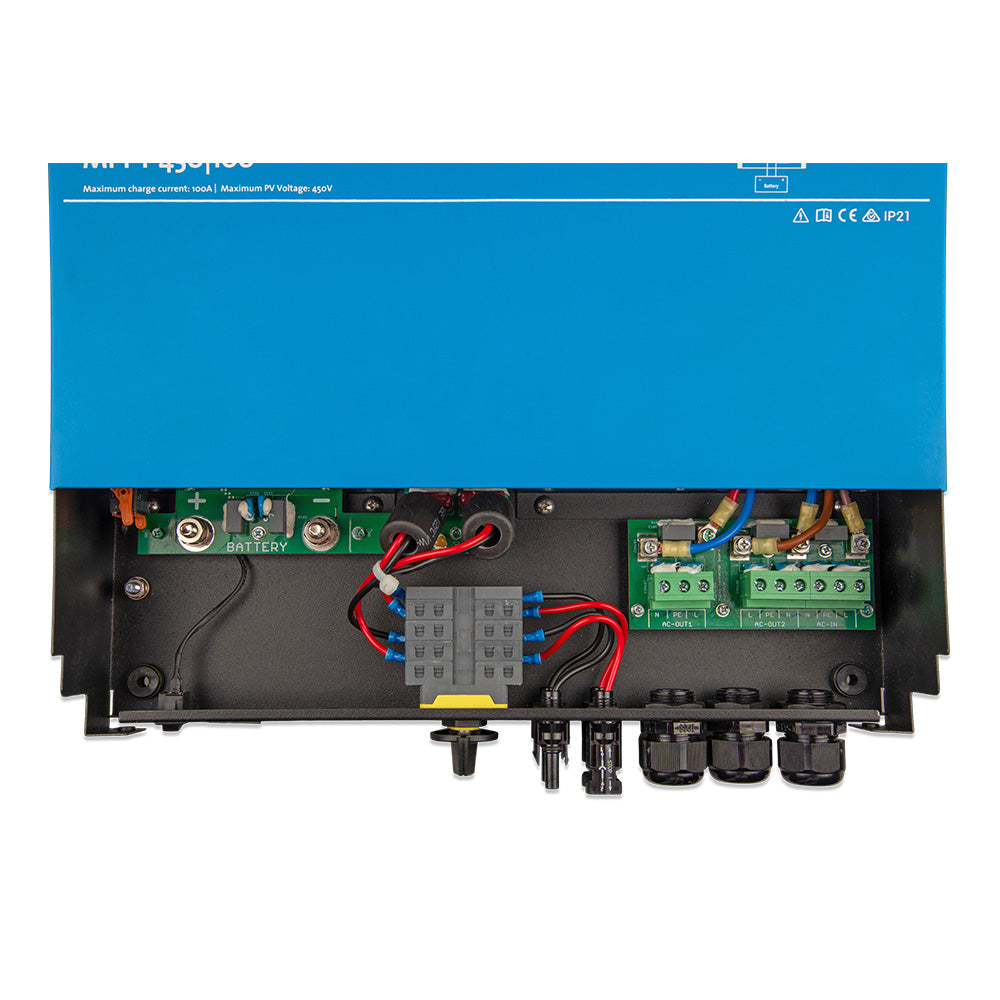

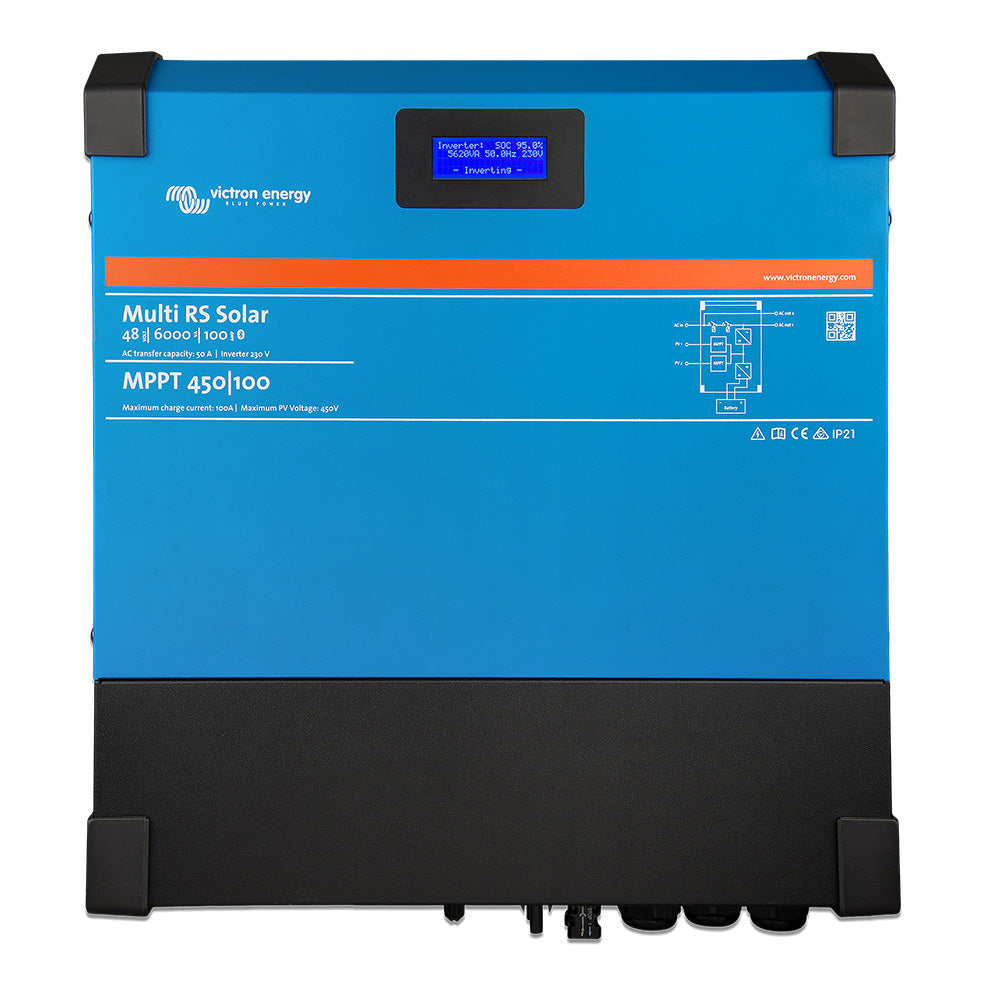

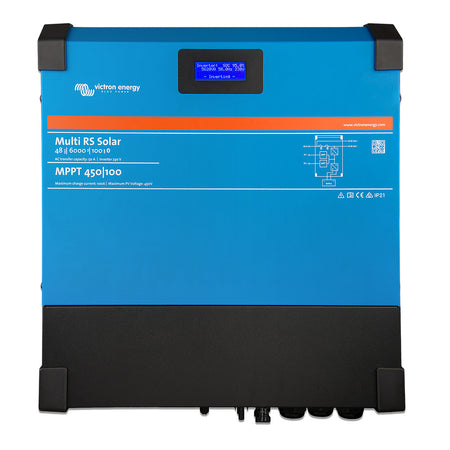

Victron Energy Multi RS Solar 48/6000 Inverter/Charger - 6kVA Hybrid Power Solution - PMR482602020

Multi RS Solar 48/6000 Inverter/Charger

The Multi RS Solar 48/6000 is a 48V 6kVA inverter/charger with two independent 3kWp PV 450V MPPT trackers for 6kWp total panel capacity. It supports direct grid connection without batteriesperfect for starting simple and adding storage later.

Updated in mid-2023 to a dual tracker design, its high-frequency technology delivers exceptional efficiency in a quiet, lightweight package with low standby power. Monitor all parameters via the integrated display or the VictronConnect app, which also provides historical trends, firmware updates, and configuration tools. Connect to a Cerbo GX for advanced ESS functions, like zero-export to block grid feed-in and backup mode to power critical loads during outages.

Operating Modes:

• Hybrid mode Stores excess solar energy in a battery, to be used during the night or periods of high demand. Supplies additional power from the battery when demand exceeds grid capacity.
• Backup mode Switches to backup mode during a grid outage.
• Off-grid mode Operates without a grid connection.
• Generator mode Controls the generator to minimize run hours. Supplies additional power from the battery when demand exceeds the capacity of the generator.
• PV Inverter mode Works as a PV inverter without a battery.

PowerControl PowerAssist - Boosting the capacity of the grid or a generator

A maximum grid or generator current can be set. The Multi RS will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).

PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Multi RS will compensate insufficient generator or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.

Display, Bluetooth VictronConnect app

The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device , using the VictronConnect app.

Extendable PV capacity, both AC -coupled DC -coupled

The integrated 6 kWp PV capacity can be extended by adding solar chargers to the system. Alternatively, the PV capacity can be extended by installing PV Inverters, of which the output power will be automatically controlled by the integrated frequency shift power control.

Communication Ports

VE.Can connection to a GX device for system monitoring, energy meter (11), data logging, and remote firmware updates.

VE.Direct connection to a GlobalLink 520 for remote data monitoring.

I/O Connections

Programmable relay, temperature sensor and voltage sensor connections

The Victron Energy Multi RS Solar 48/6000 Inverter/Charger is a versatile and efficient power management device designed for solar and backup power systems. With its 48V 6kVA inverter and two independent 3kWp PV MPPT trackers, it supports up to 6kWp of solar panel capacity, making it suitable for both small and expanding renewable energy setups. Its ability to connect directly to the grid without batteries allows for simple installations, with the option to add storage later for increased flexibility.

Updated in mid-2023 to feature a dual tracker design, this inverter/charger utilizes high-frequency technology to ensure exceptional efficiency while maintaining a quiet and lightweight profile. The integrated display provides real-time monitoring of battery, inverter, and solar parameters, which can also be accessed remotely via the VictronConnect app on Bluetooth-enabled devices. The system can be connected to a Cerbo GX for advanced energy management functions such as zero-export control and backup mode, enabling seamless integration into larger energy systems.

Operating modes include hybrid, backup, off-grid, generator, and PV inverter modes, offering a broad range of applications from storing excess solar energy for nighttime use to powering critical loads during outages. The PowerControl PowerAssist feature enhances system capacity by boosting power from the grid or generator with battery support, preventing overloads during peak demand periods. The system intelligently manages power flow, recharging batteries when surplus energy is available or during periods of low demand.

The inverter supports extendable PV capacity through both AC- and DC-coupled options, allowing system expansion by adding solar chargers or PV inverters. Communication ports include VE.Can for system monitoring via a GX device and energy meters, and VE.Direct for remote data logging with compatible devices. I/O connections such as programmable relays, temperature sensors, and voltage sensors provide further customization options, making the Multi RS suitable for a wide variety of solar and backup power applications.

Designed for reliable performance and ease of use, the Victron Multi RS Solar 48/6000 Inverter/Charger is an ideal solution for renewable energy enthusiasts and professionals seeking a robust, scalable, and efficient power management system. Whether used in off-grid, grid-tied, or hybrid configurations, this device ensures optimal energy utilization while providing advanced monitoring and control capabilities.

Features:

• Dual MPPT trackers with 3kWp each for a total of 6kWp solar capacity

• Supports direct grid connection without batteries, with optional storage expansion

• High-frequency technology ensures high efficiency and quiet operation

• Integrated display and Bluetooth connectivity via VictronConnect app for real-time monitoring

• Compatible with Cerbo GX for advanced energy management features

• Multiple operating modes including hybrid, backup, off-grid, generator, and PV inverter

• PowerControl PowerAssist boosts capacity from grid or generator, with intelligent power management

• Extendable PV capacity through AC- and DC-coupled solar chargers and inverters

• Communication ports include VE.Can and VE.Direct for system monitoring and data logging

• I/O connections for relays, temperature, and voltage sensors for system customization
