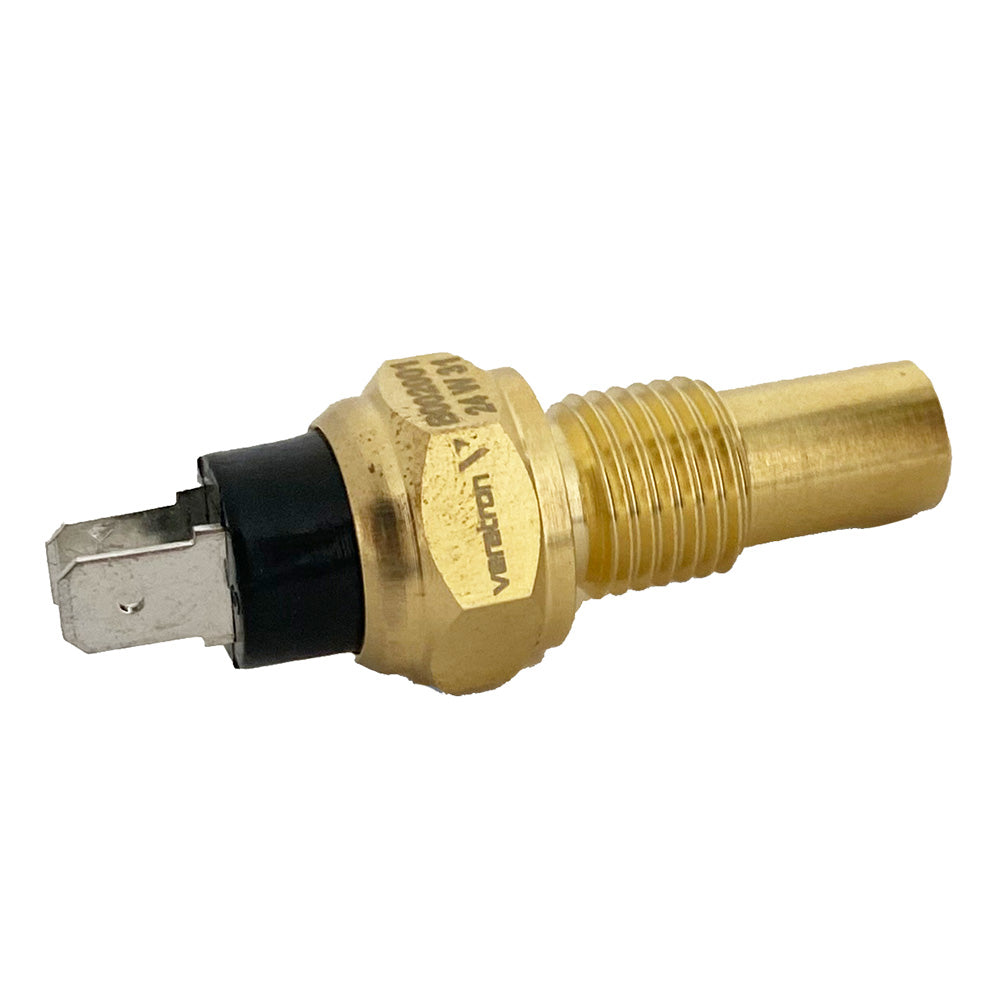

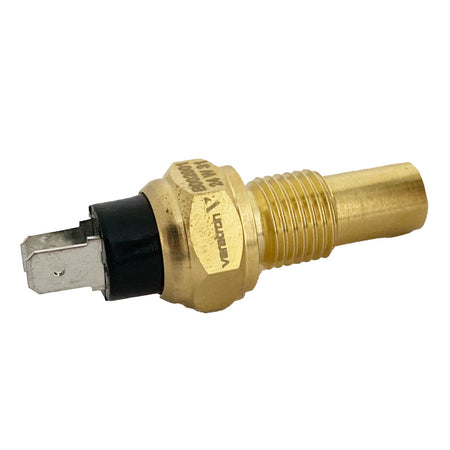

Veratron Water Temperature Sensor B002000 - 1/4"-18NPT Thread with 120?C Calibration

Water Temperature Sensor - 1/4"-18NPT Thread - 120°C Temp Range

These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.

Features:

• Function - Oil temperature, coolant temperature


• Length - 28.5mm (1-1/8")


• Thread - 1/4"-18NPT


• Calibration - 120°C


• Measurement Range - 120°C


• Output Signals - Resistive


• IP67


• Insulated ground pin

The Veratron Water Temperature Sensor, part number B002000, is designed for accurate and reliable temperature measurement in various applications. With a robust brass housing, this sensor provides exceptional durability and performance. It is equipped with a resistive output signal and an insulated ground pin, ensuring effective interfacing through metal plate connectors. Ideal for monitoring both oil and coolant temperatures, this sensor is suitable for a wide range of automotive and industrial uses.

Featuring a 1/4"-18NPT thread and a calibration temperature of 120?C, the Veratron Water Temperature Sensor is built to withstand demanding conditions. Its measurement capabilities extend up to 120?C, making it perfect for environments where precise temperature monitoring is crucial. The sensor also boasts an IP67 rating, providing protection against dust and water ingress, ensuring reliable operation in challenging environments.

Features:
* Function: Oil temperature, coolant temperature
* Thread: 1/4"-18NPT
* Calibration: 120?C
* Measurement Range: 120?C
* Output Signals: Resistive
* IP67: Dust and water ingress protection
* Insulated Ground Pin: Ensures safe operation
