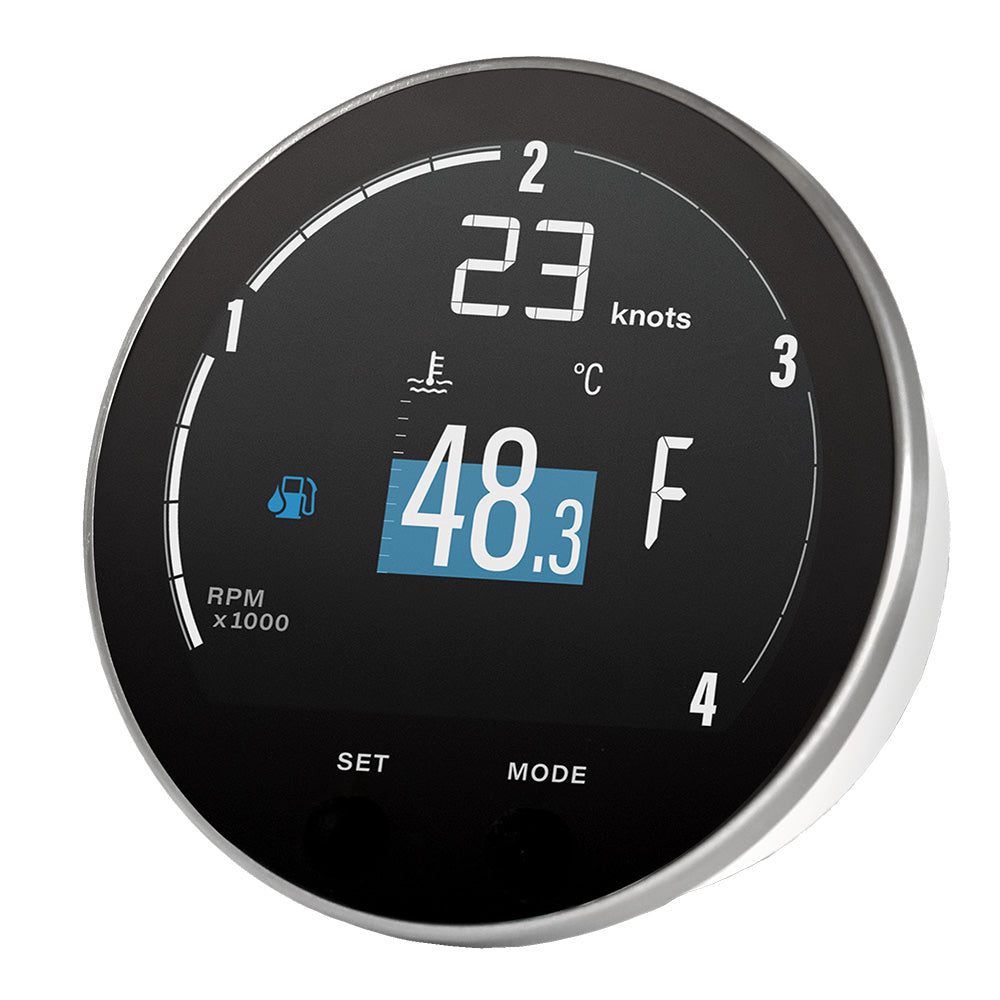

Veratron VMH-35D Diesel Multifunction Gauge - NMEA2000 Certified (B00171201)

85mm (3-3/8") VMH-35D Diesel Multifunction Gauge - NMEA2000 Certified (12-24V)

The VMH 35-D is the perfect standalone solution for monitoring your diesel engine. With a configurable dial scale of 3000 or 4000 RPM, the VMH 35-D is a compact display capable of showing a wide amount of data from your engine, battery, tank, and GPS.

Specific information about your diesel engine is provided with alarms, either received from the SAE J1939 bus or locally set through the embedded menu. Both 12V and 24V systems are supported, and EasyLink connectivity allows your dashboard to be expanded with additional VMH 14 satellite displays to keep your sensitive data under control.

The Veratron VMH 35 is designed with a mineral glass front that's optically bonded to the sun-readable hybrid display. A sleek brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors.

The embedded NMEA 2000 gateway distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters, saving the need for an additional external converter.

Powered by the latest microprocessor, the Veratron VMH 35 is blazingly fast. Yet even when set at full brightness, it draws a mere 170mA of power—a fraction of what comparably-sized TFT screens use.

Features:

• Analog Inputs - 2x resistive / 2x frequency


• Digital Inputs - 1x SAE J1939 - 1x NMEA 2000


• Nominal Voltage - 12/24v


• Operating Voltage - 9-32v


• Current Consumption - ≤150mA (normal mode)


• Protection Class - IP X7


• Dimensions - 4" (outer) 3-3/8" (mounting hole)


• Front Ring - Brushed stainless steel


• Front Lens - Mineral glass


• Display - Color IBN + 1.44" TFT optically bonded


• Connectors - Molex MX-150 12 pins / DeviceNet M12 5 pins


• NMEA 2000 certified with embedded analog gateway

The Veratron VMH-35D Diesel Multifunction Gauge is engineered for exceptional performance in monitoring diesel engines. This compact 85mm (3-3/8") gauge features a configurable dial scale of either 3000 or 4000 RPM, making it versatile for various applications. With the ability to display critical data from your engine, battery, and even GPS, the VMH-35D ensures you have all the information you need at a glance. Alarms can be set either locally or received via the SAE J1939 bus, providing peace of mind while you're on the water.

Designed for both 12V and 24V systems, the VMH-35D integrates easily into your marine setup. Its mineral glass front is optically bonded for maximum clarity and durability, complemented by a sleek brushed stainless steel bezel that fits seamlessly into any marine decor. Plus, with the embedded NMEA 2000 gateway, it simplifies connectivity to other devices, eliminating the need for an external converter. Power efficiency is a hallmark of this gauge, drawing only 170mA even at full brightness, ensuring minimal impact on your vessel's power supply.

Features:
* Configurable dial scale of 3000 or 4000 RPM
* Supports both 12V and 24V systems
* Embedded NMEA 2000 gateway for seamless sensor data distribution
* Alarm notifications from SAE J1939 bus or locally set
* Mineral glass front for enhanced durability and clarity
* Sleek brushed stainless steel bezel for modern aesthetic
* Low current consumption of only 170mA at full brightness
* EasyLink connectivity for expanding your dashboard with additional displays
