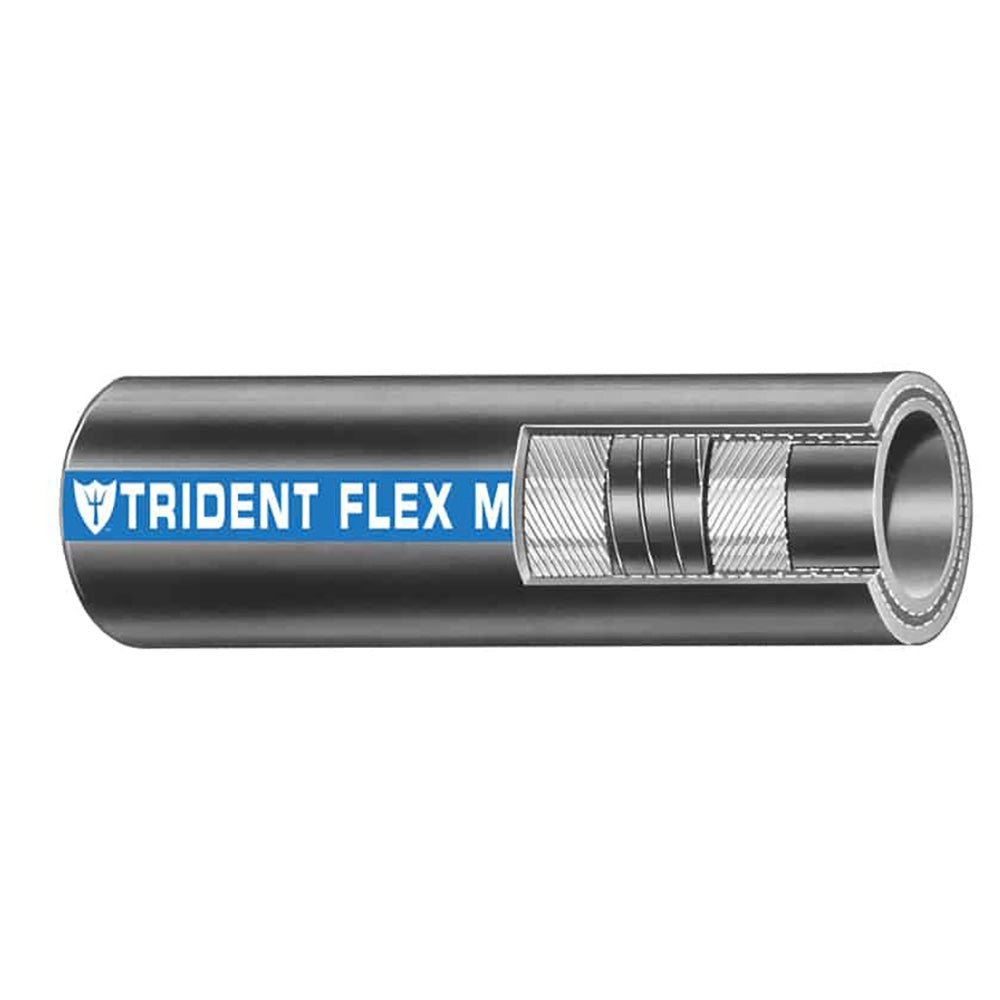

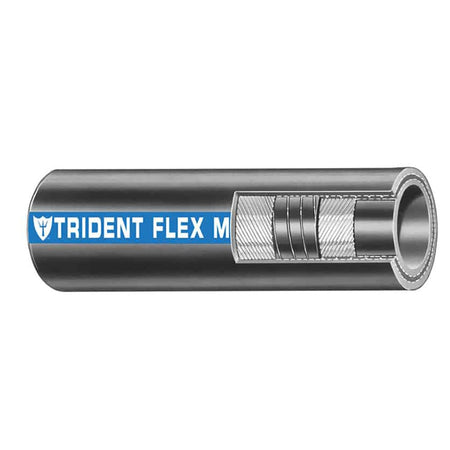

Trident Marine 1" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the Foot - 100-1006-FT

1" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the Foot

Trident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.

Features:

• Sold by the foot


• Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius


• Resists heat, ozone, exhaust, sani chemicals, panting, and collapse


• Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved

Application:

• Trident Flex wet exhaust hose for longer bent connections


• In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses

Construction:

• Tube & Cover: High temp EDPM rubber


• Color: Black with blue stripe


• Reinforcement: Multi-ply, high-tenacity polyester, steel helix


• Temperature Range: 250°F (121°C)

Specifications:

• Inner Diameter: (inch) 1" / (mm) 25.4


• Outer Diameter: (inch) 1.57" / (mm) 25


• Working Pressure: (Psi) 80 / (bar) 5.5


• Bend Radius: (inch) 1.3" / (mm) 33


• Weight: (Lb./50ft.) 30 / (Kg/m) 13.5

*Burst Pressure is 4 x Working Pressure
