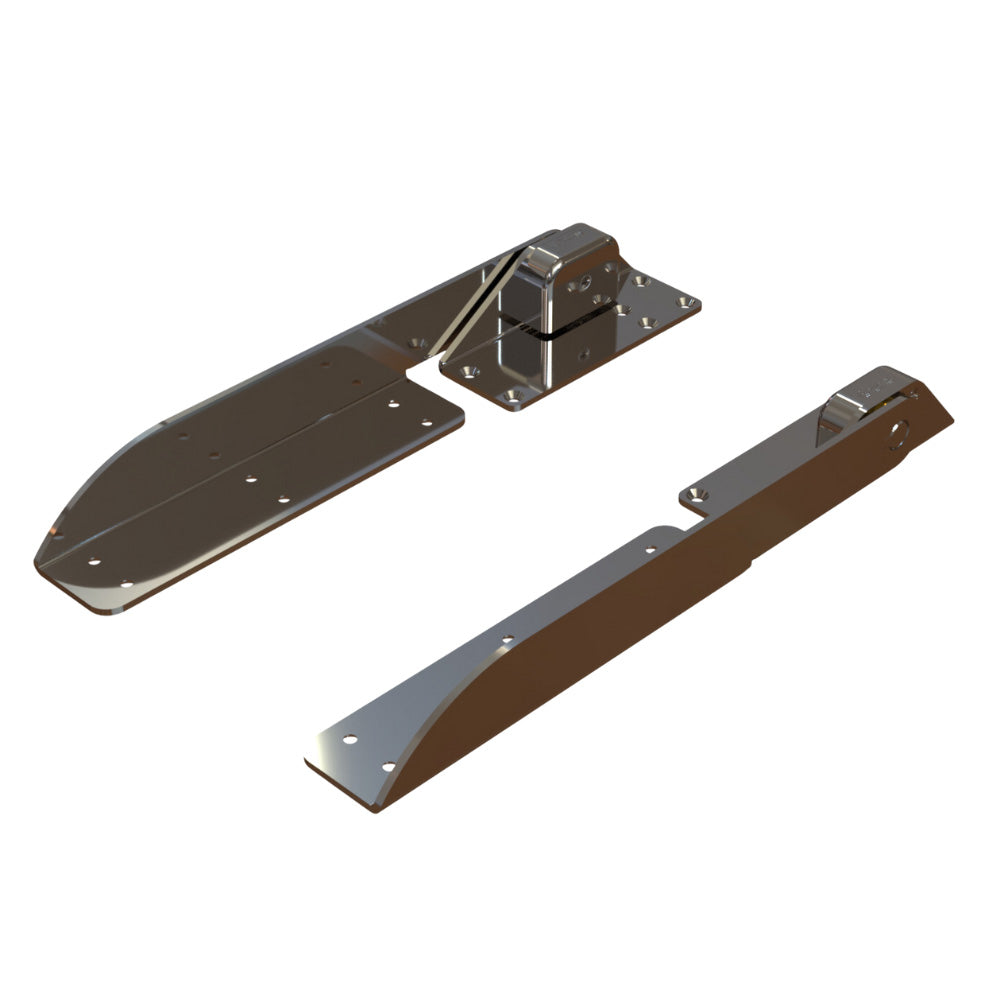

TACO Marine Command Ratchet Hinge - 18-1/2 inch Polished 316 Stainless Steel with Hard Stop - H25-0048

Command Ratchet Hinge - 18-1/2 - 316 Stainless Steel Polished with Hard Stop

Building upon the popularity of the H25-0023 heavy-duty Command Ratchet Hinge, this 18-1/2 hinge features a hard stop at 105 and is ideal for longer seat backs up to 22. This extended specialty hinge features one locking position at 62.5 and is perfect for sun pads, bolsters, and lounge backrests.

Features Benefits:

• Single- or double-seat capacity


• Can be used for seat backs up to 22 long


• Compatible with cushions up to 4 thick


• Mounts above the deck

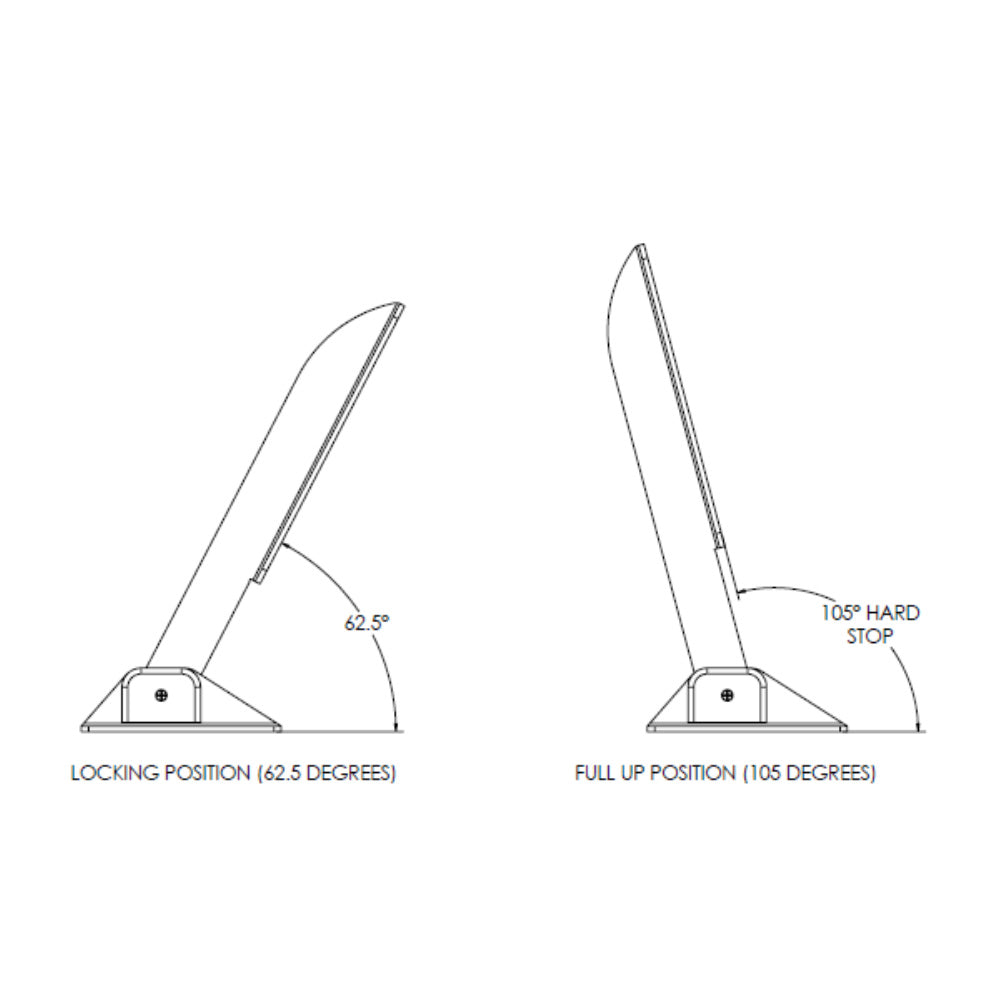

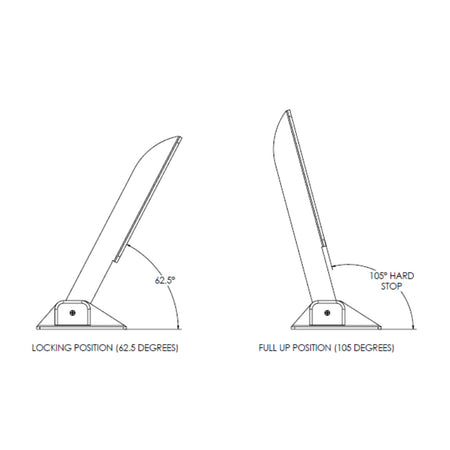

• One locking position at 62.5


• Hard stop at 105


• Polished Type-304 stainless steel


• Meets ABYC H-31 standards class B* application, 500 ft-lb. of torque load for a pair


• 500-hour salt fog test


• Sold in pairs

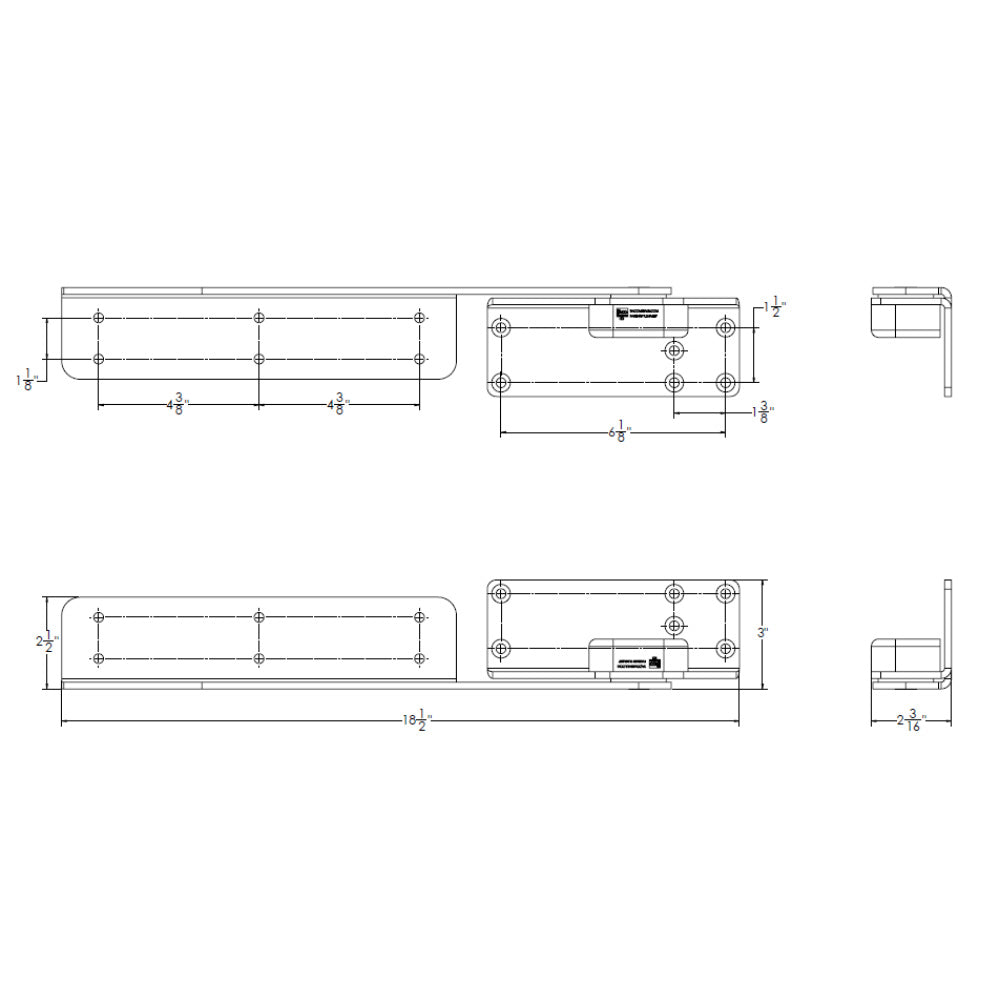

Specifications:

• Length: 18-1/2


• Width: 3


• 5-year limited warranty

The TACO Marine Command Ratchet Hinge model H25-0048 offers a durable and reliable solution for marine seat backrest applications. Crafted from polished Type-316 stainless steel, this hinge ensures resistance to corrosion and saltwater exposure, making it ideal for long-term marine use. Its 18-1/2-inch length provides ample support for longer seat backs up to 22 inches, enhancing comfort and stability on sun pads, bolsters, and lounge backrests. Designed for above-deck mounting, the hinge features a hard stop at 105 degrees and a locking position at 62.5 degrees, allowing users to secure their seat backs at desired angles for optimal comfort and safety. The hinge's versatility extends to compatibility with cushions up to 4 inches thick and single- or double-seat configurations, making it suitable for a range of boat seating arrangements. It is engineered to meet ABYC H-31 standards, with a torque load capacity of 500 ft-lb for a pair, ensuring robust performance under demanding conditions. The hinge has successfully passed a 500-hour salt fog test, demonstrating its resilience in harsh marine environments. Sold in pairs, this hinge is backed by a five-year limited warranty, providing peace of mind for marine builders and boat owners alike. Its sleek, polished finish adds a professional aesthetic to any vessel, combining functionality with style in a high-quality, marine-grade component.

Features:
* Polished Type-316 stainless steel construction for corrosion resistance
* Extended length supports seat backs up to 22 inches
* Hard stop at 105 degrees for controlled movement
* Locking position at 62.5 degrees to secure seat angles
* Mounts above the deck for streamlined installation
* Compatible with cushions up to 4 inches thick
* Suitable for single- or double-seat configurations
* Meets ABYC H-31 standards for marine safety
* 500 ft-lb torque load capacity for a pair
* Salt fog tested for 500 hours to ensure durability
* Sold in pairs with a 5-year limited warranty
