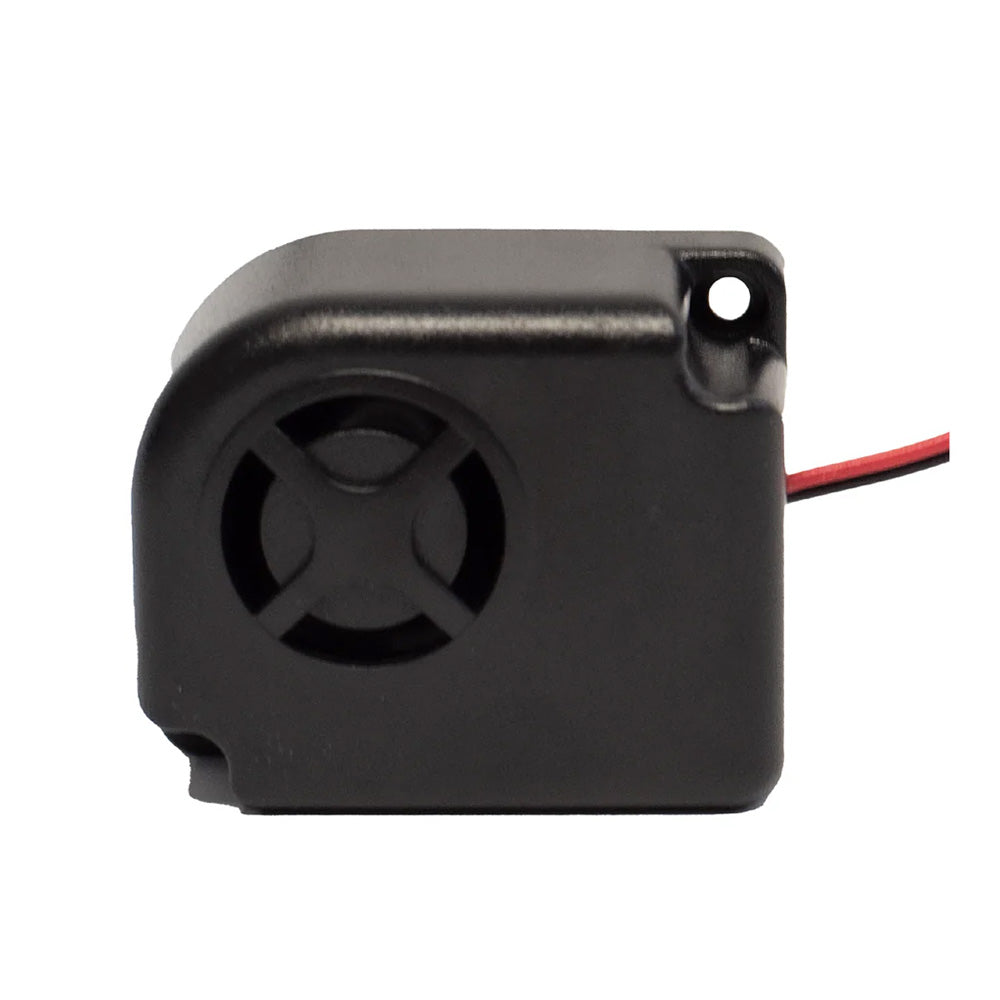

Siren Marine Mini Audible Alarm Part Number 6X885B611000 for Marine and Boat Safety - 6X885B611000

Mini Audible Alarm

The Siren Marine mini audible alarm produces a powerful sweeping siren sound. The alarm can be connected to one of the outputs on the Main Device, which will allow it to be turned on and off from the switching section of the Siren Connected Boat App. It can also sync to specific inputs in the Siren Connected Boat App.

Specifications:

• Resonant Frequency (KHz): 2.5 4.5
• Operating Voltage (Vdc): 5 15
• Rated Voltage (Vdc): 12
• Current Consumption (mA/max.): 150 at Rated Voltage
• Sound Pressure Level (dB/min.): 105 at 100cm at Rated Voltage
• Tone/Pulse Rate (Hz): Sweep
• Operating Temperature (C): -20 +70
• Storage Temperature (C): -30 +80
• Housing: ABS 777D plastic resin (Color: Black)
• Leading Wire: 24 AWG
• Weight (Gram): 26.2

The Siren Marine Mini Audible Alarm is a compact yet powerful device designed to enhance safety on boats and marine vessels. This alarm emits a strong sweeping siren sound with a sound pressure level of 105 dB at 100 centimeters, ensuring it can be heard clearly in various marine environments. It connects seamlessly to the Siren Connected Boat App, allowing users to turn the alarm on or off remotely through the app's switching section or sync it to specific inputs for automated alerts. Its versatile design and remote control capabilities make it an essential safety accessory for boat owners and marine operators seeking reliable audible alerts. The alarm operates on a voltage range of 5 to 15 VDC, with a rated voltage of 12 VDC, and consumes up to 150 mA at maximum. Its resonant frequency spans 2.5 to 4.5 kHz, producing a clear and penetrating sound that can be easily heard onboard. Constructed with durable ABS 777D plastic resin in black, the alarm is built to withstand harsh marine conditions, withstanding temperatures from -20°C to +70°C during operation and storage from -30°C to +80°C. The device features a 24 AWG leading wire, making installation straightforward, and weighs approximately 26 grams, ensuring it does not add significant weight or bulk to your vessel. Whether used as part of a comprehensive marine safety system or for specific alert needs, the Siren Marine Mini Audible Alarm provides a reliable, easy-to-integrate solution to keep your vessel and crew protected.

Features:

• Powerful sweeping siren sound with 105 dB output at 100cm for clear alerts

• Remote activation and deactivation via Siren Connected Boat App for convenience

• Syncs with specific inputs in the app for automated safety alerts

• Wide operating voltage range from 5 to 15 VDC, optimized at 12 VDC

• Durable ABS plastic housing designed for marine environments

• Lightweight at approximately 26 grams for easy installation and minimal impact

• Resonant frequency range of 2.5 to 4.5 kHz ensures penetrating alert sound

• Temperature resilience from -20°C to +70°C during operation and -30°C to +80°C during storage

• Simple wiring with 24 AWG leads for flexible installation
