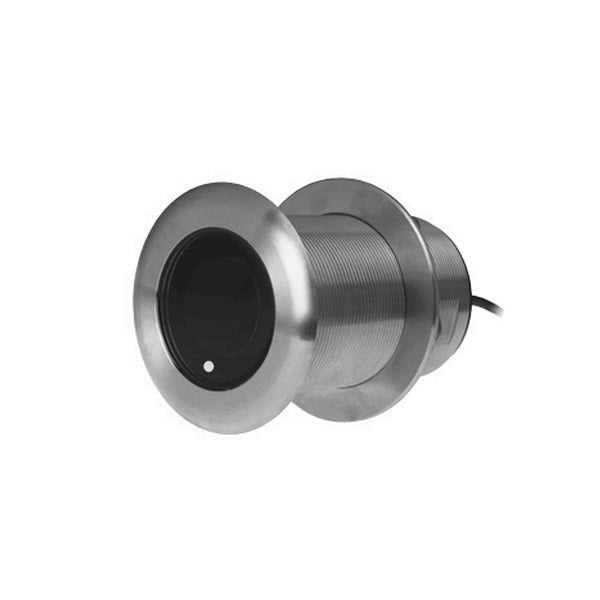

Simrad SS75M 12-Degree Tilt Thru-Hull Transducer with CHIRP and Temperature Sensor - 000-13909-001

Simrad SS75M 12DEG 80-130KHZ 9-PIN Thru Hull
The Simrad SS75M 12-Degree Tilt Thru-Hull Transducer (Model: 000-13909-001) offers advanced depth detection and water temperature measurement for reliable marine navigation. Designed with a bronze, stainless steel housing, this medium-frequency CHIRP transducer operates between 80kHz and 130kHz, providing exceptional target resolution and accurate bottom tracking in both shallow and deep waters. Its tilt mechanism, optimized for hull deadrise angles between 8° and 15°, ensures precise echo returns by compensating for vessel deadrise, resulting in more reliable depth readings and detailed underwater imaging. The transducer's low-profile design, with only 5mm protruding outside the hull, minimizes drag and maintains vessel performance. It features a 10-meter cable for flexible installation and easily connects to NSSevo3 systems, making it suitable for a wide range of marine applications.

Features:
* CHIRP Range: 80kHz-130kHz for detailed shallow water and accurate deep-water bottom tracking
* Tilt Angle: 12 degrees optimized for hull deadrise between 8 and 15 degrees
* Housing: Bronze, thru-hull design with low-profile 5mm protrusion to reduce drag
* Power Rating: 600 watts for reliable performance
* Temperature Sensor: Integrated for accurate water temperature readings
* Cable Length: 10 meters for flexible installation
* Compatibility: Easily connects to NSSevo3 systems
