Simrad NAC-3 Autopilot Core Pack - Precision-9, RF25N & N2k Starter Kit (Part Number: 000-13336-001)

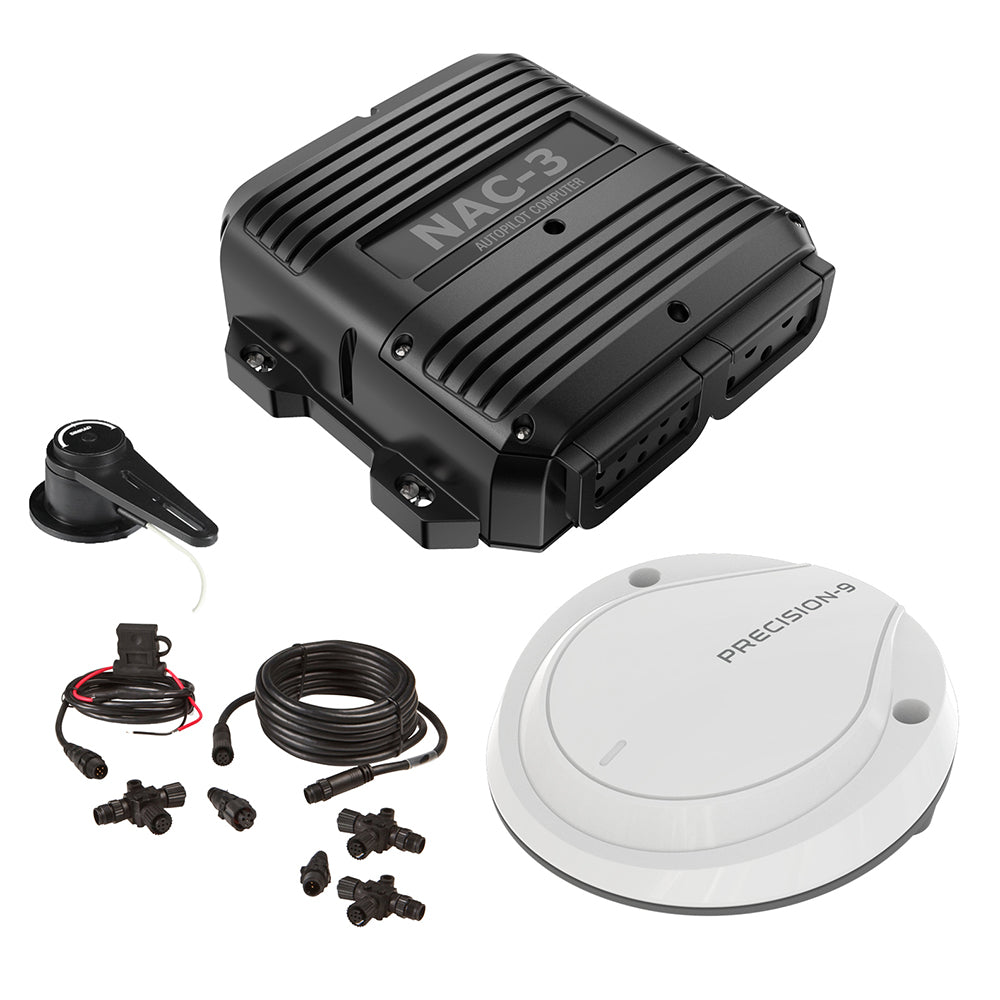

NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit

Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.

RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Specifications:

• Temperature, operation: 0 to +55°C




• Temperature, storage: -32 to +70°C




• Protection: IPx7




• Weight in Kg: 0.7kg, 1.6lbs




• Dimmension Max size, mm (length x width x height): 211 x 196 x 65.5mm, 8.31" x 7,72" x 2.58"




• Mounting: Bulkhead




• Construction: Plastic




• Color: Black




• Cable inlet: Grommet (Spare Incl)




• Local Power supply: 12/24 V DC +10-30%




• NMEA 2000 Load Equivalent number (50mA): 1




• Reversible motor control of rudder: Max continious load 30A, peak 50A for 1s




• On/off solenoid control of rudder: 12/24V DC, common, load range 10mA to 10A, off current <1mA




• Engage output for bypass/clutch: 12/24V DC, min 10mA, max 3A




• Rudder angle, frequency input: 15V, 1.4 to 5kHz, resol. 20Hz/x OR NMEA2000




• NFU port/stbd input and mode indicator output: External open/close contact, common ret, contact current max 30mA




• Mode input: External open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA




• External alarm output for buzzer/relay: Max 100mA, voltage level as local supply




• IEC 61162-1 input (NMEA0183 In): 1 ch




• IEC 61162-1 output (NMEA0183 Out): 1 ch




• IEC 61162-1 speed: 4.8 & 38.4 kbaud




• NMEA2000: Certified (pending)

The package also features the RF25N rudder feedback unit, which seamlessly connects via a 16.5-foot NMEA2000 Micro-C cable, providing reliable rudder position data. Additionally, the N2k Backbone Starter Kit streamlines your installation with essential components like the network power cable and connectors. Designed with durability in mind, the NAC-3 is built to withstand the rigors of marine environments, making it a trustworthy companion for your adventures on the water.

Features:
* NAC-3 Autopilot Computer: Designed for boats 33' or longer, capable of operating high-current hydraulic and mechanical drive units.
* Precision-9 Compass: Outputs Heading, Rate of Turn, roll, and pitch data over the NMEA 2000 network.
* RF25N Rudder Feedback Unit: Includes a transmission link and 16.5-foot NMEA2000 Micro-C cable for reliable rudder position feedback.
* N2k Backbone Starter Kit: Contains essential components for easy installation, including a power cable and T-connectors.
* Durable Construction: Built to withstand marine conditions with an IPx7 protection rating.
