Simrad NAC-2 VRF Core Pack - NAC-2 Autopilot Computer, Precision-9 Compass & N2k Starter Kit - 000-13337-001

NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter Kit

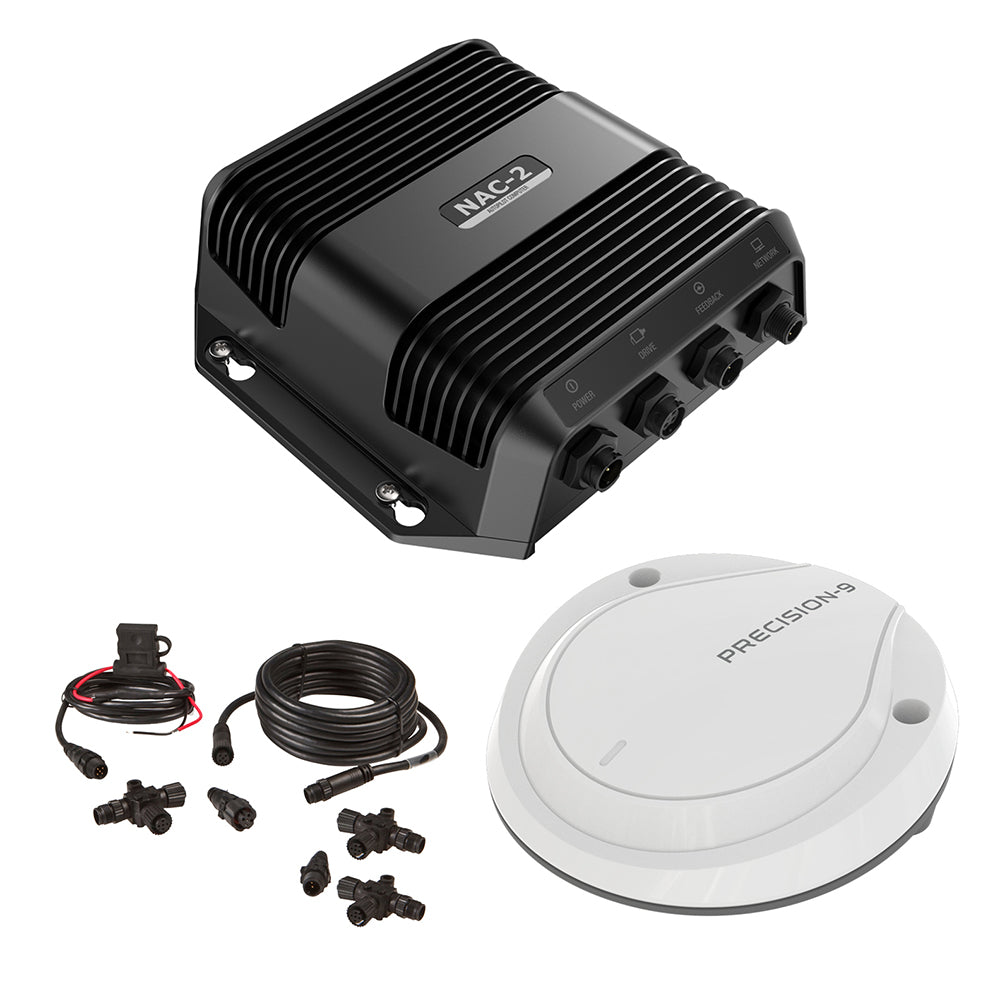

Comprising of the high-current NAC-2 autopilot computer, Precision-9 compass and N2k Starter Kit.

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

Precision-9 Compass

The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B & G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.

N2k Backbone Starter Kit

NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators.

Features:

• Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®


• Heading and ROT calculated using sensor data from 9 axes of rotation and motion


• Accurate and reliable solid-state sensor technology


• Heading accuracy of ±2° after calibration


• Easily adjustable mounting bracket allows bulkhead or up-mast installation


• IPX7 waterproof. Best in class.


• Simple installation with a single NMEA 2000® connection

  Specifications:


  • Operating temperature: -25°C to +55°C (13°F to 131°F)


  • Protection: Splashproof, IPx5


  • Weight: 0.6 kg (1.3 lbs)


  • Overall Dimensions: Width: 7.1" \ 180mm / Height: 2.2" \ 57mm


  • Power supply: 9-31.2 V DC


  • Load: 140 mA + drive unit load


  • Performance: Drive: 8 A cont., 16A for 1s


  • Network: 1xMicroC (NMEA2000)


  • Feedback: Variable voltage/resistive 0-5V


  • Drive output: To PUMP-1 or HELM-1


  • Power supply: 9-31.2 V DC


  • Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA


  • Clutch: 12/24V DC, min 10mA, max 3A





Precision-9 Specifications:

• Dimensions: H: 36mm (1.42"), W & D: 119mm (4.69")


• Weight: Module - 165g (5.8oz), Bracket - 130g (4.6oz)


• Supply and interface: 8-16 V via NMEA 2000


• Power consumption: 0.4 W


• NMEA 2000 Load Equivalence No. (LEN): 1


• NMEA 2000 ports (input/output): 1


• Calibration: Automatic (User Prompted)


• Repeatability: ± 1.0° (or better)


• Roll/Pitch range: ± 45°


• Heading accuracy: ± 2° after calibration


• Dynamic performance: with random excitation of ± 10° at max 1 Hz: |Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2°


• Environmental protection: IPx7


• Compass safe distance: 0.5M(1.7')


• Temperature range operation: -25 to +65°C (-13 to +149°F)


• Temperature range Storage: -30 to +70°C (-22 to +158°F)

The NAC-2 Autopilot Computer is your boat's intelligent control center, featuring advanced algorithms that allow for smooth sailing. It interfaces effortlessly with hydraulic or mechanical drive units, making it a versatile choice for different setups. The Precision-9 Compass enhances your navigation with accurate heading and rate-of-turn data, while the N2k Starter Kit simplifies the installation process with all necessary components included. Upgrade your boating experience with the Simrad NAC-2 VRF Core Pack today.

Features:
* High-current NAC-2 Autopilot Computer for reliable performance
* Precision-9 Compass with accurate heading and rate-of-turn output
* Complete N2k Backbone Starter Kit for easy installation
* Robust design suitable for boats up to 33 feet in length
* IPX7 waterproof rating for enhanced durability in marine environments
* Simple NMEA 2000 connection for streamlined setup
