Shockwave Seats S5-SS Stainless Steel Suspension Base for Marine Use - SW-09108

S5-SS Suspension Base - Stainless Steel

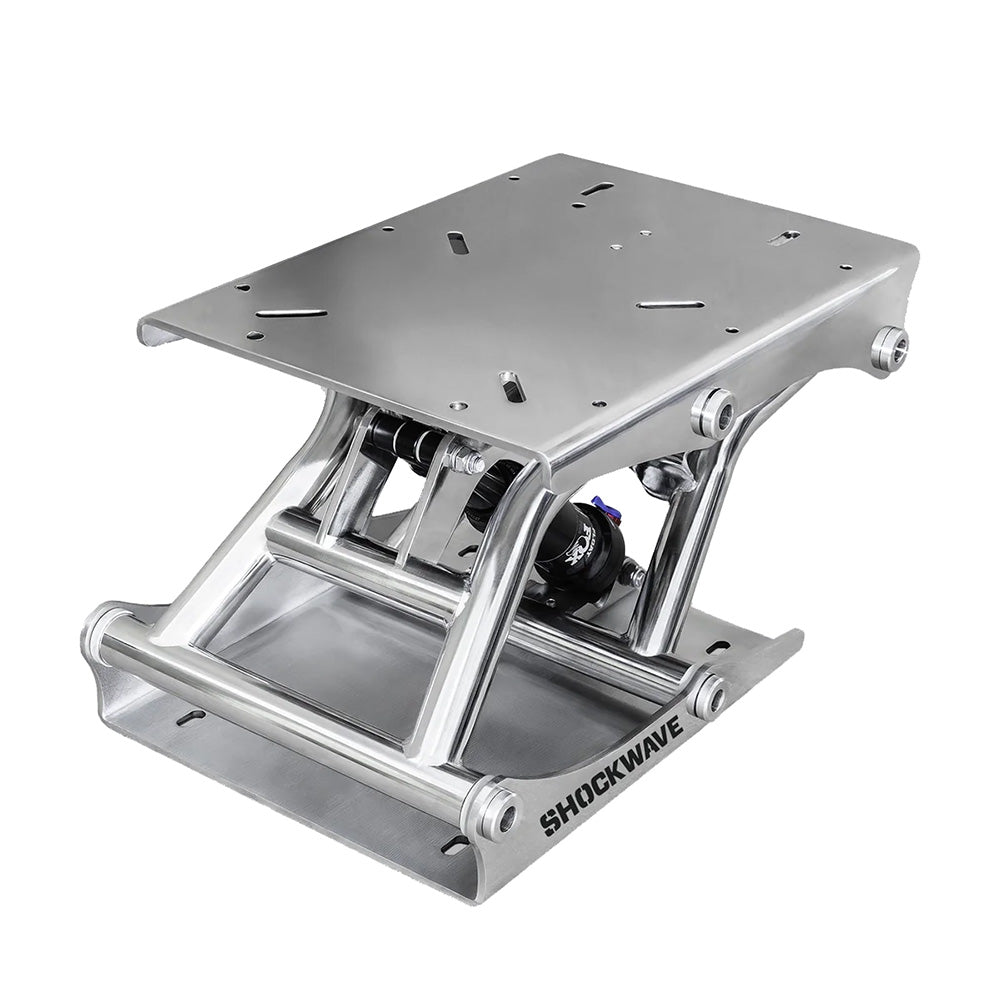

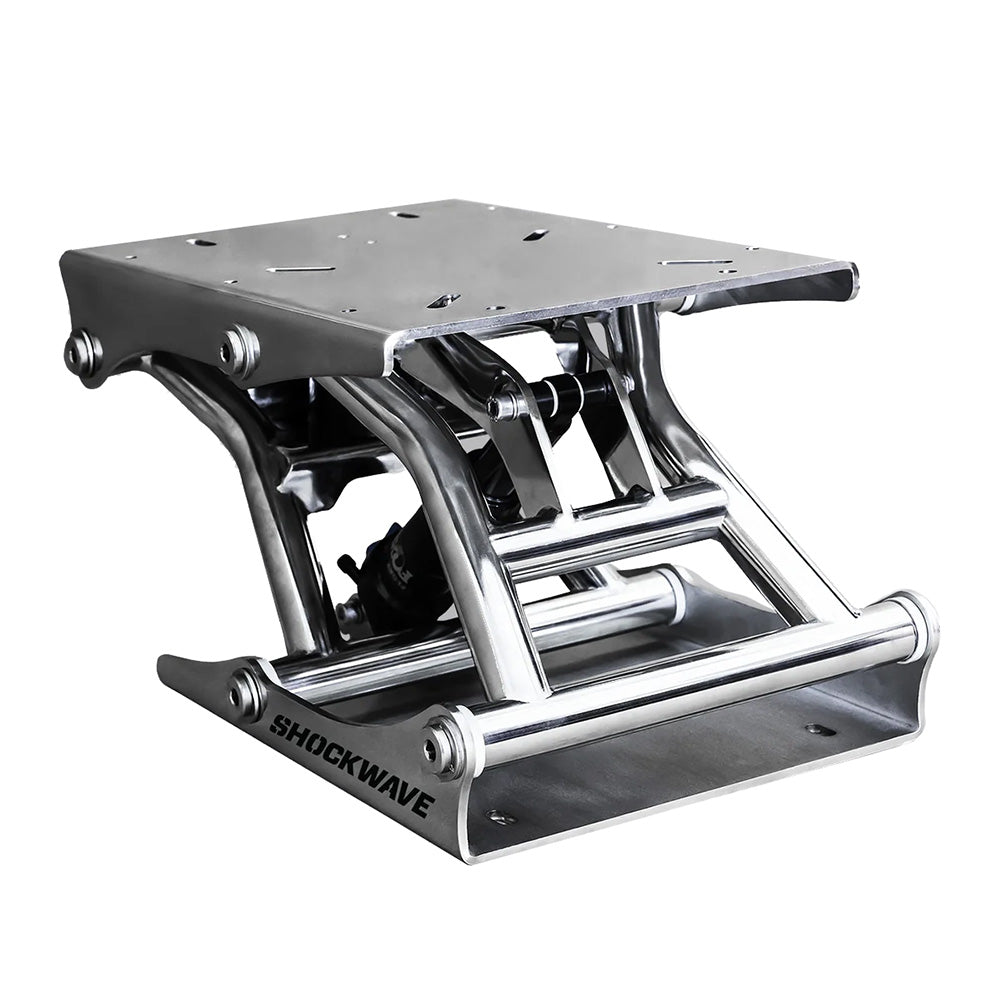

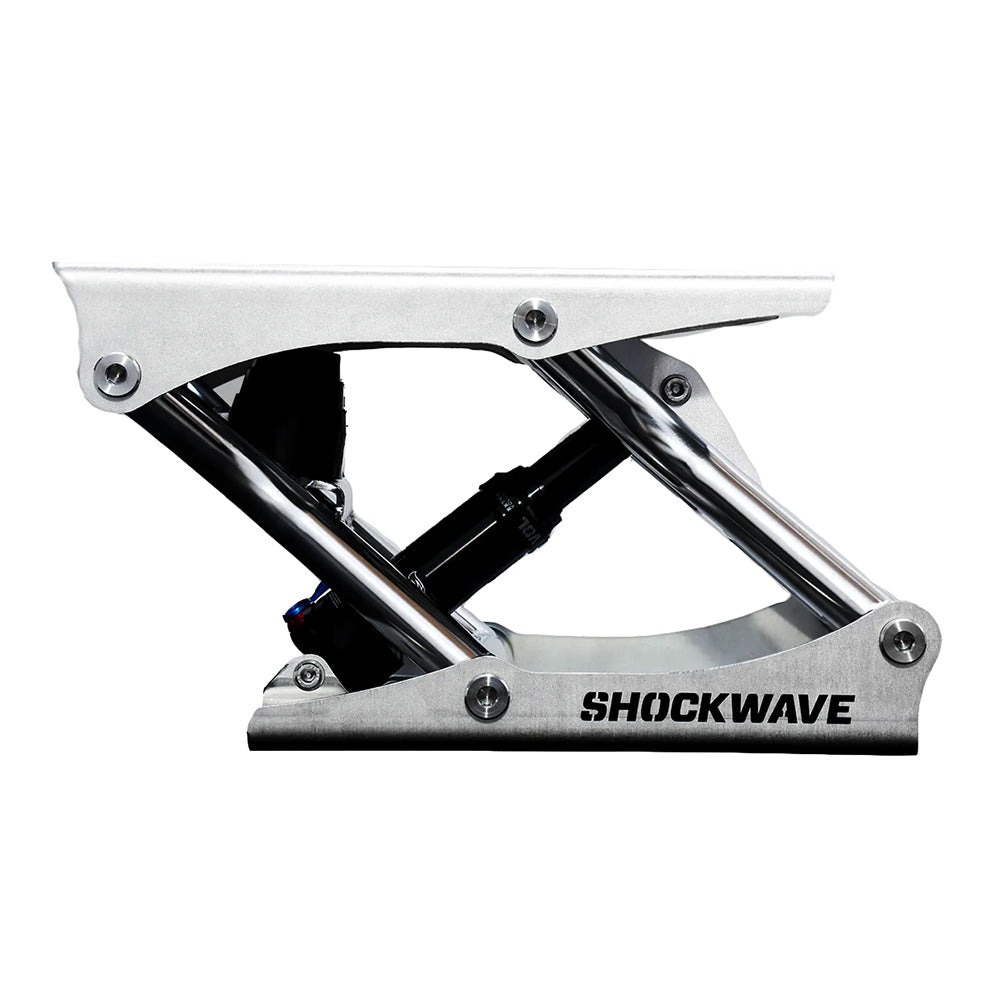

The Shockwave S5-SS stainless steel suspension base is the latest addition to the S5 product line. Welded construction using electropolished 316 stainless steel to last a lifetime. The Shockwave S5-SS is best suited for saltwater environments with high salinity, humidity, and moderate sea conditions.

Fitted with a FOX Rhythm air-sprung shock with adjustable rebound and compression, suspension travel is 4-inch vertical and 1.5-inch forward, using a four-link forward action, mitigating deceleration associated with wave impact.

A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada
• Custom-tuned and valved marine FOX Rhythm, air spring and shock with adjustable rebound and compression
• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
• Electropolished Welded 316 Stainless Steel
• 4-Link Forward Action
• Minimal parts count and simple construction
• Easy to mount and adapt to current seating
• Best for Professional Mariners Use in Heavy Seas

Vessel Application:

The S5-SS suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-SS can be fitted to almost any boat and any seat.

The Shockwave S5-SS Stainless Steel Suspension Base is engineered for durability and performance in demanding marine environments. Crafted from electropolished 316 stainless steel, this suspension base offers exceptional corrosion resistance, making it ideal for saltwater applications where high salinity and humidity are prevalent. Its welded construction ensures longevity and reliability, providing a robust foundation for boat seating systems in coastal and offshore conditions. The S5-SS is designed to withstand the rigors of heavy seas, making it suitable for professional mariners and serious boat enthusiasts alike.
Equipped with a custom-tuned FOX Rhythm air spring shock, the suspension system features adjustable rebound and compression settings. This allows users to tailor the ride quality based on sea conditions and personal preferences, ensuring optimal comfort and stability. The suspension travel includes 4 inches of vertical movement and 1.5 inches of forward travel, achieved through a four-link forward action that effectively mitigates the deceleration impacts caused by wave impacts. A shock pump with a pressure gauge is included at no extra cost, enabling precise adjustments for every voyage.
The design emphasizes simplicity and ease of installation, with minimal parts and straightforward construction that allows quick mounting and adaptation to various seating configurations. Manufactured in Canada, the Shockwave S5-SS suspension base is suitable for a wide range of vessel types including fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries vessels, whale watching boats, crew boats, and yacht tenders. Its universal compatibility ensures it can be fitted to almost any boat and seat, providing a versatile solution for marine seating needs. Whether for professional use or recreational boating, this suspension base enhances comfort, safety, and durability in challenging marine environments.
Invest in the Shockwave S5-SS Stainless Steel Suspension Base to improve your vessel's seating system with reliable, corrosion-resistant, and adjustable suspension technology designed specifically for demanding marine conditions.

Features:

• Designed and manufactured in Canada

• Custom-tuned and valved marine FOX Rhythm air spring shock with adjustable rebound and compression

• Surge protection with 4-inch vertical and 1.5-inch forward suspension travel, reducing wave impact deceleration

• Electropolished 316 stainless steel welded construction for corrosion resistance

• 4-link forward action for improved movement control

• Minimal parts count and simple construction for ease of installation

• Easy to mount and adapt to existing seating systems

• Ideal for professional mariners and heavy-sea conditions
