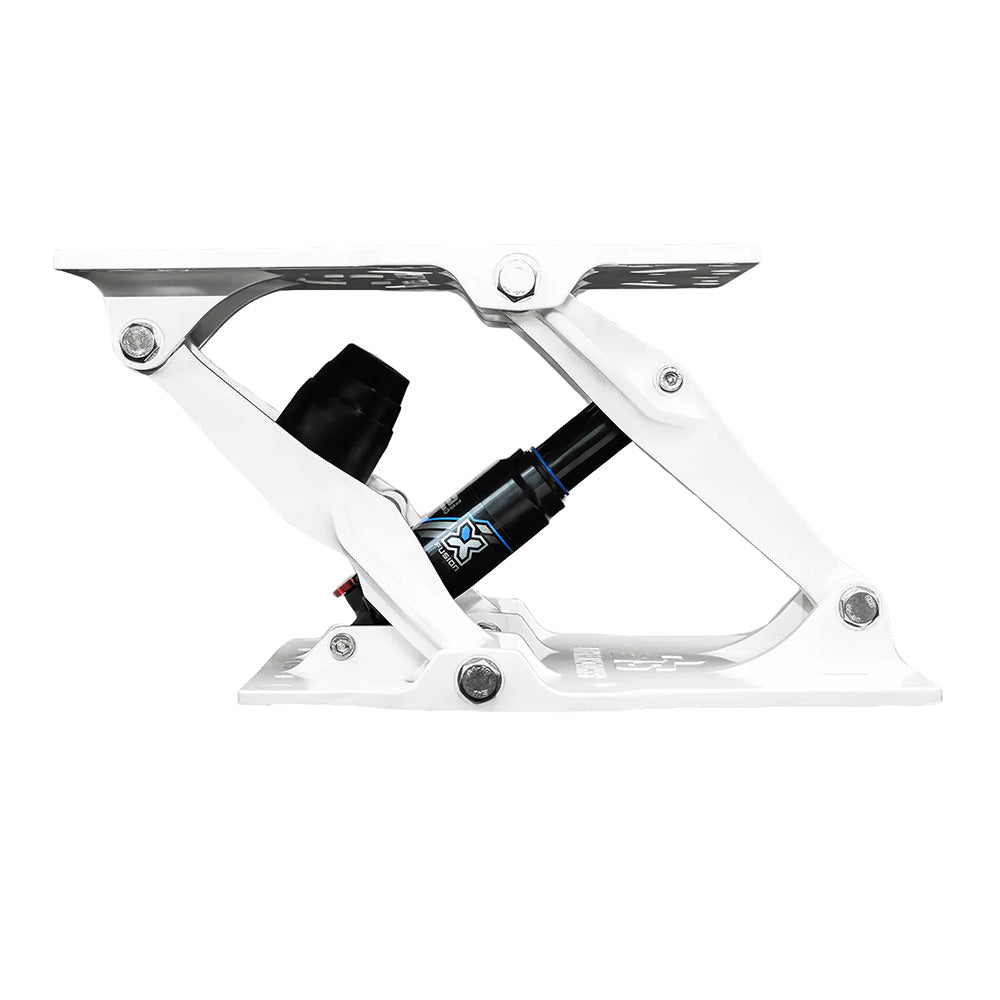

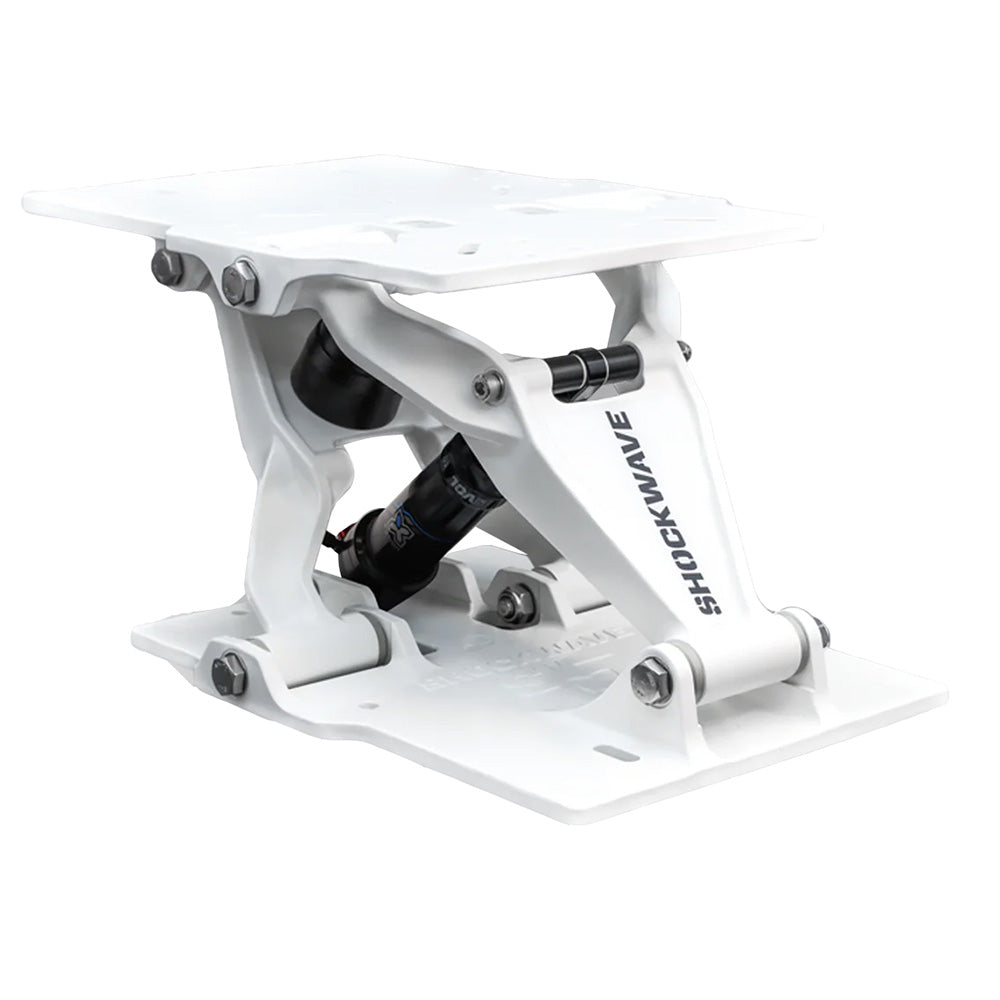

Shockwave Seats S5-LW White Marine Suspension Base with Adjustable Shock - SW-05026-W

S5-LW Suspension Base - White

The Shockwave S5-LW lightweight marine suspension base is our entry-level recreational suspension option. Designed to mitigate the shock of wave impact in light conditions on freshwater lakes or cabin boats on the ocean.

Made from anodized A360 cast aluminum that has been powder-coated and fitted with stainless steel hardware, the S5-LW suspension base utilizes a three-link forward action suspension design.

Fitted with an X-Fusion O2 PRO R air-sprung shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact. A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada
• Custom-tuned and valved marine X-Fusion O2 R, air spring, and shock with adjustable rebound
• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
• 3-Link Forward Action
• Anodized A360 Cast Aluminum, 304 SS Hardware, Powder Coated
• Minimal parts count and simple construction
• Easy to mount and adapt to the current seating

Vessel Application:

The S5-LW suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-LW can be fitted to almost any boat and any seat.

The Shockwave S5-LW suspension base in white offers a lightweight and durable solution for marine seating comfort. Crafted from anodized A360 cast aluminum with a powder-coated finish and stainless steel hardware, this suspension base is built to withstand the harsh marine environment. Its three-link forward action suspension design effectively absorbs the shocks caused by wave impacts, making it ideal for light recreational watersports and boat applications. The integrated X-Fusion O2 PRO R air-sprung shock features adjustable rebound, allowing users to customize comfort and performance. With 4 inches of vertical and 1.5 inches of forward suspension travel, it significantly reduces deceleration from wave impacts, providing a smoother ride on freshwater lakes, ocean cabins, and coastal vessels. The package includes a shock pump with a pressure gauge for easy adjustment, ensuring optimal performance tailored to your needs. Designed and manufactured in Canada, the Shockwave S5-LW suspension base emphasizes simplicity with minimal parts and straightforward installation. Its universal design makes it compatible with a wide range of boats, including fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching vessels, crew boats, and yacht tenders. Whether you need to upgrade existing seating or equip new vessels, the Shockwave S5-LW provides a reliable, smooth, and customizable suspension platform for enhanced onboard comfort and safety.

Features:

• Designed and manufactured in Canada

• Custom-tuned and valved marine X-Fusion O2 R air spring and shock with adjustable rebound

• Mitigates wave impact deceleration with 4-inch vertical and 1.5-inch forward suspension travel

• Three-link forward action suspension design

• Constructed from anodized A360 cast aluminum with stainless steel hardware and powder coating

• Minimal parts and simple installation process

• Easy to mount and adaptable to most boat seats
