Shockwave Seats S5-LW Suspension Base - Black for Marine Applications - SW-05026-B

S5-LW Suspension Base - Black

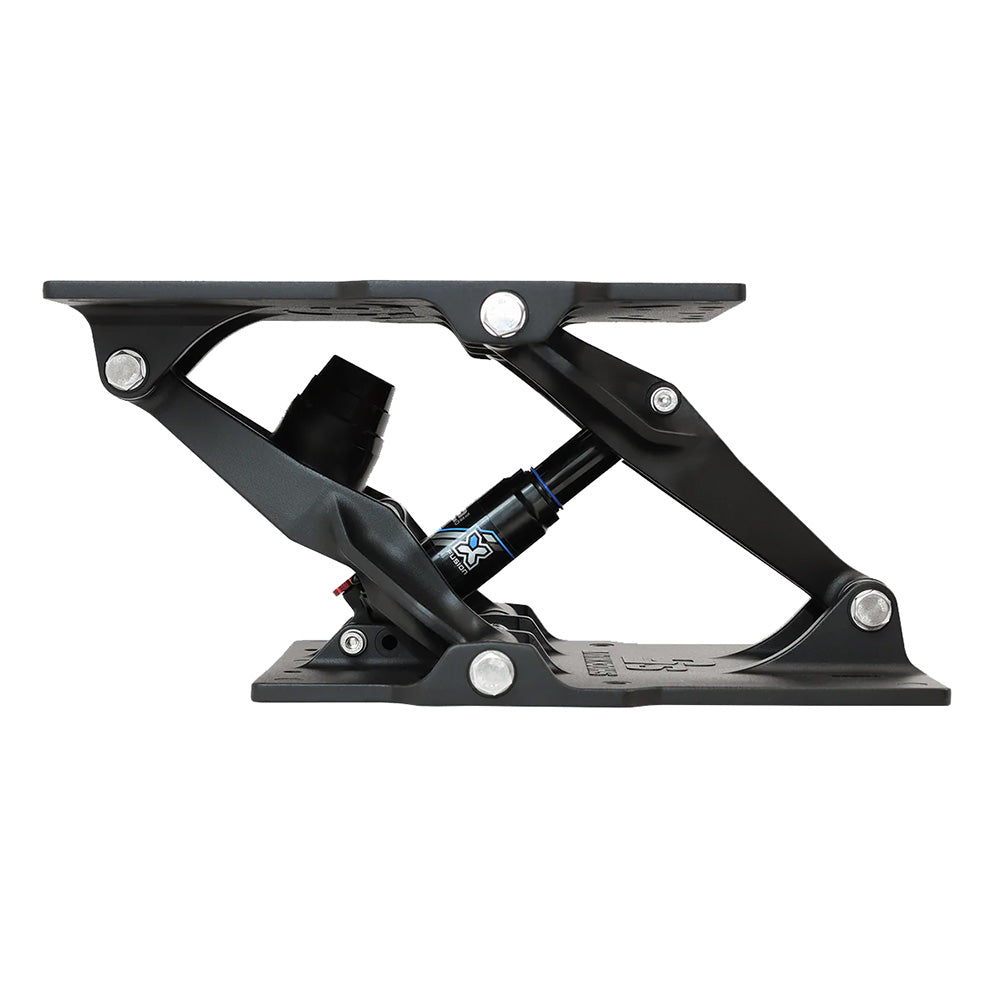

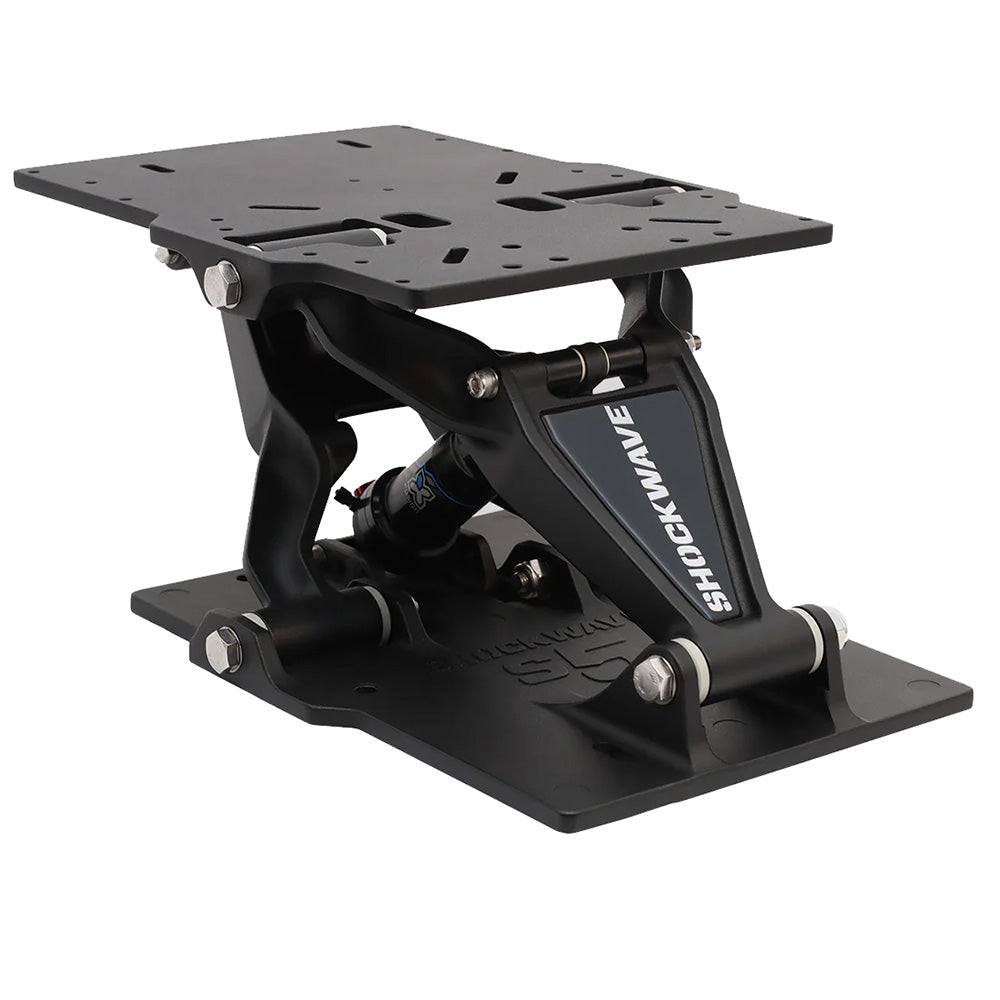

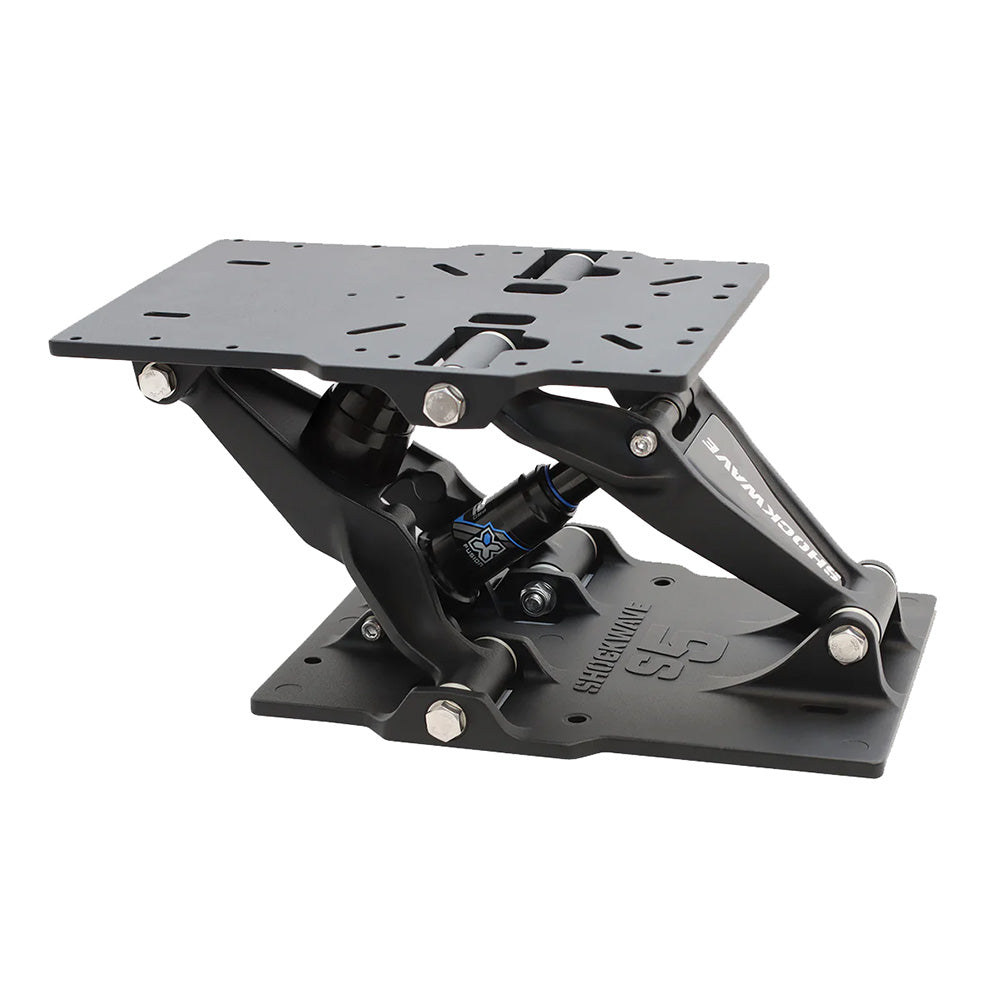

The Shockwave S5-LW lightweight marine suspension base is our entry-level recreational suspension option. Designed to mitigate the shock of wave impact in light conditions on freshwater lakes or cabin boats on the ocean.

Made from anodized A360 cast aluminum that has been powder-coated and fitted with stainless steel hardware, the S5-LW suspension base utilizes a three-link forward action suspension design.

Fitted with an X-Fusion O2 PRO R air-sprung shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact. A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada
• Custom-tuned and valved marine X-Fusion O2 R, air spring, and shock with adjustable rebound
• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
• 3-Link Forward Action
• Anodized A360 Cast Aluminum, 304 SS Hardware, Powder Coated
• Minimal parts count and simple construction
• Easy to mount and adapt to the current seating

Vessel Application:

The S5-LW suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-LW can be fitted to almost any boat and any seat.

The Shockwave Seats S5-LW Suspension Base in black is an ideal solution for recreational boats requiring a lightweight and reliable suspension system. Crafted from anodized A360 cast aluminum with a durable powder coating and stainless steel hardware, this suspension base ensures longevity in marine environments. Its three-link forward action design effectively absorbs shocks from wave impacts, providing a smoother ride on freshwater lakes or ocean cabins. The unit features a 4-inch vertical and 1.5-inch forward suspension travel, which helps mitigate deceleration during wave encounters, enhancing comfort and stability during boating activities.

Equipped with an X-Fusion O2 PRO R air-sprung shock that offers adjustable rebound, the suspension system can be tuned to suit different weights and conditions. A shock pump with a pressure gauge is included at no extra cost, allowing for easy adjustments to achieve optimal performance. The minimal parts count and straightforward construction make installation simple and adaptable to various seating arrangements and vessel types. The Shockwave S5-LW suspension base is designed for quick mounting, making it compatible with most boat seats, including those on fishing boats, coastal cruisers, ski and wake boats, guide boats, fisheries vessels, whale watching boats, crew boats, and yacht tenders.

Manufactured in Canada, the S5-LW suspension base combines quality craftsmanship with functional design. Its universal fit and corrosion-resistant components ensure it performs reliably in challenging marine environments. Whether upgrading existing seating or building a new vessel interior, this suspension base provides a robust, cost-effective solution for enhancing passenger comfort and safety while on the water.

Features:

• Designed and manufactured in Canada

• Custom-tuned and valved marine X-Fusion O2 R air spring and shock with adjustable rebound

• Suspension travel of 4 inches vertical and 1.5 inches forward to mitigate wave impact deceleration

• 3-Link Forward Action suspension design

• Constructed from anodized A360 cast aluminum with stainless steel hardware and powder coating for durability

• Minimal parts count and simple to install and maintain

• Universal mounting compatibility for various boat types and seats
