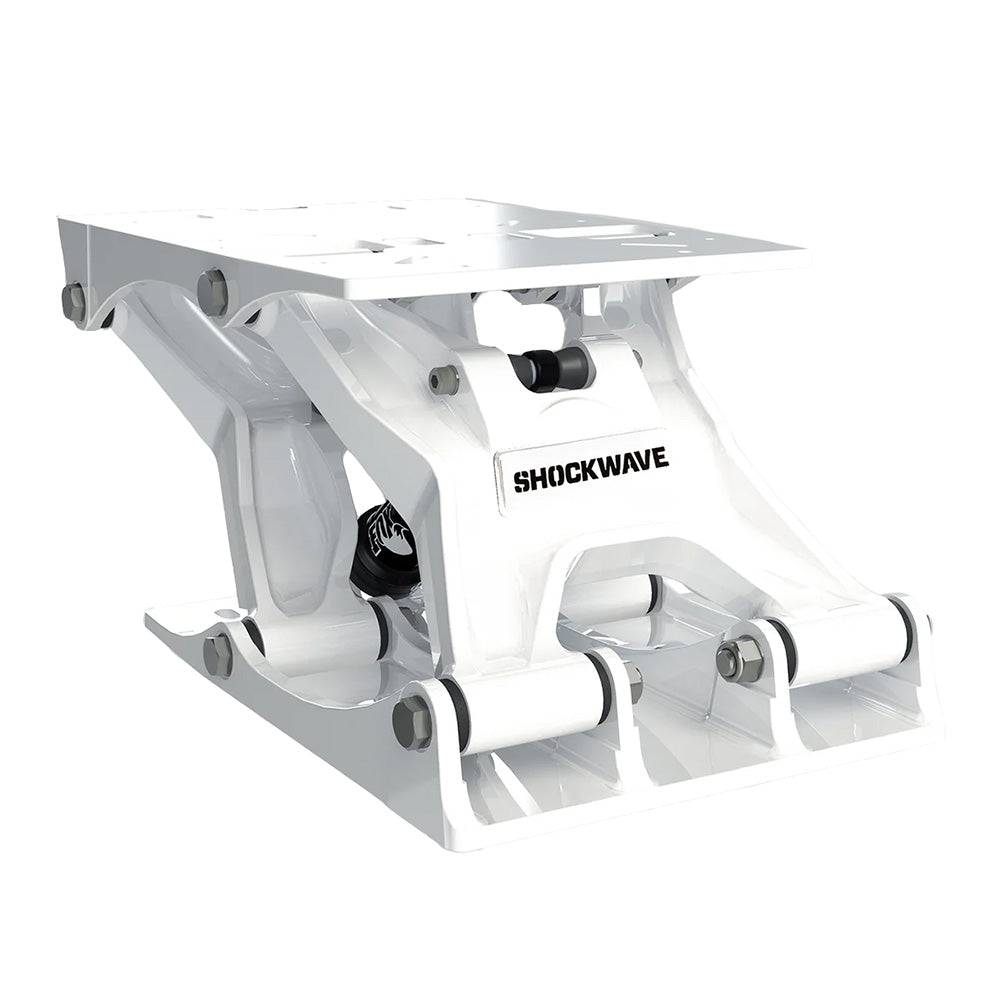

Shockwave Seats S5-AL Suspension Base - White for Boats and Marine Vehicles - SW-07823-W

S5-AL Suspension Base - White

The Shockwave S5-AL suspension base (formerly the S5 Sentinel) provides comfort and safety to boaters, offering them an experience theyve never had before. It offers a smoother, safer, and more comfortable ride, protecting occupants from the shock of wave impact. Recreational boaters can stay out longer and travel farther with less fatigue. Made from anodized A360 cast aluminum that has been powder-coated and fitted with 316 stainless steel hardware, the S5-AL suspension base utilizes a four-link forward action suspension design.

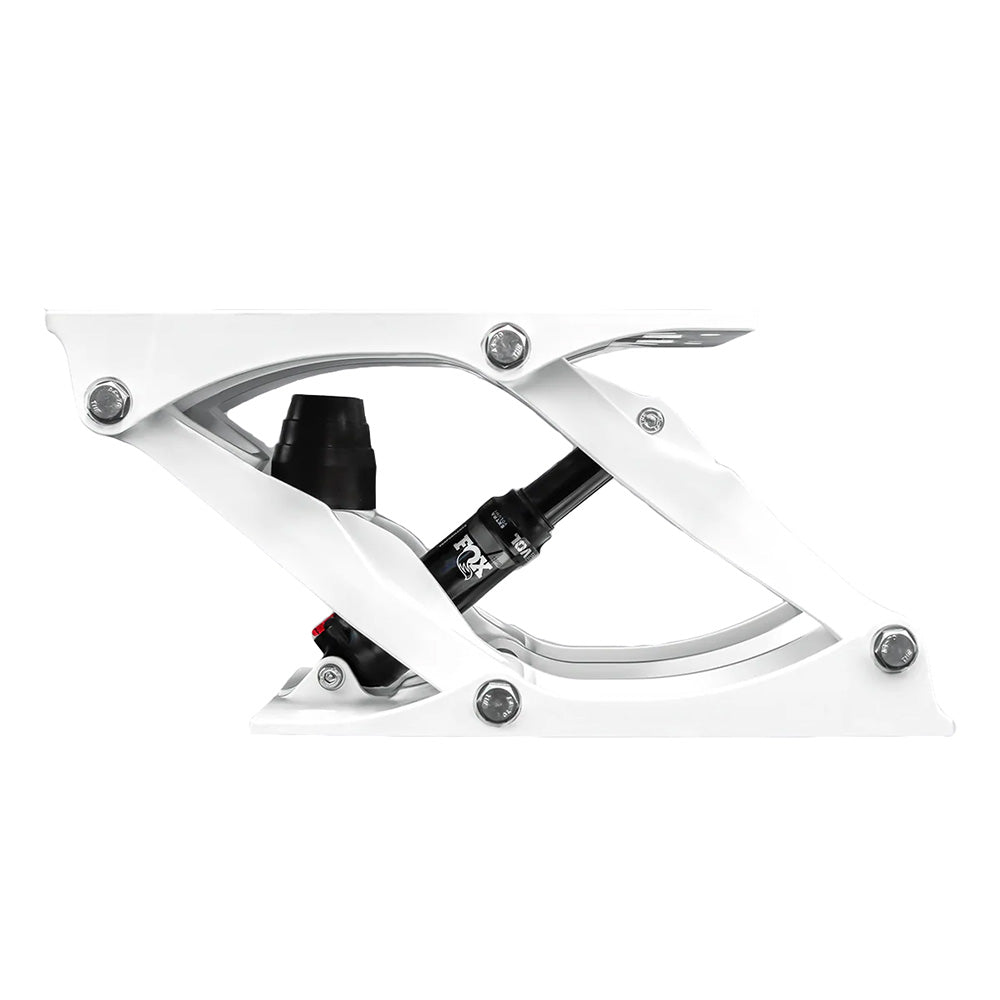

Fitted with a FOX Rhythm air-sprung shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact.

A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada
• Custom-tuned and valved marine FOX Rhythm air spring and shock with adjustable rebound
• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
• 4-Link Forward Action
• Anodized A360 Cast Aluminum, 316 SS Hardware, Powder Coated
• Minimal parts count and simple construction
• Easy to mount and adapt to the current seating

Vessel Application:

The S5-AL suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-AL can be fitted to almost any boat and any seat.

The Shockwave Seats S5-AL Suspension Base in white provides boaters with an enhanced riding experience by offering superior shock absorption and comfort. Constructed from anodized A360 cast aluminum with a durable powder coat finish and reinforced with 316 stainless steel hardware, this suspension base is designed for longevity and corrosion resistance. Its four-link forward action suspension system features a FOX Rhythm air-sprung shock with adjustable rebound, allowing users to customize damping for optimal comfort and safety. The suspension travel includes 4 inches of vertical movement and 1.5 inches forward, effectively mitigating the deceleration caused by wave impacts. A shock pump with a pressure gauge is included at no extra charge, making it easy to fine-tune the suspension to your preferences. This suspension base is designed to be simple to install, with minimal parts and straightforward construction, ensuring compatibility with most boat seats and configurations. Its universal design makes it suitable for a wide range of vessel types, including fishing boats, coastal cruisers, ski and wake boats, guide boats, fisheries vessels, whale watching boats, crew boats, and yacht tenders. Regardless of your boat's size or purpose, the Shockwave S5-AL suspension base offers a smoother, safer, and more comfortable ride, enabling boaters to stay out longer and travel farther with less fatigue. Designed and manufactured in Canada, this suspension base combines quality craftsmanship with practical features to enhance marine comfort and safety in various maritime applications.

Features:

• Designed and manufactured in Canada

• Custom-tuned marine FOX Rhythm air spring and shock with adjustable rebound

• Surge protection with 4-inch vertical and 1.5-inch forward suspension travel to mitigate wave impact deceleration

• Four-link forward action suspension system

• Constructed from anodized A360 cast aluminum with 316 stainless steel hardware and powder coating

• Minimal parts and simple construction for ease of installation

• Easy to mount and adapt to most boat seats and configurations
