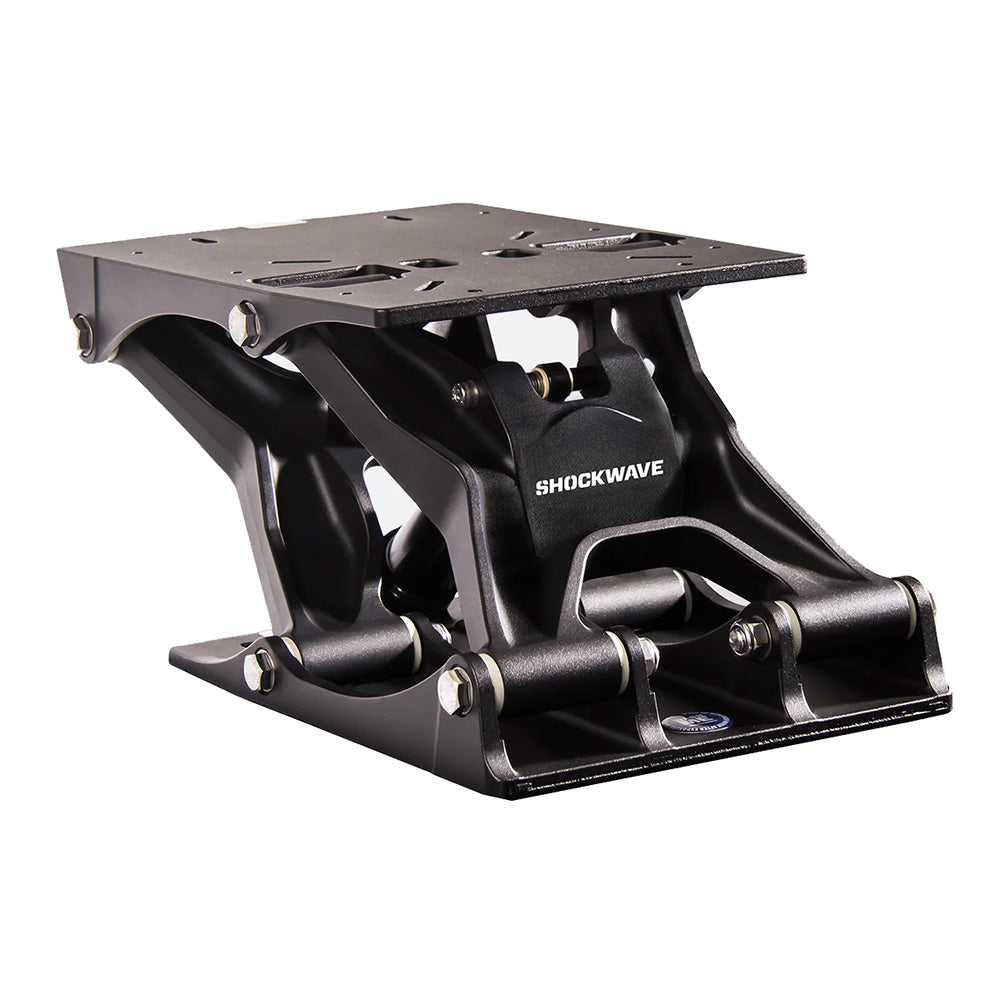

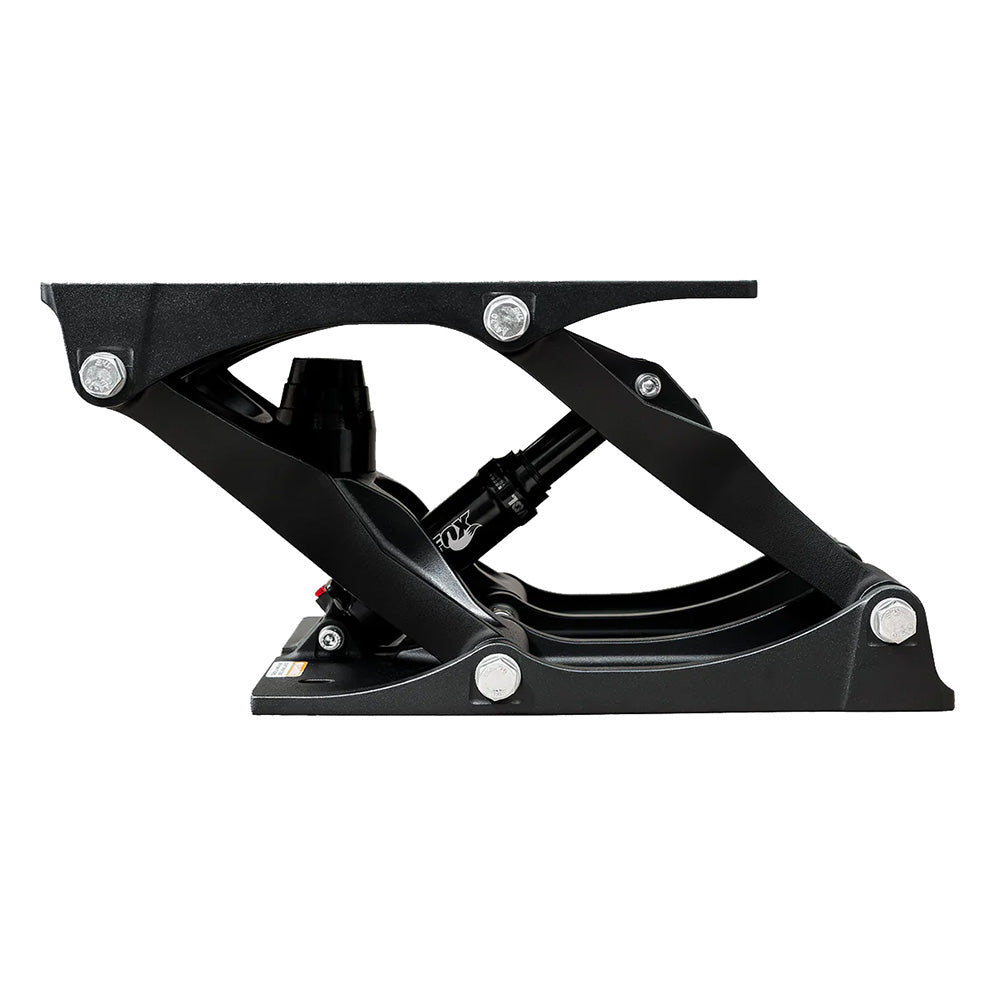

Shockwave S5-AL Suspension Base - Black - SW-07823-B

S5-AL Suspension Base - Black

The Shockwave S5-AL suspension base (formerly the S5 Sentinel) provides comfort and safety to boaters, offering them an experience theyve never had before. It offers a smoother, safer, and more comfortable ride, protecting occupants from the shock of wave impact. Recreational boaters can stay out longer and travel farther with less fatigue. Made from anodized A360 cast aluminum that has been powder-coated and fitted with 316 stainless steel hardware, the S5-AL suspension base utilizes a four-link forward action suspension design.

Fitted with a FOX Rhythm air-sprung shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact.

A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada


• Custom-tuned and valved marine FOX Rhythm air spring and shock with adjustable rebound


• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts


• 4-Link Forward Action


• Anodized A360 Cast Aluminum, 316 SS Hardware, Powder Coated


• Minimal parts count and simple construction


• Easy to mount and adapt to the current seating

Vessel Application:

The S5-AL suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-AL can be fitted to almost any boat and any seat.

The Shockwave Seats S5-AL suspension base in black offers boaters an enhanced experience by providing superior comfort and safety. Crafted from durable anodized A360 cast aluminum with a powder-coated finish and fitted with high-quality 316 stainless steel hardware, this suspension base is designed to withstand harsh marine environments. Its four-link forward action suspension system, featuring a FOX Rhythm air-sprung shock with adjustable rebound, effectively absorbs wave impacts, delivering a smoother ride. The suspension travel includes 4 inches vertically and 1.5 inches forward, reducing deceleration from waves and enhancing overall stability and comfort during marine excursions. Additionally, a shock pump with a pressure gauge is included at no extra cost, allowing for easy adjustment of the suspension to match specific boating conditions. The design emphasizes minimal parts and straightforward construction, making installation simple and adaptable to existing seating arrangements. Whether installed on fishing boats, coastal cruisers, ski or wake boats, or yacht tenders, the Shockwave S5-AL suspension base offers versatile compatibility and reliable performance. Its universal design ensures it can be fitted to nearly any boat and seat, making it an ideal upgrade for enhancing passenger comfort and safety during marine activities.

Features:

• Designed and manufactured in Canada

• Custom-tuned and valved marine FOX Rhythm air spring and shock with adjustable rebound

• Surge protection: suspension travel mitigates wave impact deceleration with 4-inch vertical and 1.5-inch forward travel

• Four-link forward action suspension system

• Constructed from anodized A360 cast aluminum, fitted with 316 stainless steel hardware, and powder-coated for durability

• Minimal parts and simple design for easy installation and maintenance

• Compatible with most boat types and seating configurations
