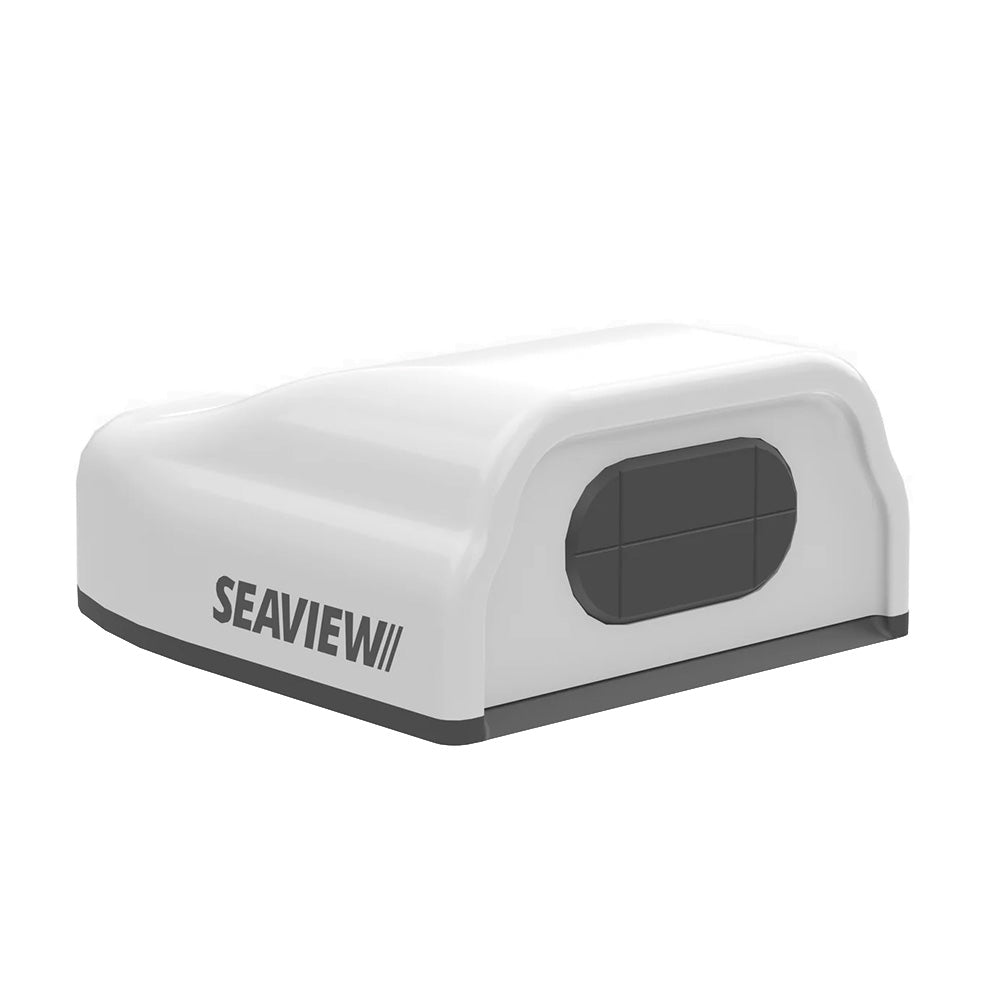

Seaview White Plastic Horizontal Cable Seal for Multiple Wires - Model CGM90W

White Plastic Horizontal Cable Seal for Multiple Wires

The Seaview horizontal cable seal (90-degree cable seal) is a streamlined, waterproof seal that has a horizontal orientation. This cable seal fits cable diameters up to 0.53 (13.5mm). Max connector size approx. 0.375-0.5 (9.5 mm-12.7 mm) depending on connector length and type.

It has a plastic housing (white or black) that is strong and impact-resistant, with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with a drill tube allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approved.

These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125 of rubber around each hole.

The Seaview CGM90W horizontal cable seal is designed to provide a reliable waterproof solution for securing multiple wires in various applications. Crafted from durable, impact-resistant plastic available in white or black, this seal features a streamlined design that ensures a tight fit and environmental protection. The integrated captive nut in the base facilitates easy assembly, making installation quick and straightforward. Its tapered rubber bung forms an effective watertight seal around cables, and the included drill tube allows customization of the seal diameter to accommodate different cable sizes. Additionally, a thick rubber base gasket enhances sealing integrity, ensuring protection against water ingress in demanding conditions. Certified with IPX6 and IPX8 ratings, this cable seal is suitable for applications requiring high levels of water resistance and environmental sealing. It supports cable diameters up to 0.53 inches (13.5mm) and accommodates connectors with a maximum size of approximately 0.375-0.5 inches (9.5mm-12.7mm), depending on connector length and type. This versatile seal can be used with multiple cables simultaneously, provided each cable has its own drilled hole with at least 0.125 inches of rubber around it, making it ideal for complex wiring configurations where secure, waterproof sealing is essential. Whether for industrial, marine, or outdoor electrical installations, the Seaview CGM90W offers a dependable, easy-to-install sealing solution that ensures long-term protection against environmental elements.

Features:
* Waterproof design with IPX6/IPX8 certification for high-level water resistance
* Impact-resistant plastic housing available in white or black for durability and visibility
* Captive nut in base for easy and secure assembly
* Tapered rubber bung creates a watertight seal around cables
* Customizable diameter with included drill tube for flexible installation
* Thick rubber base gasket enhances sealing performance
* Supports multiple cables with individual holes, provided each has sufficient rubber clearance
