Manufactures Part Number: AP1233
Truck Freight: No

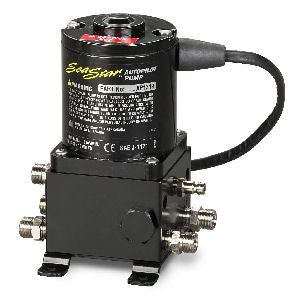

Seastar AP1233 Type 2 Pump 12v 110 Cu In/Min
The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2).
AUTOPILOT ? KEY FEATURES
-
Long life DC Motor (i.e. long life brushes)
-
Compact design
-
Simplified installation
-
Low power consumption
-
ABYC, CE?s and J1171 compliant
-
Superior corrosion resistance
-
Quiet operation
-
All mounting bracket displacement included
Voltage
12 volt
Fittings
Compatible w/ Standard Seastar Hose - Thread 9/16" X 24 UNEF
Wire Details
Length
24"
Gauge
12 awg
Connector
None - Bare Leads
Oil Compatibility
Seastar Steering Fluid (MIL 5606)
Weight
4.9 lbs (2.2 kg)
Pump Sizes
Type 1: 60 in3/min (no-load)
Type 2: 100 in3/min (no-load)
Maximum Pressure
1000 psi
Typical Current Draw
12V Type 1: 4 ? 8 amps
(Depending on Application)
12V Type 2: 5 ? 11 amps
Ram Capacity
Type 1
4.9 in3 - 14 in3
Type 2
14 in3 - 21 in3
