Seakeeper Ride 900 - Full Kit w/o Keypad - 90921

Ride 900 - Full Kit without Keypad

Seakeeper Ride controllers are mounted to your boats transom, below the waterline. Using custom, proprietary inertial sensing hardware and software, the system understands how the boat is behaving in all three axes and commands the deployment of the rotary blades to counteract pitch, roll, and yaw. As the blades are deployed, they create lift at the transom, managing the vessels motion instantaneously.

Designed with aluminum components for added strength, Seakeeper Ride 900 is designed for boats between 43-55 ft. in length. Seakeeper Ride took their high-performing underway stabilization systems and made them bigger. Now with more span to create more lift, Seakeeper Ride can stabilize boats up to 55 ft. From center consoles, sportfish yachts, cruisers, and more.

Before purchasing, please verify this system will fit the intended boat.

Rapid Actuation

Rotary blades deploy at a rate of up to 300 mm per second, making 100 adjustments every second, enabled by a power-dense rotary design that requires just 7-10 amps for operation.

Full Underway Control

Controls all motions (pitch, roll, and yaw) thanks to deployment speed and proprietary control software and hardware.

Intuitive

Predicts motion and responds instantaneously to eliminate them before theyre felt, with no buttons to push or adjustments to make, providing a boating experience you never imagined.

Reliable

The drivetrain is completely sealed in a dry and greased environment with no mechanical exposure to saltwater.

(2) Port and (2) Starboard Controllers (4 Total)

Seakeeper Ride controllers are installed on the transom on either side of the engine(s).

Software Module

The brain of the system includes Seakeepers proprietary software and motion sensors.

Distribution Module (2 Total)

Provides power and communication between the controllers and the software module.

User Interface

The user interface is compatible with select Garmin, Simrad, and Raymarine MFDs. MFDs are not included in Seakeeper Ride equipment.

Eliminate up to 70% of Pitch and Roll Underway

Nothing compares to the first-of-its-kind Vessel Attitude Control System, Seakeeper Ride, which can eliminate up to 70% of pitch and roll underway. Our proprietary, rapid-deployment rotary blades make 100 adjustments every second to combat wave motions, providing unmatched performance.

Specifications:

• For Boats: 43-55 ft.

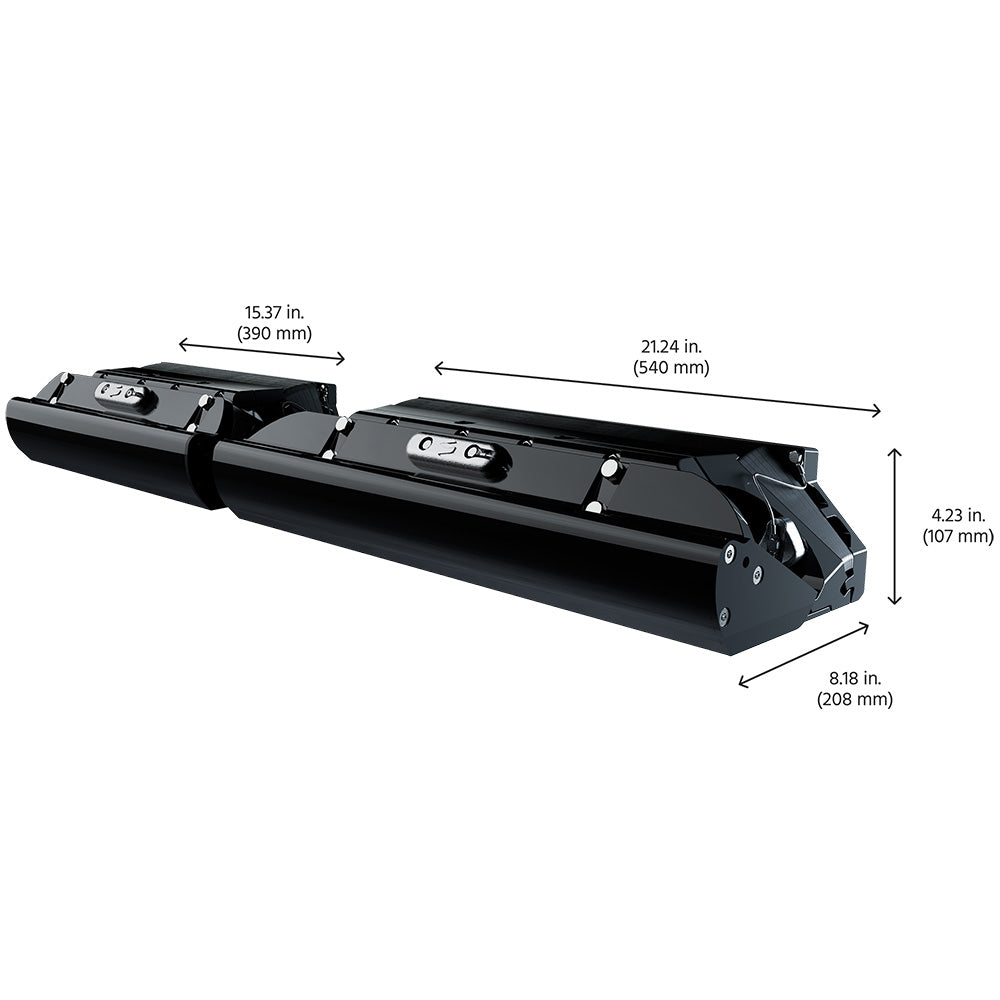

• Blade Size: Four controllers per system 2 sets of 1 x 540mm (21.24 in.) 1 x 390mm (15.37 in.)


• Power Draw: 12V, 7-10A or 24V 3.5-5A @ Cruising Speed

*The accessory keypad for the Seakeeper Ride is sold separately (PN: 12902SP)

*The Ethernet cable for the Seakeeper Ride is required for the installation and is sold separately

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
