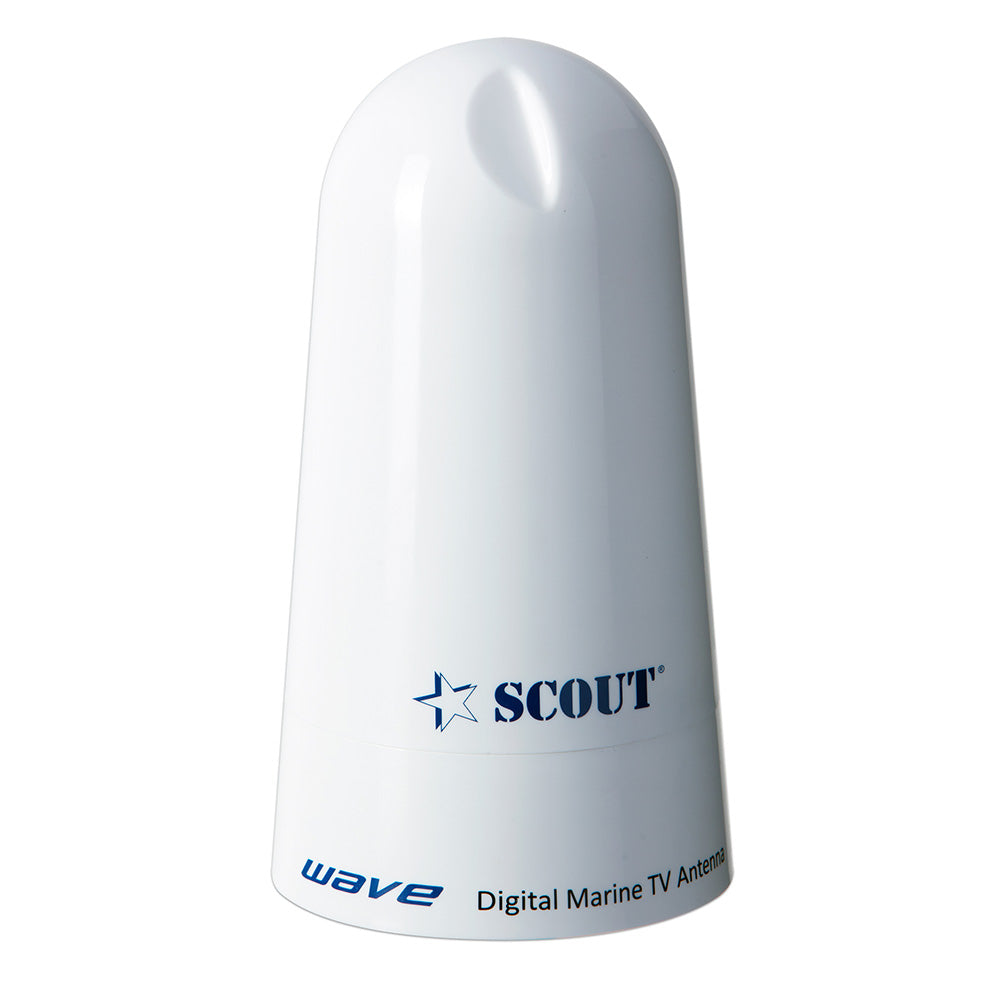

Scout Wave 4 inch White Omnidirectional TV Antenna with 25dB Gain and 10M Cable

Wave 4 White TV Antenna Omnidirectional 25dB Gain with 10M, 75ohm, Cable

The Scout Wave is a compact-sized omnidirectional TV/FM antenna of only 105 mm (4) diameter and 200 mm (8) height, designed to receive all available analogue and digital terrestrial TV, FM signals through a 360-degree radius, ideal for any type of boat.

Omnidirectional design eliminates the time needed to locate the direction of the TV and radio transmitter, and the built-in high-gain amplifier (25 dB) with low noise figure guarantees an excellent picture quality, both on horizontal and vertical polarization. The splitter/power inserter included with the antenna allows you to connect two devices at the same time, a TV or an FM radio.

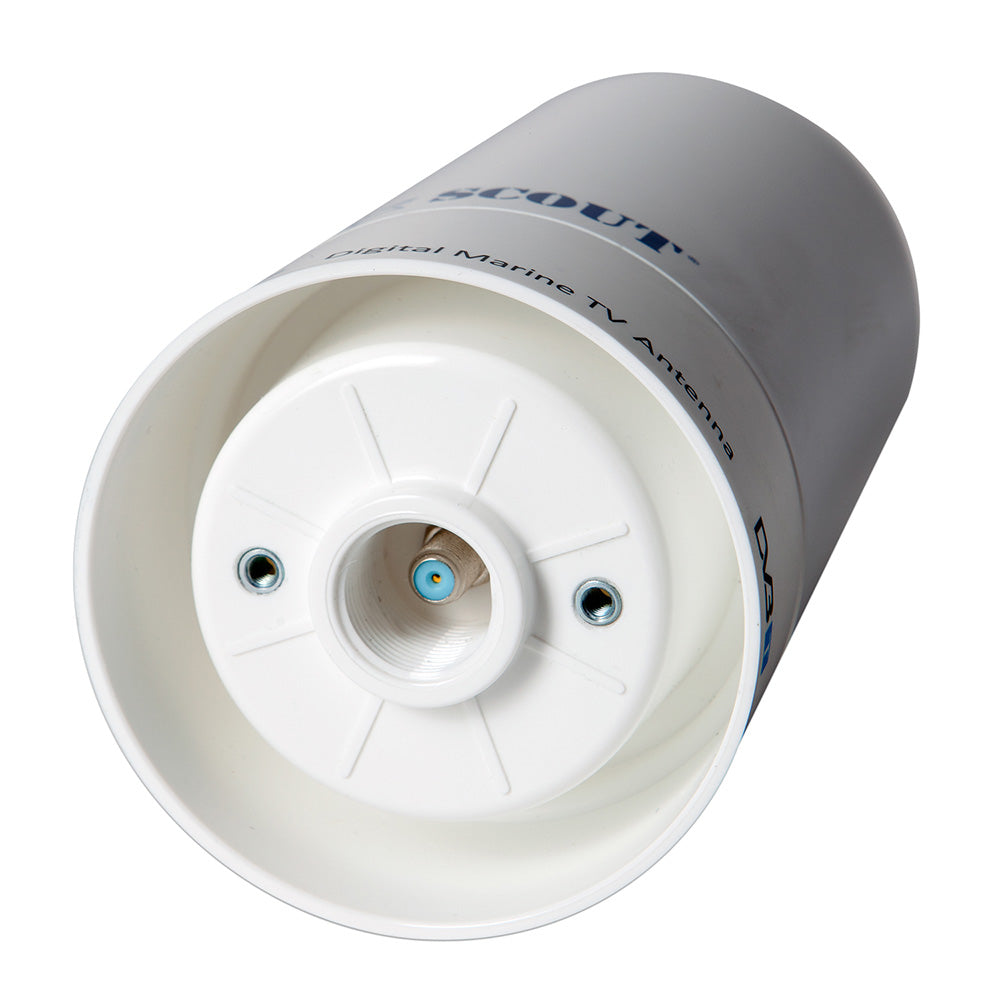

The waterproof casing is UV-inhibited, to avoid color deterioration, and easy to install both on standard 1 x 14 threaded mounts and on deck as a permanent, through-hole mount solution (onto a non-metal surface or enclosure).

Wave is supplied together with the complete installation set that includes:

• 12V power inserter/splitter 2 outputs


• 12V fused power cable


• Coax cable 75 Ohm 10 m (33)


• TV cable 1 m (3.3)


• F-type connector (2 pcs)


• Screw (2 pcs)


• Washer (4 pcs)


• Grower washer (2 pcs)


• Nut (4 pcs)

Wiring of the whole system is easy and fast, and thanks to the 2-output power inserter, you can connect the TV and FM radio to the same antenna.

The exclusive design, the compact size of only 11 cm in diameter, and the superior picture quality make the Wave the perfect choice for boaters who want to enjoy premium TV and radio on board.

Features:

• Compact size


• Excellent picture quality


• Built-in high-gain amplifier (25 dB)


• Easy to install (mount/deck)

Specifications:

• Reception: Omnidirectional 360


• Frequency Range: 40-860 MHz


• Impedance: 75 ohms


• Channels: 2-69


• Gain: 25 dB


• Input power: 12V DC


• Noise: <1.7 dB


• Output: 2


• Connectors: F


• Antenna diameter: 11 cm (4)


• Height: 20 cm (8)


• Material: UV-resistant ASA

The Scout Wave 4-inch White TV Antenna is an ideal solution for boaters seeking reliable, high-quality television and radio reception at sea. Its compact design measures only 4 inches in diameter and 8 inches in height, making it easy to install on a variety of vessels without occupying excessive space. This omnidirectional antenna provides 360-degree signal reception for both analog and digital terrestrial TV, as well as FM radio signals, ensuring you stay connected regardless of your boat's orientation. Its built-in high-gain amplifier, rated at 25 dB, enhances signal strength while maintaining low noise levels, resulting in crisp, clear picture and sound quality on both horizontal and vertical polarizations. The waterproof casing is UV-inhibited, providing excellent durability and resistance to harsh marine environments, and it can be mounted on standard threaded mounts or deck-mounted as a permanent, through-hole installation on non-metal surfaces. The complete installation kit includes a 10-meter coax cable, a splitter/power inserter with two outputs, and all necessary mounting hardware, simplifying setup and enabling simultaneous connection of a TV and FM radio. Designed specifically for maritime use, the Scout Wave antenna's compact size, superior signal amplification, and ease of installation make it a popular choice among boaters who want reliable entertainment on the water. Whether replacing an existing antenna or installing a new system, the Scout Wave offers excellent reception performance combined with durable construction for everyday marine use.

Features:
* Compact size for easy installation on boats
* Excellent picture and sound quality with 25dB high-gain amplifier
* Omnidirectional 360-degree signal reception for all directions
* Durable, UV-resistant waterproof casing suitable for marine environments
* Easy to install on standard threaded mounts or deck surfaces
