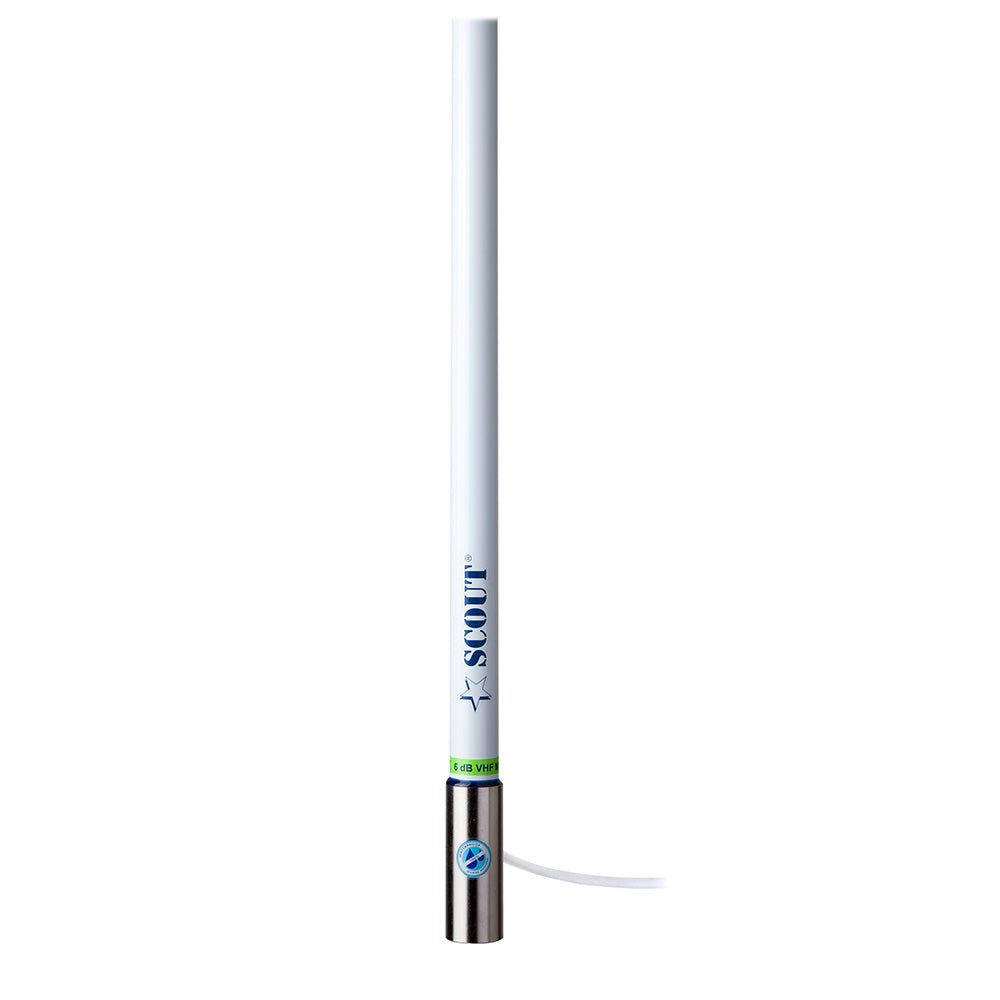

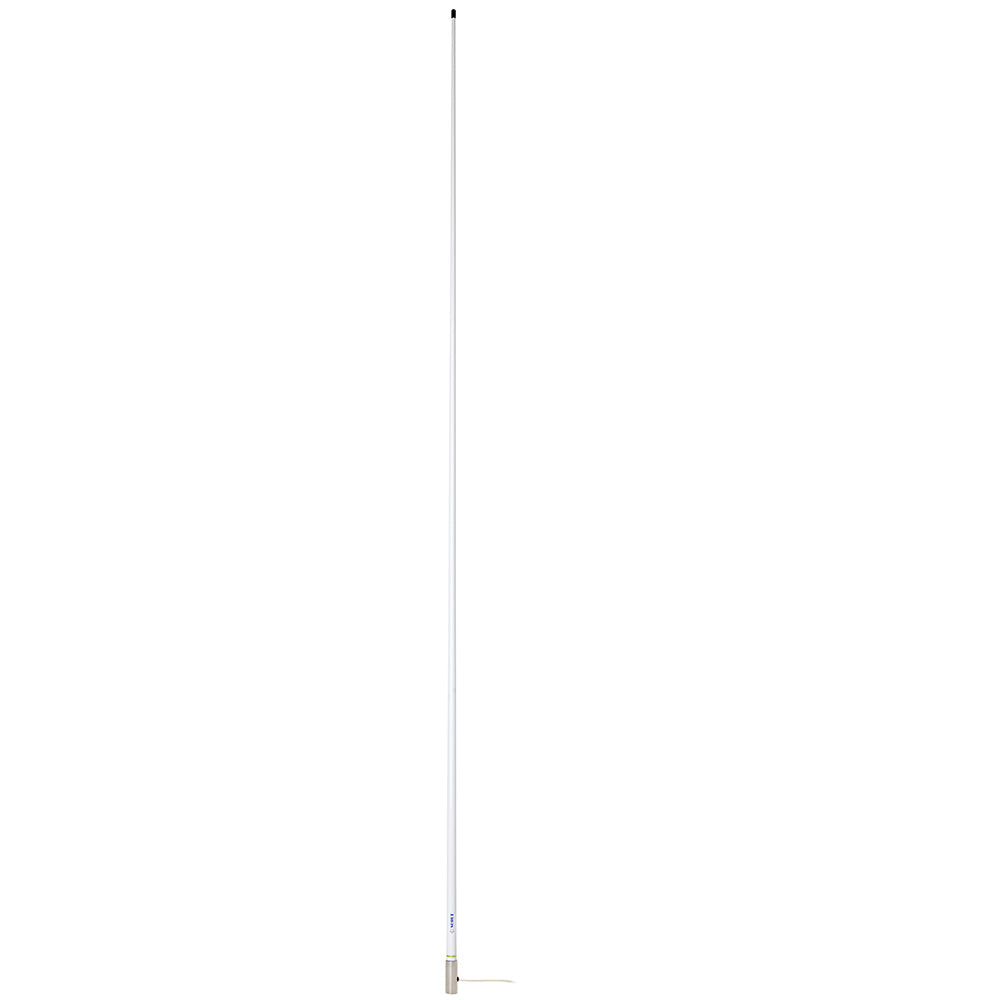

Scout PF AN NVHF00020T 8' White VHF Antenna with 6dB Gain, Heavy Stainless Steel Ferrule, 6M RG-8X Cable, Offshore-Grade Design

8 White VHF Antenna 6dB Heavy Stainless Steel Ferrule with 6M RG-8x Includes PL-259 Heavy Duty Offshore Antenna KS-43

The KS-43 is the best-performing VHF antenna of the Scout range, specifically designed to guarantee long-range communication and endless duration for boaters who want more than a good VHF antenna. Collinear-phased, made with solid brass and copper elements, and extra heavy-duty fiberglass 1,5 mm thick.

Moreover, the antenna is totally foam injected with the Scout 100% waterproof technique, making it perfectly sealed and with an outstanding resistance to harsh environments. Water, wind, ice, and high speed are good friends. The fiberglass whip is black painted, to make the antenna fit with the most modern boats.

The antenna is supplied with 6m (20) high-performance RG-8X cable with 97% copper braid coverage, which guarantees perfect shielding from external interferences. Stainless steel ferrule with standard 1 x 14 threads to fit on every type of mount (stainless steel/chrome brass mounts are suggested).

Features:

• High-performance 6 dB antenna


• Extra heavy-duty fiberglass whip


• Foam injected 100% waterproof

Specifications:

• Frequency: 156-162 MHz


• Impedance: 50 ohms


• Electrical length: 1/2 + 1/2


• V.S.W.R.: < 1,5:1


• Polarization: Vertical


• Gain: 6 dB


• Max power input: 50 W


• DC ground: Yes


• Whip material: Fiberglass


• Coaxial cable: 6 m (19.6) RG-8X


• Mounting: 1 x 14 thread


• Length: 2,4 m (8)


• Weight: 0,86 kilo

The Scout PF AN NVHF00020T is a high-performance 8-foot white VHF antenna designed for demanding marine communication environments. Crafted with a collinear-phased design, this antenna features solid brass and copper elements that ensure reliable long-range transmission and superior signal quality. Its extra heavy-duty fiberglass whip, measuring approximately 2.4 meters, is foam injected to provide a 100% waterproof seal, making it highly resistant to water, wind, ice, and high-speed conditions typically encountered at sea. The black-painted fiberglass finish not only enhances durability but also complements modern vessel aesthetics.

Included with this antenna is a 6-meter (20 feet) RG-8X coaxial cable with 97% copper braid coverage, which offers excellent shielding from external interference, ensuring clear communication even in challenging environments. The stainless steel ferrule features a standard 1 x 14 thread, compatible with most mounts, with recommendations favoring stainless steel or chrome brass mounts for optimal performance. This design guarantees ease of installation and secure mounting, making it suitable for various vessel types.

The Scout VHF antenna operates within the 156-162 MHz frequency range with a 50-ohm impedance and offers a gain of 6 dB, making it ideal for long-distance communication. Its electrical length is roughly half the wavelength, and it maintains a Voltage Standing Wave Ratio (V.S.W.R.) of less than 1.5:1 for efficient power transfer. The antenna is vertically polarized, supports up to 50 watts of power input, and is equipped with a DC ground for safety and performance. Designed for durability and high performance, this antenna is a reliable choice for offshore and coastal boating applications, ensuring consistent communication in all weather conditions.

Features:
* High-performance 6 dB gain for extended communication range
* Extra heavy-duty fiberglass whip for enhanced durability
* Foam injected to ensure 100% waterproof sealing
