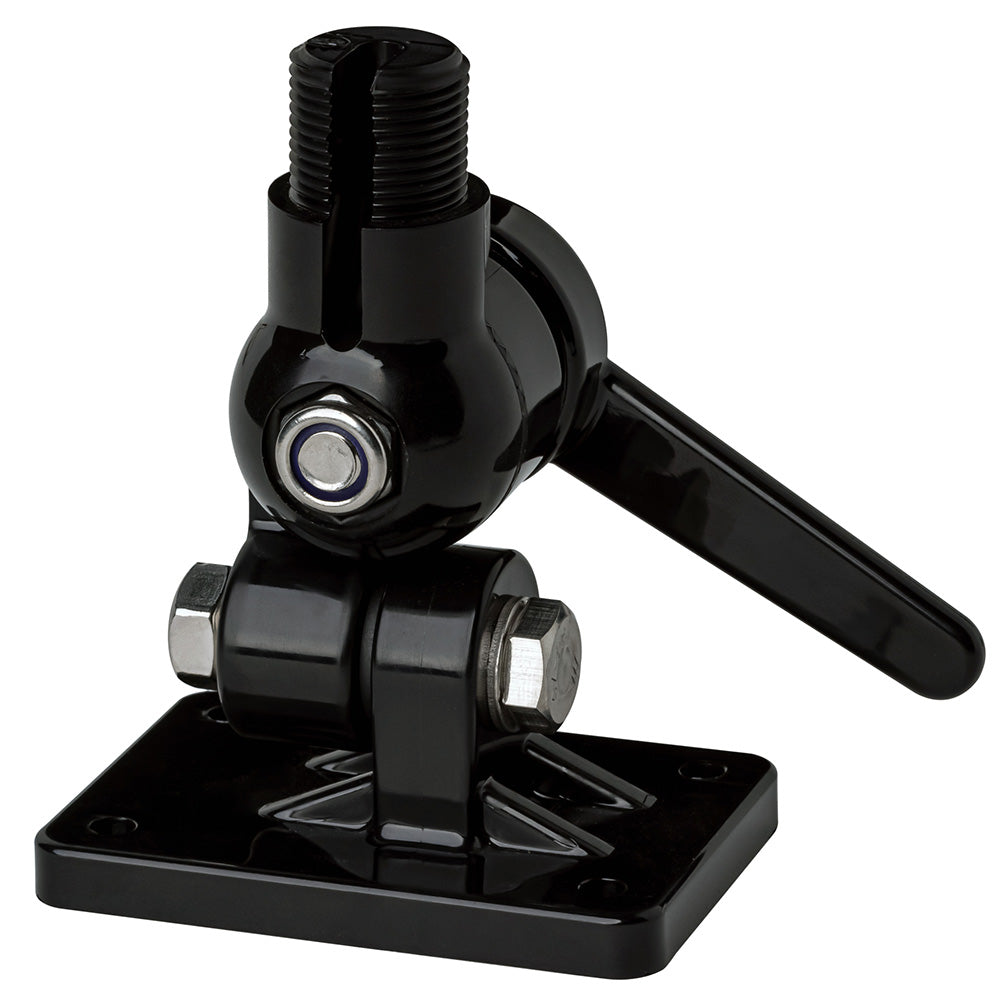

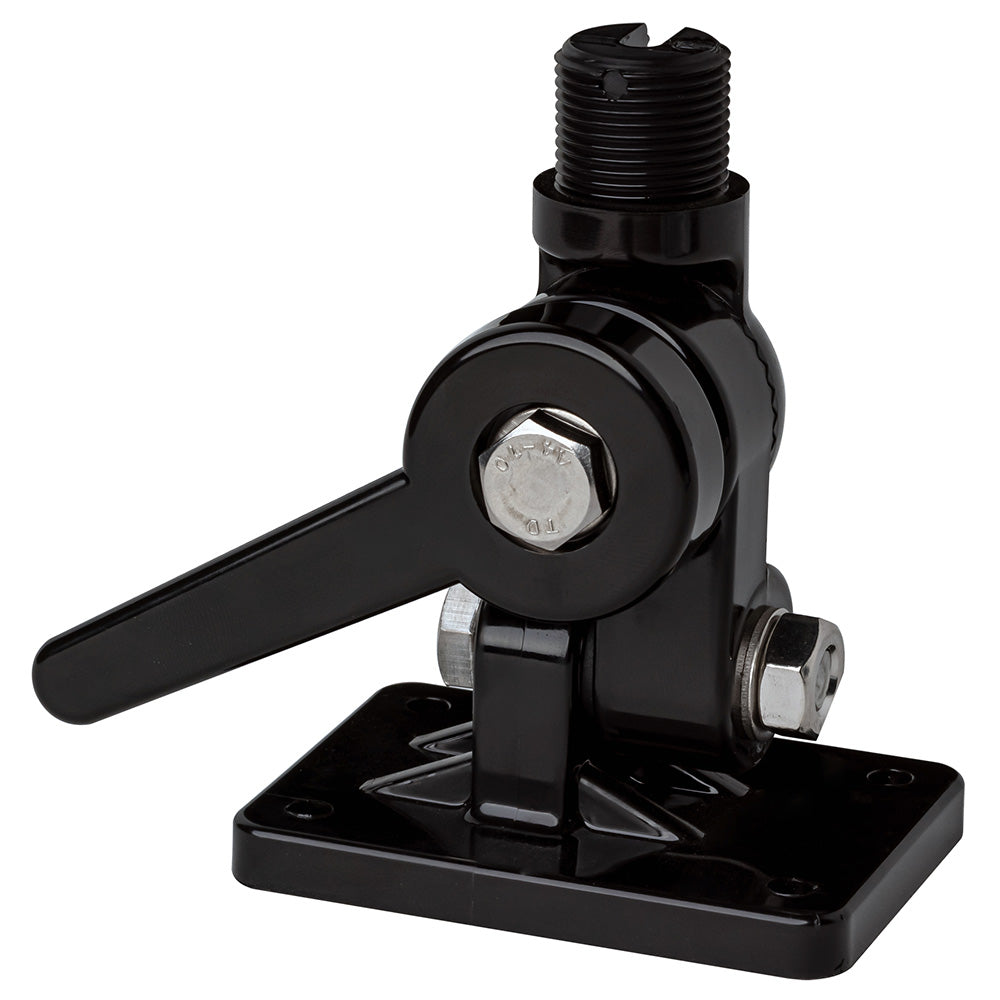

Scout Four-Way Nylon Ratchet Mount - Black for Marine and Antenna Installations - "PF AC NBASE002"

Four-Way Nylon Ratchet Mount - Black

The PA-3 mount is designed for installing the antenna on horizontal, inclined, and vertical surfaces, thanks to its 4-way adjustment that allows it to tilt the antenna correctly. Constructed in UV-resistant reinforced nylon, it allows the antenna to fold down with a simple release of the snap handle. Assembled with A4 stainless steel screws and bolts, it guarantees extraordinary durability and high resistance to rust and salt.

The PA-3 base has a specific slot for the passage of the cable that allows the use of cables with pre-installed connectors. The 6.5 mm wide passage is ideal for coaxial cables such as RG-58, RG-59, and similar.

In addition, the PA-3 base has a safety locking key for the cable passage, which guarantees further strength and completeness. The PA-3 base is ideal for mounting all marine antennas with standard 1 x 14 threads, including all QuickFit range antennas.

Specifications:

• Material: UV-resistant nylon


• Screws Bolts: Inox A4


• Color: Black


• Weight: 390g

The Scout PF AC NBASE002 Four-Way Nylon Ratchet Mount in black is designed for versatile antenna installation on horizontal, inclined, and vertical surfaces. Crafted from UV-resistant reinforced nylon, this mount ensures durability and resistance to harsh weather conditions, including salt and sun exposure. Its innovative four-way adjustment feature allows precise tilting of antennas, facilitating optimal signal reception and transmission. The mount's simple snap handle design enables the antenna to fold down quickly for maintenance or storage, providing convenience and safety during operation. Constructed with A4 stainless steel screws and bolts, the mount guarantees long-lasting strength and corrosion resistance, making it suitable for marine environments and other demanding applications. The base includes a dedicated cable passage slot measuring 6.5 mm wide, compatible with coaxial cables such as RG-58 and RG-59, accommodating pre-installed connectors for streamlined installation. Additionally, a safety locking key secures the cable passage, enhancing overall stability and security. This mount is compatible with all marine antennas featuring standard 1 x 14 threaded fittings, including the entire QuickFit range, making it a versatile choice for various antenna configurations. Whether for boat, RV, or other mobile setups, the Scout Four-Way Nylon Ratchet Mount provides a reliable, durable, and adjustable mounting solution designed to withstand tough conditions and deliver consistent performance.

Features:
* Four-way adjustment for horizontal, inclined, and vertical surface mounting
* Constructed from UV-resistant reinforced nylon for durability
* Fold-down antenna design for easy maintenance
* A4 stainless steel screws and bolts for corrosion resistance
* Cable passage slot accommodates coaxial cables with pre-installed connectors
* Safety locking key for cable passage enhances security
* Compatible with antennas with standard 1 x 14 threaded fittings
