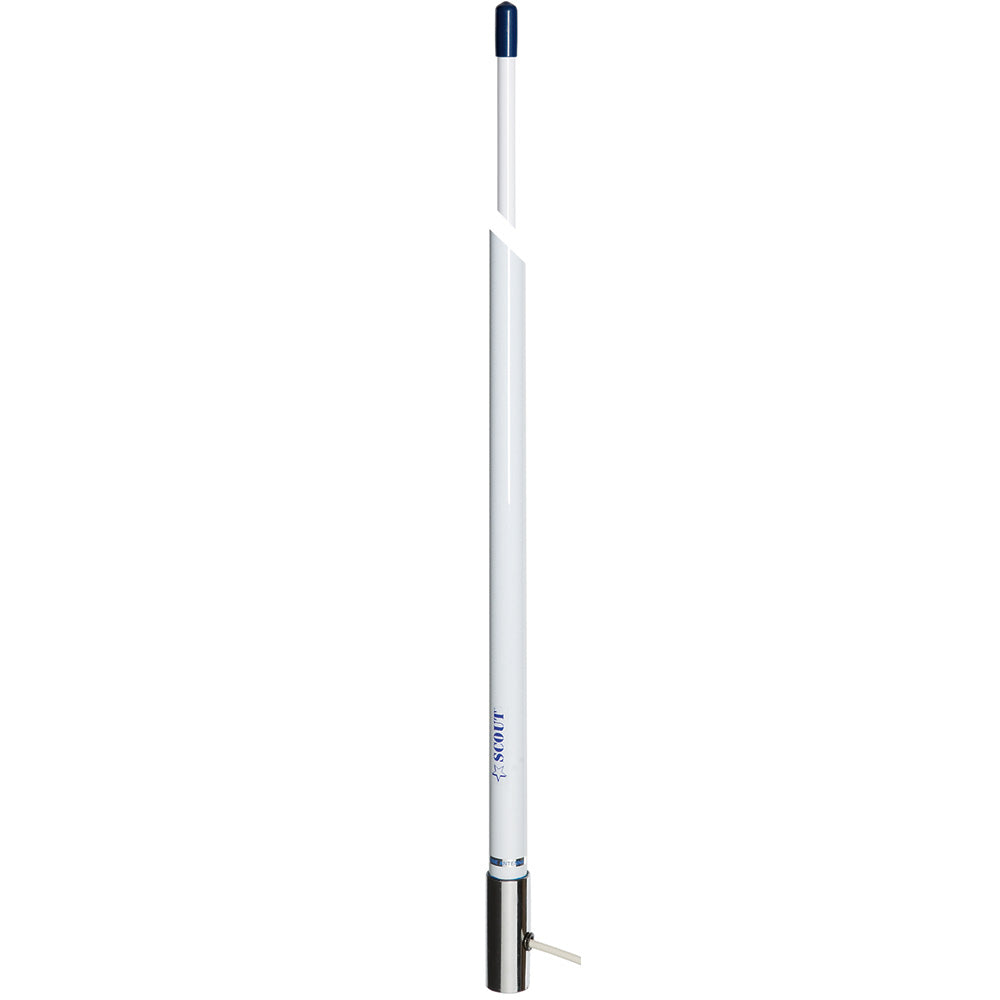

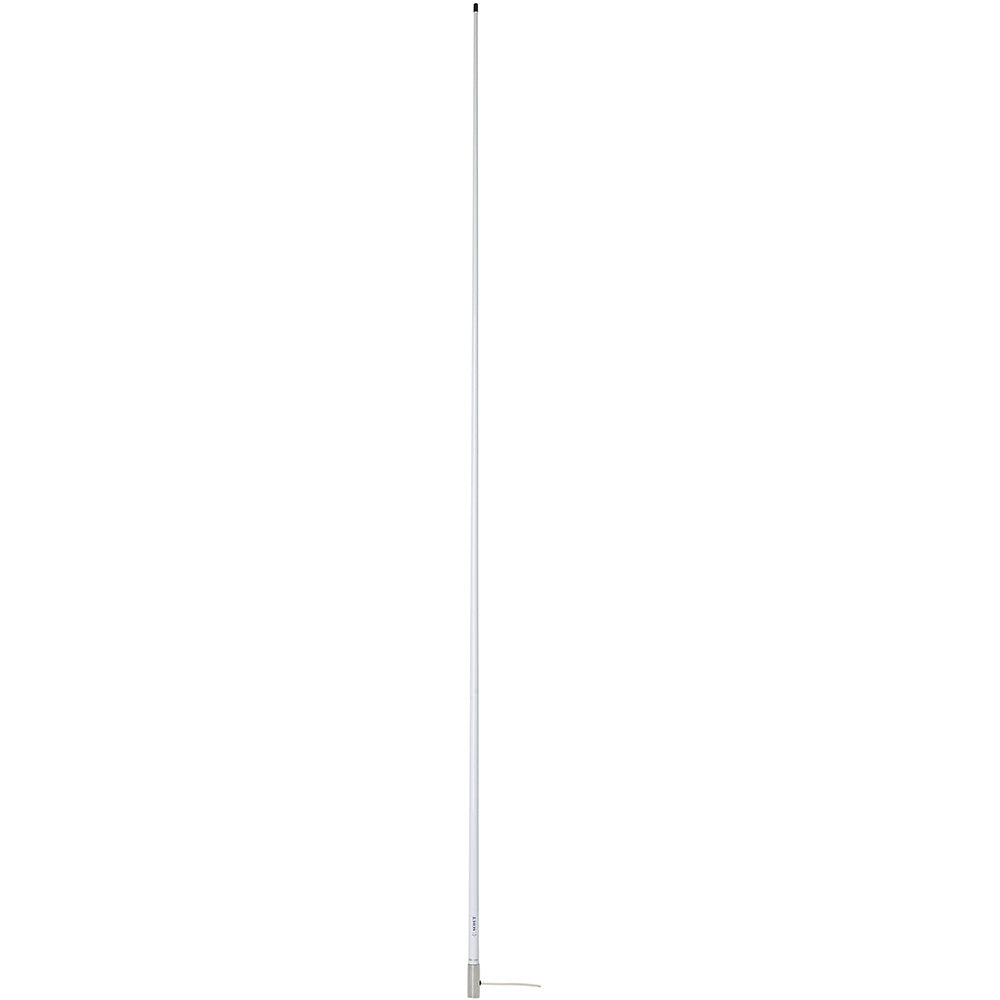

Scout 8' White VHF Marine Antenna with 6dB Gain and 5M RG-58 Coaxial Cable, Part Number PF AN NVHF00007T

8 White VHF Antenna 6dB Stainless Steel Ferrule with 5M RG-58 Coax Includes PL-259 KS-42

The classical 2,4 m (8) VHF marine antenna has been totally redesigned by Scout to set a new benchmark in terms of reliability and performance.

The KS-42 is built with a heavy-duty 1,5 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique. Standard thread 1 x 14, chrome brass ferrule. The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board. Suggested for medium and large-sized boats.

Features:

• Color: White


• Foam injected 100% WATERPROOF IP69


• 5 m coaxial cable RG-58 CU MIL

Specifications:

• Frequency: 156-162 MHz


• Impedance: 50 ohms


• Electrical length: 1/2


• V.S.W.R.: < 1,5:1


• Polarization: Vertical


• Gain: 6 dB


• Max power input: 50 W


• DC ground: Yes


• Whip material: Fiberglass


• Coaxial cable: 5 m (16) RG-58 CU MIL


• Mounting: 1 x 14 thread


• Length: 2,4 m (8)


• Weight: 0,86 kilo

The Scout 8-foot White VHF Marine Antenna (Part Number PF AN NVHF00007T) is engineered for reliable communication on medium and large-sized boats. Featuring a heavy-duty fiberglass whip that measures approximately 2.4 meters, this antenna is designed to withstand harsh marine environments. It is fully foam injected with Scout's waterproof IP69 technique, ensuring durability and consistent performance even in wet conditions. The chrome brass ferrule with a 1 1/4-inch thread provides secure mounting, making installation straightforward and robust. Included with the antenna is a 5-meter RG-58 MIL-CU coaxial cable and a PL-259 connector, facilitating seamless integration with your vessel's communication system. This antenna operates over the frequency range of 156 to 162 MHz and has a 50-ohm impedance, optimized for marine VHF communication channels. With a gain of 6 dB and a maximum power input of 50 watts, it delivers clear, strong signals with a V.S.W.R. of less than 1.5:1, ensuring efficient transmission and reception. The vertical polarization enhances signal strength and quality, while the fiberglass whip combines lightweight durability with corrosion resistance. Weighing approximately 1.9 pounds, the Scout VHF antenna offers a reliable solution for boaters seeking high-performance marine communication. Its design emphasizes waterproofing, ease of installation, and effective signal transmission, making it a valuable addition to any vessel's communication setup.

Features:
* Color: White
* Foam injected for 100% waterproof IP69 protection
* Includes 5 meters of RG-58 MIL coaxial cable
* Heavy-duty fiberglass whip for durability
* Chrome brass ferrule with 1 1/4-inch thread
* Operates over 156-162 MHz frequency range
* Gain: 6 dB for enhanced signal strength
* Maximum power input: 50 watts
* Vertical polarization for optimal signal quality
* Includes PL-259 connector for easy setup
