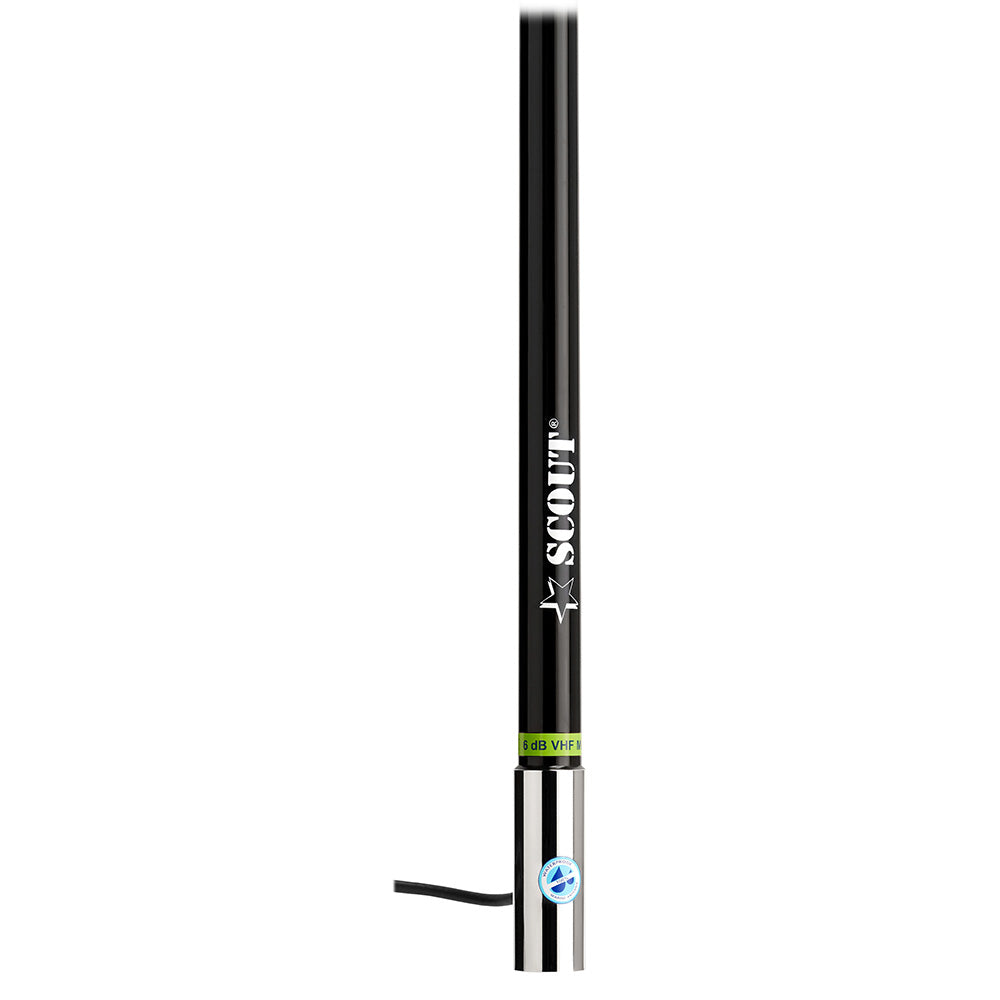

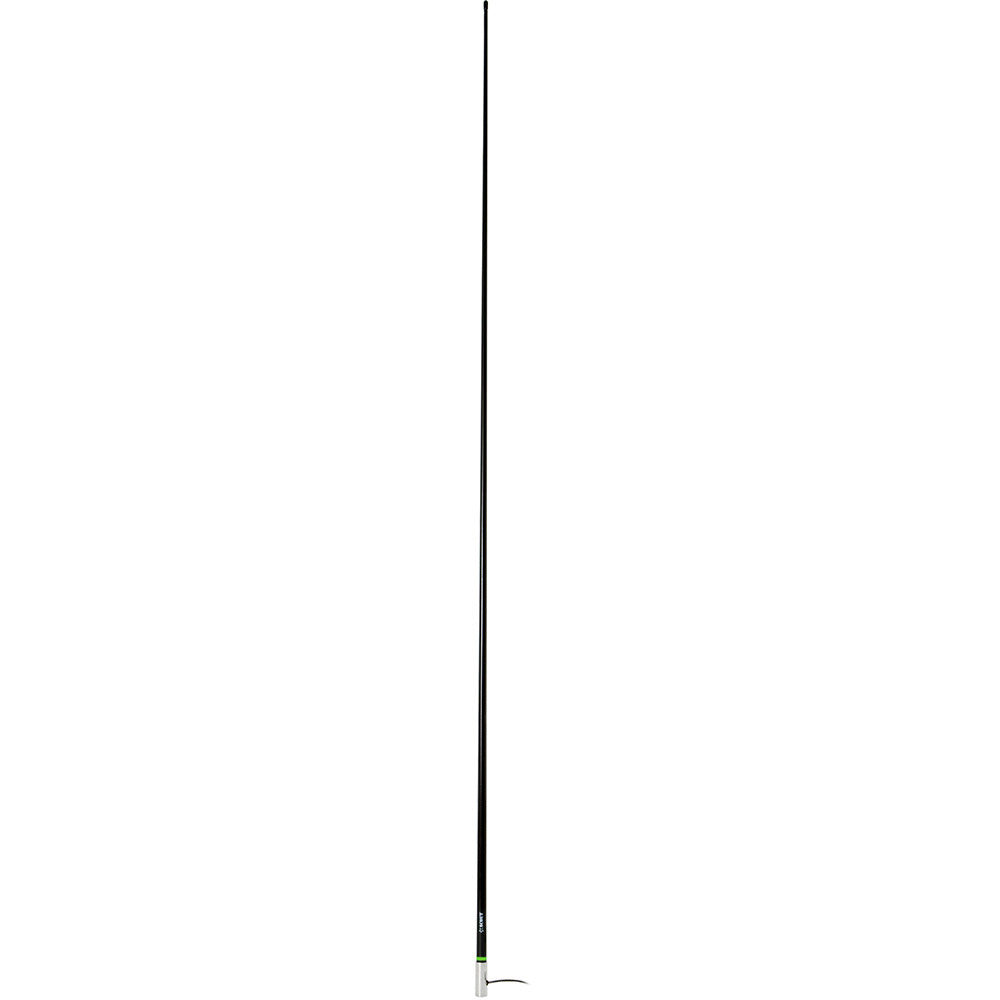

Scout 8' Black VHF Antenna with 6dB Gain and Heavy Stainless Steel Ferrule * Model PF AN NVHF00021T - "PF AN NVHF00021T"

8 Black VHF Antenna 6dB Heavy Stainless Steel Ferrule with 6M RG-8x Includes PL-259 Heavy Duty Offshore Antenna KS-43

The KS-43 Black Edition is the best-performing VHF antenna of the Scout range, specifically designed to guarantee long-range communication and endless duration for boaters who want more than a good VHF antenna. Collinear-phased, made with solid brass and copper elements, and extra heavy-duty fiberglass 1,5 mm thick.

Moreover, the antenna is totally foam injected with the Scout 100% waterproof technique, making it perfectly sealed and with an outstanding resistance to harsh environments. Water, wind, ice, and high speed are good friends. The fiberglass whip is black painted, to make the antenna fit with the most modern boats.

The antenna is supplied with 6m (20) high-performance RG-8X cable with 97% copper braid coverage, which guarantees perfect shielding from external interferences. Stainless steel ferrule with standard 1 x 14 threads to fit on every type of mount (stainless steel/chrome brass mounts are suggested).

Features:

• High-performance 6 dB antenna


• Extra heavy-duty fiberglass whip


• Foam injected 100% waterproof

Specifications:

• Frequency: 156-162 MHz


• Impedance: 50 ohms


• Electrical length: 1/2 + 1/2


• V.S.W.R.: < 1,5:1


• Polarization: Vertical


• Gain: 6 dB


• Max power input: 50 W


• DC ground: Yes


• Whip material: Fiberglass


• Coaxial cable: 6 m (19.6) RG-8X


• Mounting: 1 x 14 thread


• Length: 2,4 m (8)


• Weight: 0,86 kilo

The Scout PF AN NVHF00021T is a high-performance 8-foot black VHF antenna designed for reliable long-range communication in demanding marine environments. Crafted with a collinear-phased design, this antenna features solid brass and copper elements, ensuring optimal signal transmission and durability. Its extra heavy-duty fiberglass whip, which is 1.5 mm thick and black painted, provides a sleek appearance that complements modern boats while delivering unmatched resilience against harsh conditions. Fully foam injected with Scout's 100% waterproof sealing technique, the antenna resists water ingress, making it ideal for offshore and high-speed applications where exposure to elements is frequent. The stainless steel ferrule with a 1 x 14 thread standard allows for easy mounting on various brackets, with suggestions favoring stainless steel or chrome brass mounts for best compatibility. The antenna is supplied with a 6-meter (20 feet) RG-8X coaxial cable, featuring 97% copper braid coverage to ensure excellent shielding from external interference and maintain signal clarity during critical communications. With a gain of 6 dB and an impedance of 50 ohms, this antenna is optimized for frequencies between 156-162 MHz, making it suitable for marine VHF channels. Its electrical length is equivalent to a half-wave plus another half, providing efficient radiation. The antenna's vertical polarization and low VSWR (less than 1.5:1) enhance transmission quality, while a maximum power input of 50 W ensures reliable operation. Weighing approximately 1.9 pounds and measuring 8 feet in length, the Scout VHF antenna is engineered for durability, performance, and seamless integration into your vessel's communication system.

Features:
* High-performance 6 dB antenna for clear long-range communication
* Extra heavy-duty fiberglass whip for durability in tough environments
* Foam injected and 100% waterproof design for reliable offshore use
