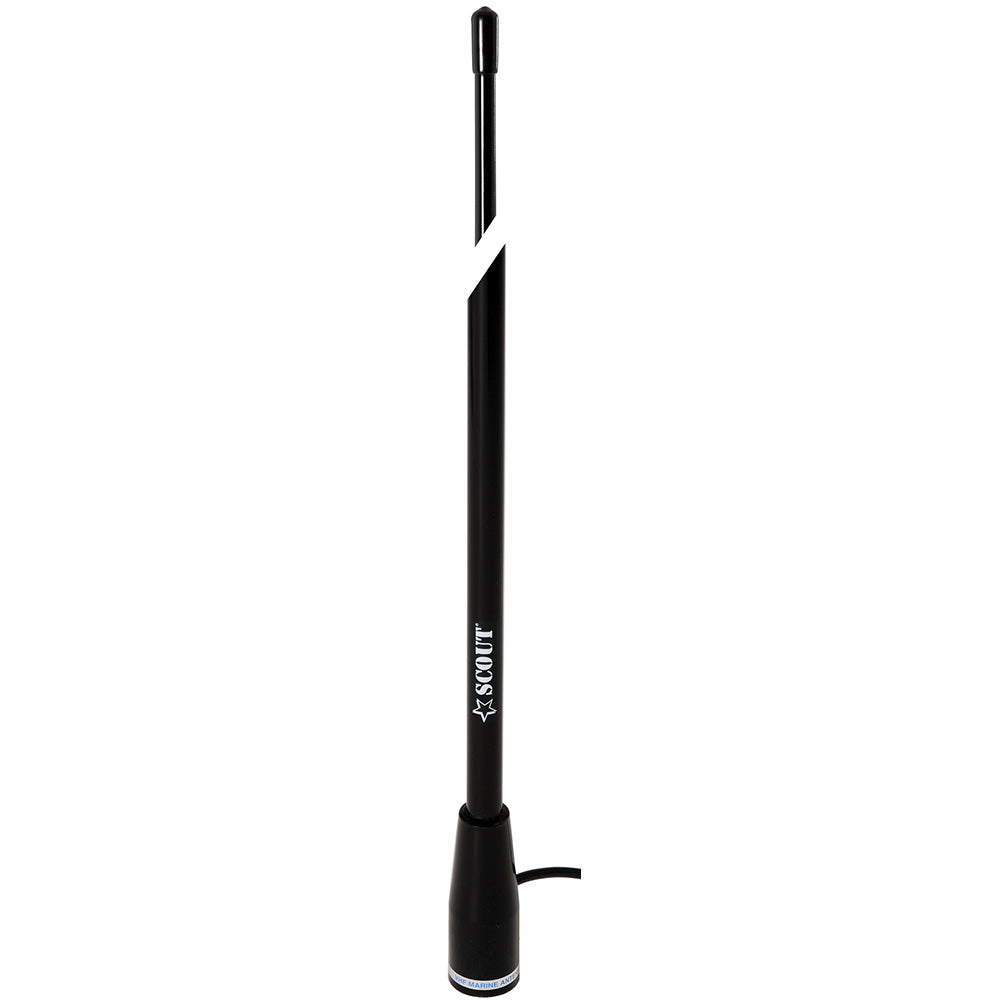

Scout 5' Black VHF Antenna with 3dB Gain and 5M RG-58 Coax - Waterproof Marine Communication Antenna - "PF AN NVHF00004T"

5 Black VHF Antenna 3dB Nylon Ferrule with 5M RG-58 Coax KS-22

Theres no need to introduce this classic of marine communication. The antenna that has become a standard for users now meets the excellence of the patent 100% WATERPROOF.

Its built with a 1,4 mm thick fiberglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and its ice white colored with a high gloss anti-UV filter to prevent color deterioration.

The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.

Features:

• Foam injected 100% WATERPROOF IP69


• AntiUV high gloss finish


• 5 m coaxial cable RG 58 CU MIL

Specifications:

• Frequency: 156-162 MHz


• Impedance: 50 ohms


• Electrical length: 1/2


• V.S.W.R.: < 1,5:1


• Polarization: Vertical


• Gain: 3 dB


• Max power input: 50 W


• DC ground: Yes


• Whip material: Fiberglass


• Coaxial cable: 5 m (16,4) RG 58 CU MIL


• Mounting: 1 x 14 thread


• Length: 1,5 m (5)


• Weight: 0,39 kilo

The Scout 5-foot Black VHF Antenna model PF AN NVHF00004T is designed for reliable marine communication in demanding environments. Crafted with a durable fiberglass whip and a high gloss anti-UV finish, this antenna resists color fading and withstands harsh weather conditions. Its patented foam injection technology ensures a 100% waterproof rating (IP69), making it ideal for continuous exposure to water and moisture. The antenna's compact length and lightweight design make it suitable for a variety of vessels, providing consistent performance without adding significant weight to your setup. The included 5-meter RG-58 MIL-SPEC coaxial cable and PL-259 connector facilitate straightforward installation on board, ensuring a secure and stable connection. This antenna features a 1/2 wave electrical length optimized for marine VHF frequencies, with a 50-ohm impedance and a V.S.W.R. of less than 1.5:1 for efficient signal transmission. Its vertical polarization and 3 dB gain enhance communication clarity over short to moderate distances, supporting up to 50 watts of power. The sturdy mounting thread and lightweight construction make it easy to install on various vessels, providing durability and performance in marine environments. Whether for navigation, safety, or communication, the Scout VHF antenna offers a dependable solution for boaters seeking high-quality, waterproof marine antennas that deliver clear and consistent signal reception.

Features:
* Foam injected 100% waterproof design with IP69 rating
* Anti-UV high gloss finish resists color fading
* Supplied with 5-meter RG-58 MIL coaxial cable and PL-259 connector
