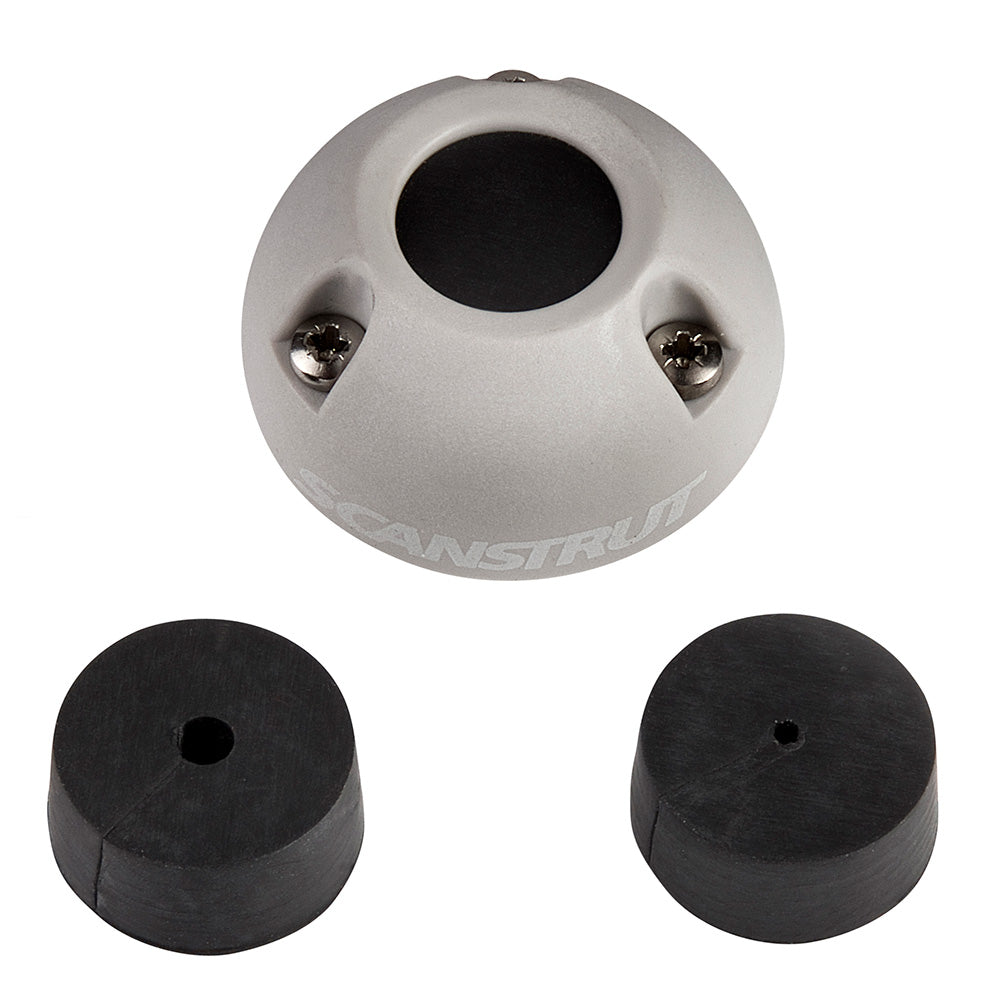

Scanstrut DS16-SL Starlink Compatible Cable Seal - Grey

DS16-SL Starlink Compatible Cable Seal - Grey

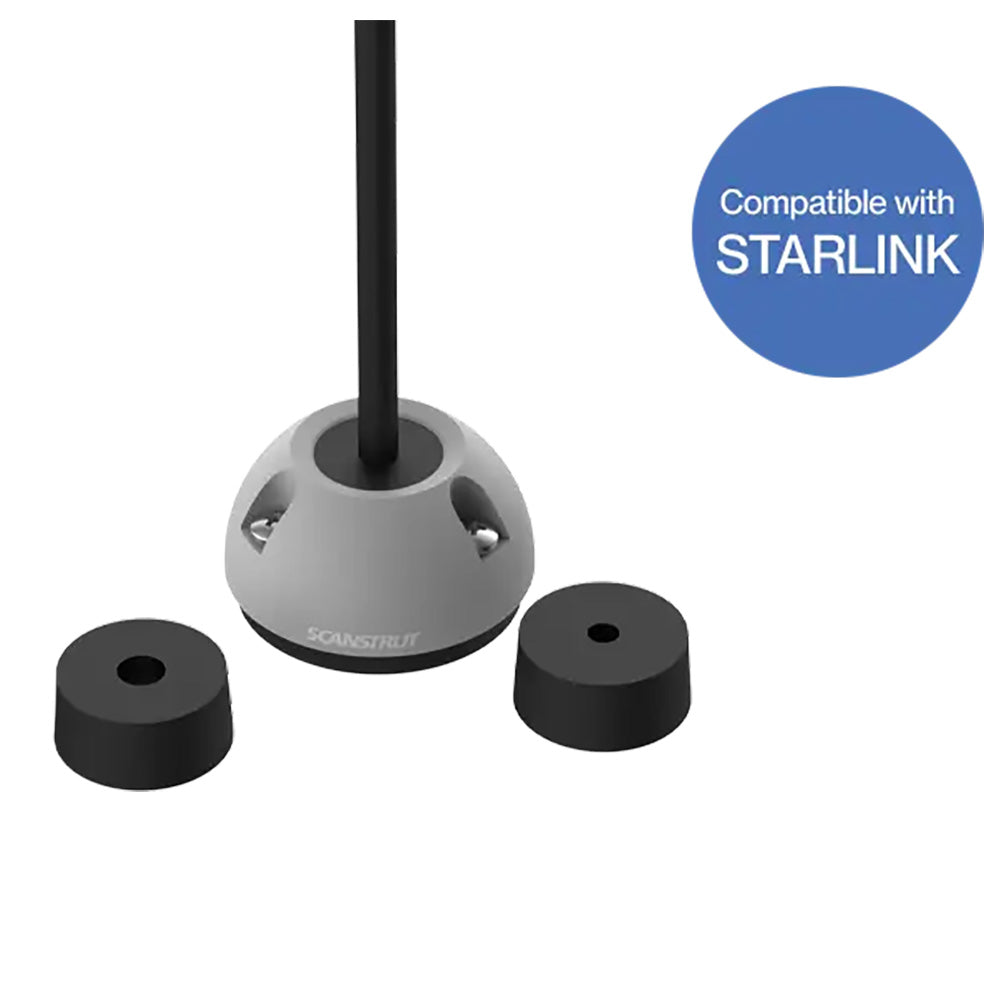

The perfect cable seal to elevate your Starlink installation. This vertical entry cable seal, now compatible with Starlink, is IP68 certified and accommodates sizes from 4-6mm (0.16-0.24), and connectors up to 16mm (0.63).

Designed with ease of installation, the split bung ensures no wire cutting is required. The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.

Multi-Functional Dome Shape

The aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.

Watertight Installation

The tapered bung is supplied with a closed base seal to form a 100% IP68-rated watertight seal.

Easy Reliable Installation

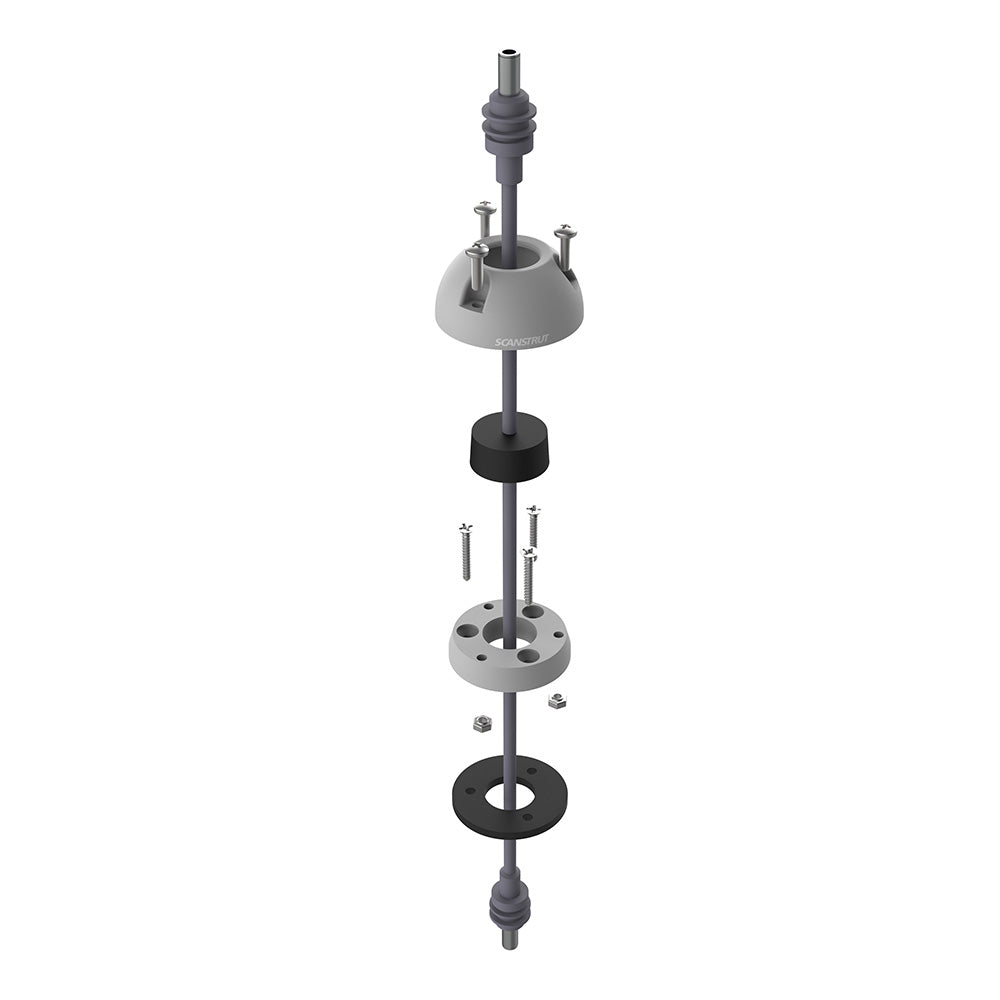

Captive nuts make for easy assembly and allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

Split Bungs

The split-seal option makes installation even easier, as it does not require the connectors to be removed during installation.

Features:

• IP68 waterproof rated


• Made from premium marine-grade UV-stable materials


• Includes 316 stainless steel fixings and a waterproof 3M gasket


• Captive nuts ensure an easy and reliable repeat installation


• No messy sealant on bungs


• Split bungs for ease of installation


• Install connectors up to 30mm (1.18) in diameter


• Fully customizable with self-drill bung options


• 3 bungs- 1x blank, 1x 4mm, 1x 6mm


• Compatible with: Standard (Gen 3) / Standard, Enterprise (Gen 3)/ Enterprise Mini

Specifications:

• Material: High Impact Plastic


• Height: 19mm (0.75)


• Color: Grey


• Diameter of Cable Seal: 39mm (1.18)


• Diameter of Cable: 4 - 6mm (0.16-0.24)


• Bungs: 1 x 4mm (0.16) / 1 x 6mm (0.23) / 1 x Self drill

Compatible with:

• Standard (Gen 3) / Standard


• Enterprise (Gen 3) / Enterprise


• Mini

The Scanstrut DS16-SL is a versatile and reliable cable seal designed specifically for Starlink installations, providing a secure and watertight solution for outdoor connectivity. Constructed from high-impact plastic and marine-grade UV-stable materials, this seal ensures durability and resistance to harsh environmental conditions. Its impact-resistant dome-shaped profile offers enhanced protection against physical impacts and additional water shielding, making it ideal for demanding marine or outdoor applications. The tapered bung, combined with a waterproof 3M gasket and IP68 certification, guarantees a 100% watertight connection, preventing moisture ingress and corrosion over time.

Installation is straightforward and reliable thanks to captive nuts embedded in the base, which facilitate repeated installations without the need for additional sealants or messy procedures. The split bung feature simplifies the process further by allowing connectors to remain connected during installation, saving time and reducing the risk of disconnects or damage. This seal accommodates cable sizes from 4 to 6mm (0.16-0.24 inches) and connectors up to 16mm (0.63 inches) in diameter, providing flexibility for various cable and connector types.

The DS16-SL includes three different bungs*one blank, one 4mm, and one 6mm*to customize the installation based on specific cable requirements. It is compatible with several Starlink models, including Standard (Gen 3), Enterprise (Gen 3), and Mini, making it a versatile choice for different setups. The package also features stainless steel fixings, captive nuts for easy installation, and no need for messy sealants, ensuring a clean and professional installation every time. Whether for fixed or mobile applications, the Scanstrut DS16-SL cable seal offers a robust, easy-to-install, and weatherproof solution to protect your Starlink equipment outside or in exposed environments.

Features:
* IP68 waterproof rated for complete protection against water ingress
* Constructed from marine-grade UV-stable high-impact plastic for durability
* Includes 316 stainless steel fixings and waterproof 3M gasket for secure sealing
* Captive nuts facilitate easy and reliable repeat installations
* No messy sealant required on bungs for cleaner setup
* Split bungs enable installation without disconnecting connectors
* Accommodates cables from 4 to 6mm in diameter and connectors up to 16mm
* Fully customizable with self-drill bung options for various needs
* Includes three bungs: blank, 4mm, and 6mm
* Compatible with Starlink Standard (Gen 3), Enterprise (Gen 3), and Mini models
