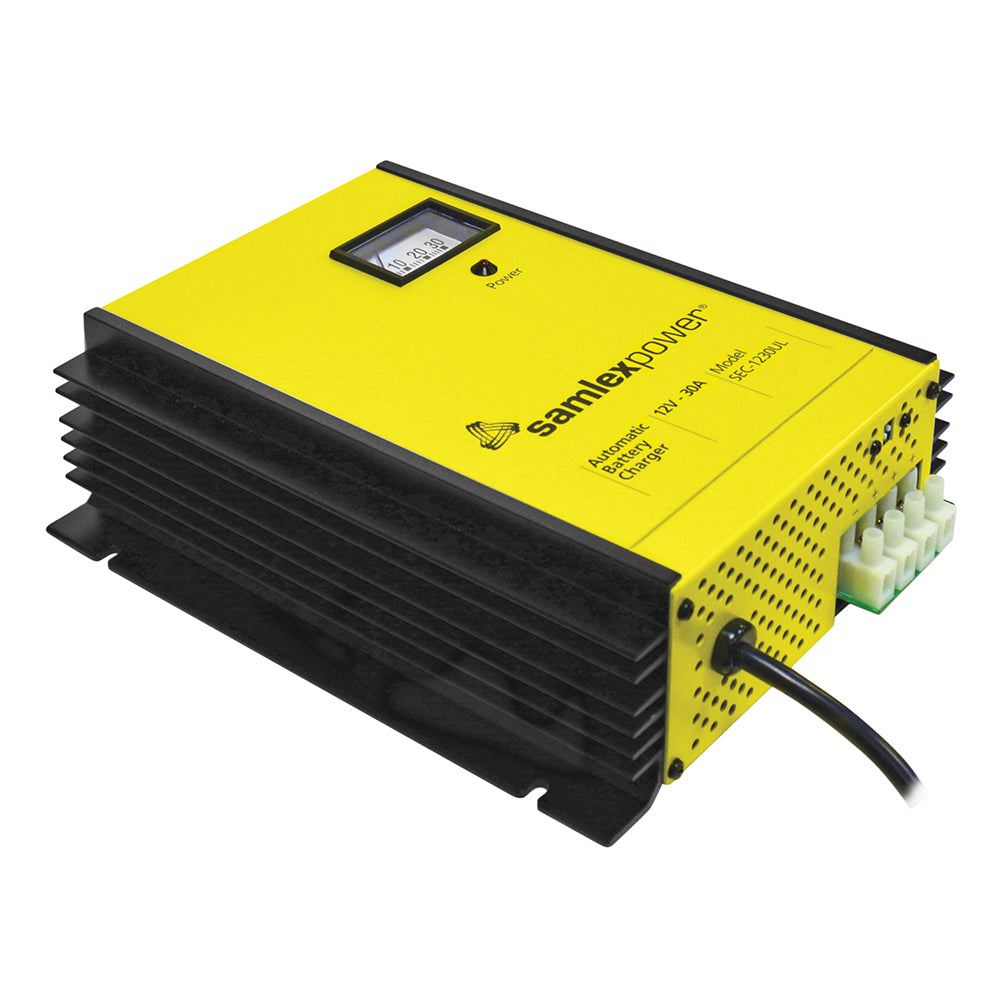

Samlex SEC-1230UL 30A 12V 3-Bank Battery Charger - 3-Stage Charging - SEC-1230UL

30A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs

This advanced fully automatic three-stage 30 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 3 separate battery banks.

Features:

• High efficiency


• Commercial Grade


• Lightweight


• Quiet operation


• Industry Proven Design – 1000s of units in operation


• 2 or 3 stage charging (user selectable)


• 120 or 230 VAC, 50/60 Hz (user selectable)


• Voltage meter display – Ammeter and LED power status


• For all types of Lead Acid batteries


• Charge with a battery load or stand alone


• Use as a power supply or DC UPS


• UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity


• Charge 3 banks of batteries at once – no isolator necessary

Specifications:

• Input: 120 VAC 60 Hz or 230 VAC 50 Hz


• Output: 12 VDC


• Amps: 30 Amps


• Weight: 7 (lbs)


• Weight: 3.17 (kg)


• Dimensions: 10.5 x 8.5 x 3 (in)


• Dimensions: 26.7 x 21.6 x 7.6 (cm)


• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B


• Warranty: 2 Year Limited

Applications:

• Automotive


• Recreational vehicles


• Marine


• Communications sites


• Battery back-up systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex SEC-1230UL 30A Battery Charger is a robust solution designed to efficiently charge all types of 12 Volt lead-acid batteries including Flooded, AGM, and Gel Cell from either a 120 V or 230 V AC source. This fully automatic, three-stage charger is equipped with a user-selectable DIP switch that allows for conversion to a two-stage charging algorithm, making it perfect for batteries connected to a DC load. Additionally, this versatile unit can function as a DC Power Supply, catering to all your charging needs.

Built for performance, the Samlex SEC-1230UL features overload, short-circuit, and over-temperature protection, ensuring safe and reliable operation. This charger allows you to charge up to three separate battery banks simultaneously without needing an isolator, making it an ideal choice for automotive, recreational vehicles, marine applications, and battery backup systems. With its user-friendly voltage meter display and lightweight design, this charger combines convenience with advanced technology to keep your batteries in prime condition.

Features:
* High efficiency for optimal performance
* Commercial-grade construction for durability
* Lightweight design for easy portability
* Quiet operation to minimize noise
* Industry-proven design with thousands of units in operation
* 2 or 3 stage charging options for versatility
* Selectable 120 or 230 VAC input for global use
* Voltage meter display with ammeter and LED power status
* Compatible with all types of lead-acid batteries
* Can charge with a battery load or operate standalone
* Functions as a power supply or DC UPS
* Universal Protection Circuit (UPC) for safety against short circuits, overloads, and reverse battery polarity
* Capability to charge three banks of batteries at once
