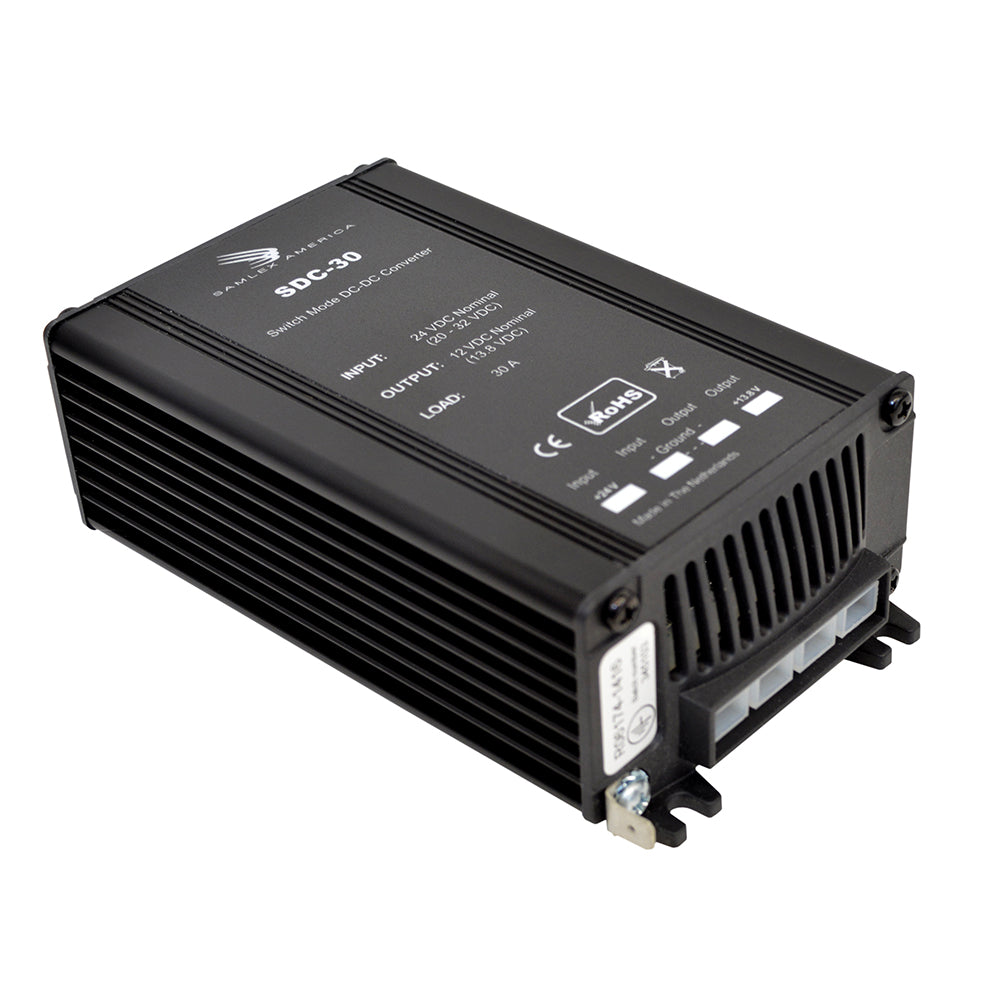

Samlex SDC-30 30A Non-Isolated Step-Down 24VDC-12VDC Converter

30A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.

Features:

• Advanced switchmode design


• Mount in almost any location


• Compact and light weight


• Reverse polarity protection


• High efficiency


• Cycle by cycle current limiting circuit


• Overvoltage protection


• Short circuit protection

Specifications:

• Input: 20-32 VDC


• Output: 13.8 VDC


• Amps: 30 Amps


• Weight: 1.2 (lbs)


• Weight: 0.54 (kg)


• Dimensions: 6 x 3.5 x 1.9 (in)


• Dimensions: 15.2 x 8.9 x 4.8 (cm)


• Warranty: 2 Year Limited

Applications:

• Earth moving equipment


• Heavy trucks


• Buses


• Marine vehicles


• CB radios


• 12 Volt lighting systems


• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex SDC-30 is a high-efficiency, non-isolated step-down DC-DC converter designed to convert a nominal input voltage of 24 VDC (ranging from 20 VDC to 32 VDC) to a highly regulated output of 12 VDC at 30 Amps. Built for negative ground systems, this converter is perfect for various applications including heavy trucks, buses, marine vehicles, and more. With its advanced switch-mode design, it ensures optimal performance and reliability under demanding conditions.

This compact and lightweight converter features essential protections such as overload, over-voltage, reverse polarity, and short circuit safeguards, making it a safe choice for powering sensitive equipment. Its user-friendly design allows for easy mounting in almost any location, making it a versatile solution for your power conversion needs. Experience peace of mind with the Samlex SDC-30, backed by a 2-year limited warranty.

Features:
* Advanced switch-mode design for high efficiency
* Compact and lightweight for easy installation
* Overload and over-voltage protection for enhanced safety
* Reverse polarity protection to prevent damage
* Cycle by cycle current limiting circuit for reliability
* Short circuit protection to safeguard connected devices
