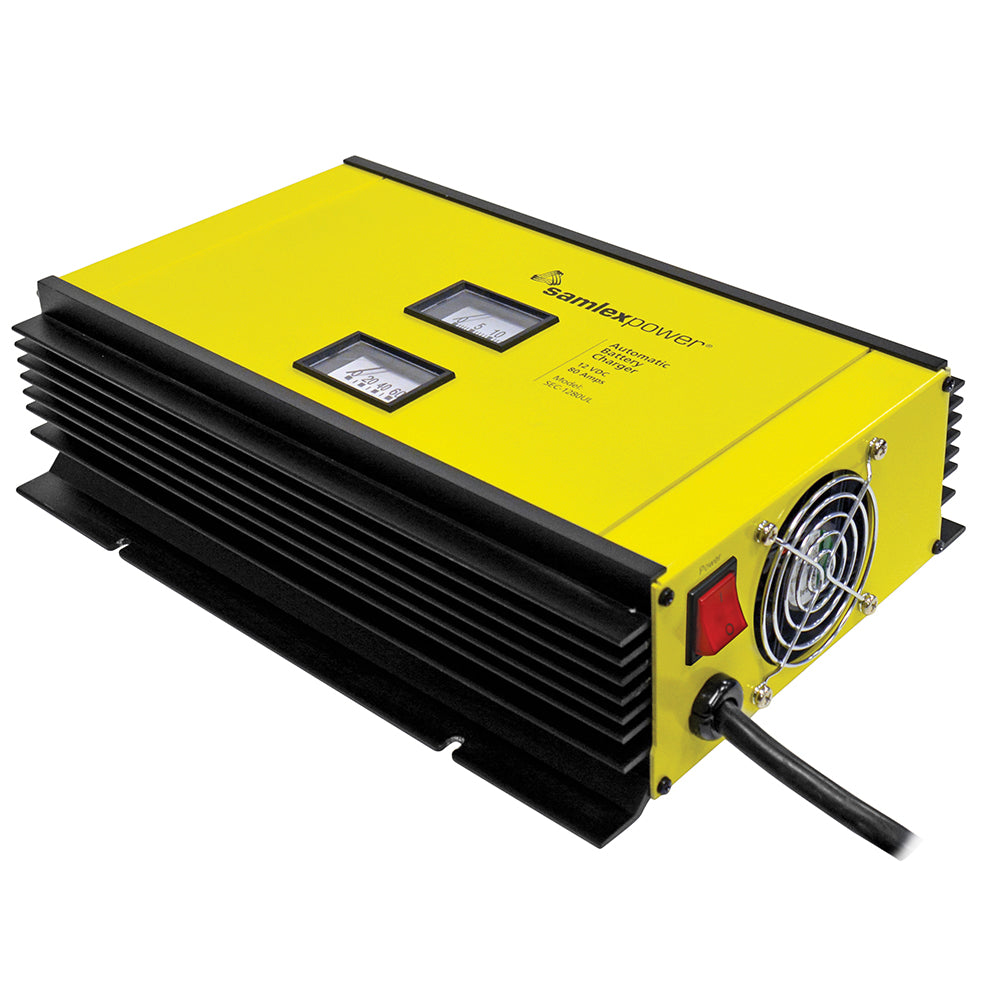

Samlex America SEC-1280UL 80A Battery Charger - 12V - 2-Bank - 3-Stage with Temp Sensor

80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 80 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.

Features:

• Switch mode technology for high efficiency, lightweight and quiet operation


• Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell


• Can charge 2 banks of batteries simultaneously, no isolator necessary


• Can be used as a power supply or DC UPS when used in conjunction with a battery


• User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz


• User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries


• “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries


• Voltmeter and Ammeter for monitoring


• Fan cooled based on output current


• Protections: Short circuit, overload, reverse battery connection and over temperature


• Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively

Specifications:

• Input: 120 VAC 60 Hz or 230 VAC 50 Hz


• Output: 12 VDC


• Amps: 80


• Remote Control: 900-RC


• Weight: 9 (lbs)


• Weight: 4.1 (kg)


• Dimensions: 15 x 9.61 x 3.82 (in)


• Dimensions: 381 x 244 x 97 (mm)


• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B


• Warranty: 2 Year Limited

Applications:

• Automotive


• Recreational vehicles


• Marine


• Communications sites


• Battery back-up systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America SEC-1280UL is an advanced 80 Amp battery charger designed to meet the needs of all types of 12 Volt lead-acid batteries, including Flooded, AGM, and Gel Cell types. This fully automatic three-stage charger works efficiently with both 120 V, 60 Hz and 230 V, 50 Hz AC sources. Equipped with a DIP switch, it allows for easy switching to a two-stage algorithm, making it ideal for charging batteries connected to a DC load. Additionally, this versatile unit can serve as a DC power supply, ensuring you have reliable power when you need it most.

Safety is paramount with the SEC-1280UL, featuring protections against overload, short-circuits, and over-temperature issues. This charger allows you to charge two separate battery banks simultaneously without needing an isolator, making it a smart choice for automotive, marine, and recreational vehicle applications. The inclusion of a temperature sensor adds an extra layer of protection, preventing under or overcharging during temperature fluctuations, ensuring your batteries remain in optimal condition.

Features:
* Switch mode technology for high efficiency, lightweight and quiet operation
* Automatic operation for all lead-acid batteries including Flooded, AGM, or Gel Cell
* Charges two banks of batteries simultaneously without isolator requirements
* Functions as a power supply or DC UPS when used with a battery
* User-configurable AC input voltage of 120 or 230 VAC, 50/60 Hz
* User-selectable via DIP switch for 2 or 3 stage rapid and safe charging
* Half Power Mode reduces maximum charging current for lower capacity batteries
* Voltmeter and ammeter for real-time monitoring
* Fan cooled based on output current to enhance performance
* Comprehensive protections against short circuits, overloads, reverse battery connections, and over-temperature
* Includes a temperature sensor to prevent under/overcharging during temperature variations
