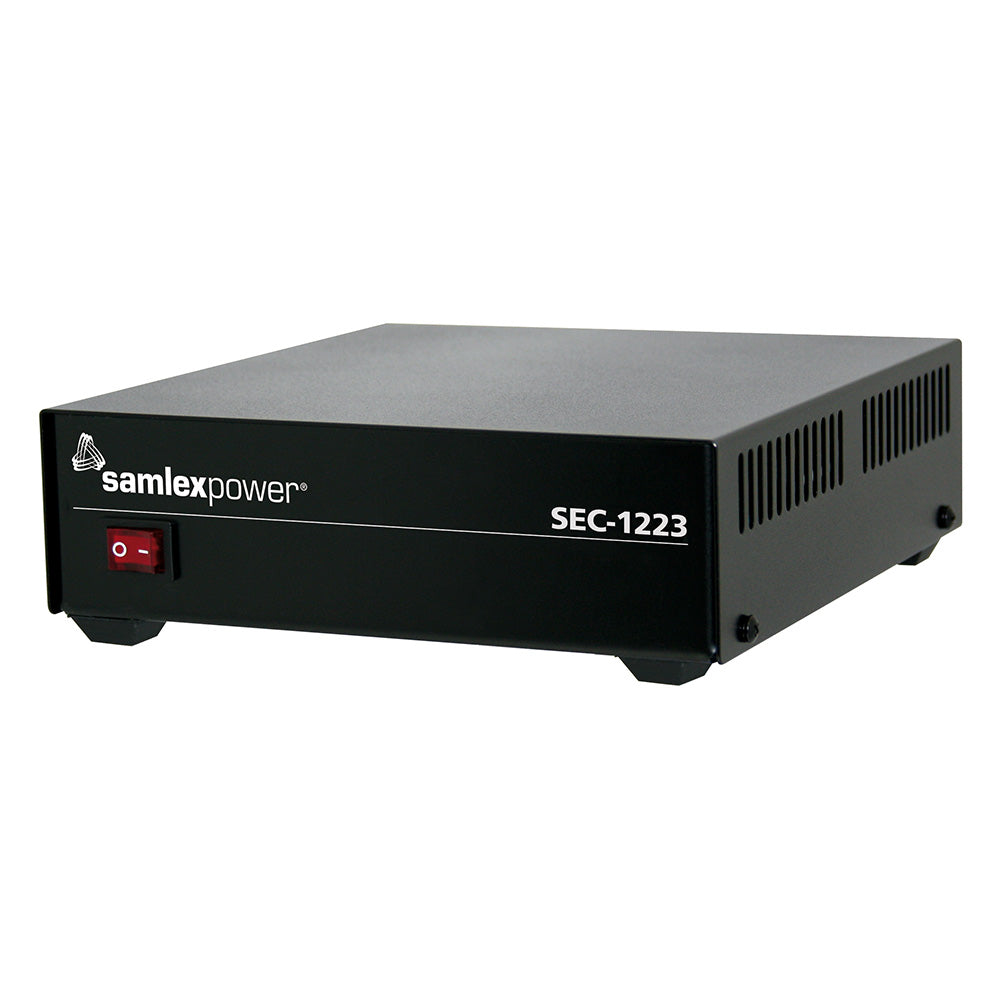

Samlex America SEC-1223 High-Efficiency Power Supply

SEC-1223 Power Supply

This high-efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz. These advanced switch-mode DC power supplies were designed specifically for land mobile radio (LMR) applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit, and over-voltage protection. The AC-DC switching power supply conforms to FCC Part 15(B), class B digital device.

Features:

• Advanced switch-mode technology


• Reliable power with minimum weight and size


• Circuit innovations minimize output voltage ripple and RFI


• Input voltage can be set at 120VAC or 240VAC (internal jumper)


• UL listed to both USA & Canadian safety standards

Specifications:

• Input: 100-130 VAC


• Output: 13.8 VDC


• Amps: 23 Amps


• Fuse: 6.3 Amps


• Weight: 3.5 (lbs)/1.6 (kg)


• Dimensions: 7.28 x 8.19 x 2.40 (in)/18.5 x 20.8 x 6.1 (cm)


• Safety: UL, FCC

Applications:

• Two way radio base stations


• Communications systems


• Security systems


• Test equipment


• Plotters


• GPS receivers


• Automotive & Marine displays


• DC computers


• 12 Volt lighting systems


• OEM applications

The Samlex America SEC-1223 Power Supply is a robust and reliable AC-DC converter designed to meet the demands of land mobile radio (LMR) applications. With a highly regulated output of 13.8 Volts at 23 Amps and an AC input compatible with 120 Volts, 60 Hz, this power supply ensures that your devices receive clean and stable power. Engineered for safety and efficiency, it complies with UL-60950-1 standards and features advanced switch-mode technology to minimize weight and size while delivering superior performance.

Built-in protections such as over-current, short-circuit, and over-voltage safeguards ensure that your connected devices remain secure during operation. The SEC-1223 is equipped with a detachable power supply cord featuring a NEMA 5-15P plug, making it user-friendly and versatile for a variety of applications. Whether you are powering two-way radio base stations, communication systems, or even security setups, this power supply is designed to deliver reliable performance every time.

Features:
* Advanced switch-mode technology for enhanced efficiency
* Reliable power output with minimized weight and compact size
* Circuit innovations to reduce output voltage ripple and RFI
* Input voltage selectable between 120VAC or 240VAC via internal jumper
* UL listed for compliance with USA and Canadian safety standards
