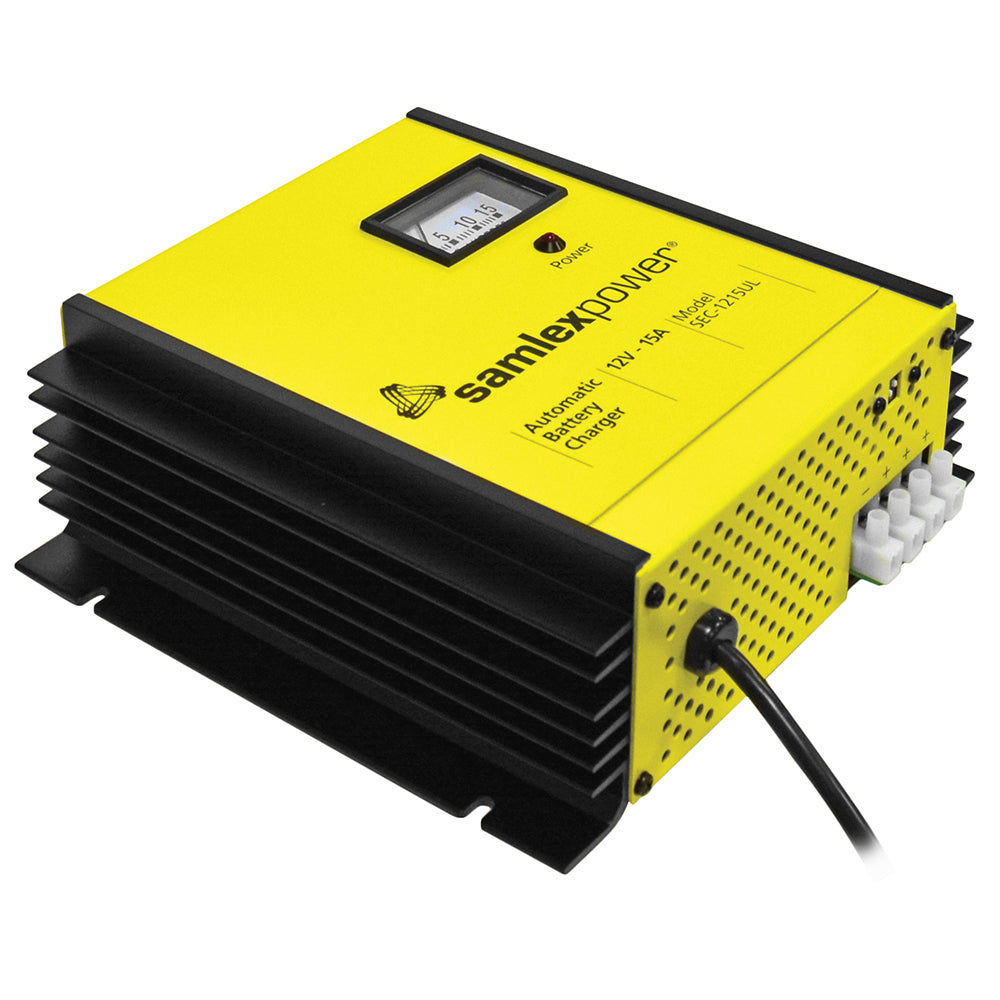

Samlex America SEC-1215UL 15A 3-Bank Battery Charger - 12V - 3-Stage with Dip Switch & Lugs - SEC-1215UL

15A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs

This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short-circuit protection. The unit allows charging of up-to 3 separate battery banks.

Features:

• High efficiency


• Commercial Grade


• Lightweight


• Quiet operation


• Industry Proven Design – 1000s of units in operation


• 2 or 3 stage charging (user selectable)


• 120 or 230 VAC, 50/60 Hz (user selectable)


• Voltage meter display – Ammeter and LED power status


• For all types of Lead Acid batteries


• Charge with a battery load or stand alone


• Use as a power supply or DC UPS


• UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity


• Charge 3 banks of batteries at once – no isolator necessary

Specifications:

• Input: 120 VAC 60 Hz or 230 VAC 50 Hz


• Output: 12 VDC


• Amps: 15 Amps


• Weight: 4.4 (lbs)


• Weight: 1.96 (kg)


• Dimensions: 8.5 x 8.5 x 3 (in)


• Dimensions: 21.6 x 21.6 x 7.6 (cm)


• Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B


• Warranty: 2 Year Limited

Applications:

• Automotive


• Recreational vehicles


• Marine


• Communications sites


• Battery back-up systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America SEC-1215UL is a powerful 15 Amp battery charger designed for 12 Volt lead-acid batteries, including Flooded, Absorbed Glass Mat (AGM), and Gel Cell types. This advanced three-stage charger operates efficiently from either a 120 V, 60 Hz or a 230 V, 50 Hz AC source. Thanks to its user-friendly DIP switch, you can easily switch to a two-stage algorithm for charging batteries connected to a DC load. This versatility also allows the unit to function as a DC Power Supply, making it an excellent choice for various applications.

Built with safety and reliability in mind, the SEC-1215UL features overload and short-circuit protection, ensuring your batteries are charged safely. With the ability to charge up to three separate battery banks simultaneously, this commercial-grade charger is perfect for automotive, marine, and recreational vehicle applications. Experience quiet operation and a lightweight design, backed by an industry-proven track record of thousands of units successfully in operation.

Features:
* High efficiency for optimal battery charging
* Commercial-grade construction for durability
* Lightweight design for easy portability
* Quiet operation ensuring minimal noise disruption
* User-selectable 2 or 3-stage charging options
* Selectable input voltage of 120 or 230 VAC
* Integrated voltage meter display with ammeter and LED power status
* Compatible with all types of lead-acid batteries
* Can charge with a battery load or operate stand-alone
* Functions as a power supply or DC UPS
* Universal Protection Circuit prevents short circuits, overloads, and reverse battery polarity
* Charges three banks of batteries simultaneously without the need for an isolator
