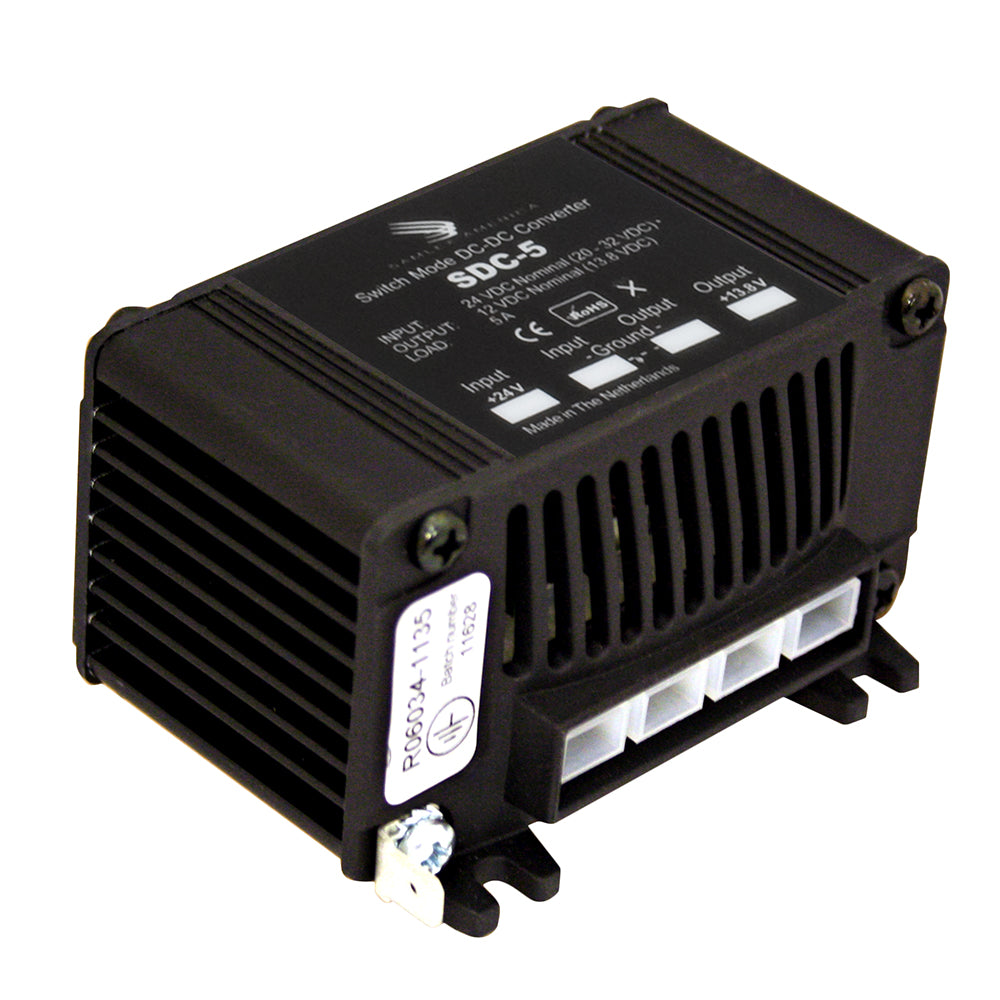

Samlex America SDC-5 5A Non-Isolated Step-Down 24VDC-12VDC Converter

5A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

• Advanced switchmode design


• Mount in almost any location


• Compact and light weight


• Reverse polarity protection


• High efficiency


• Cycle by cycle current limiting circuit


• Overvoltage protection


• Short circuit protection

Specifications:

• Input: 20-32 VDC


• Output: 13.8 VDC


• Amps: 5 Amps


• Weight: 0.4 (lbs)


• Weight: 0.18 (kg)


• Dimensions: 3.5 x 2.75 x 1.75 (in)


• Dimensions: 8.9 x 7 x 4.4 (cm)


• Warranty: 2 Year Limited

Applications:

• Earth moving equipment


• Heavy trucks


• Buses


• Marine vehicles


• CB radios


• 12 Volt lighting systems


• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America SDC-5 is a high efficiency 5A non-isolated step-down converter designed to convert a 24 VDC nominal input voltage to a highly regulated 12 VDC output. This powerful unit operates seamlessly within a voltage range of 20 VDC to 35 VDC, providing a steady output at 13.8 VDC. Engineered for heavy-duty applications, the SDC-5 is perfect for use in negative ground systems, making it ideal for vehicles and equipment that require reliable power conversion.

Featuring advanced switch-mode technology, this compact and lightweight converter can be mounted in virtually any location, ensuring versatility in installation. The SDC-5 comes equipped with essential safety features including reverse polarity protection, overvoltage protection, and short-circuit protection, ensuring your systems are safeguarded against electrical faults. Whether you're powering CB radios, lighting systems, or sound systems, the Samlex America SDC-5 is your go-to solution for dependable power management.

Features:
* Advanced switch-mode design for high efficiency
* Compact and lightweight for versatile mounting options
* Reverse polarity protection to safeguard your equipment
* Cycle by cycle current limiting circuit for added safety
* Overvoltage and short circuit protection for reliable operation
* Designed for heavy-duty applications in various vehicles and equipment
