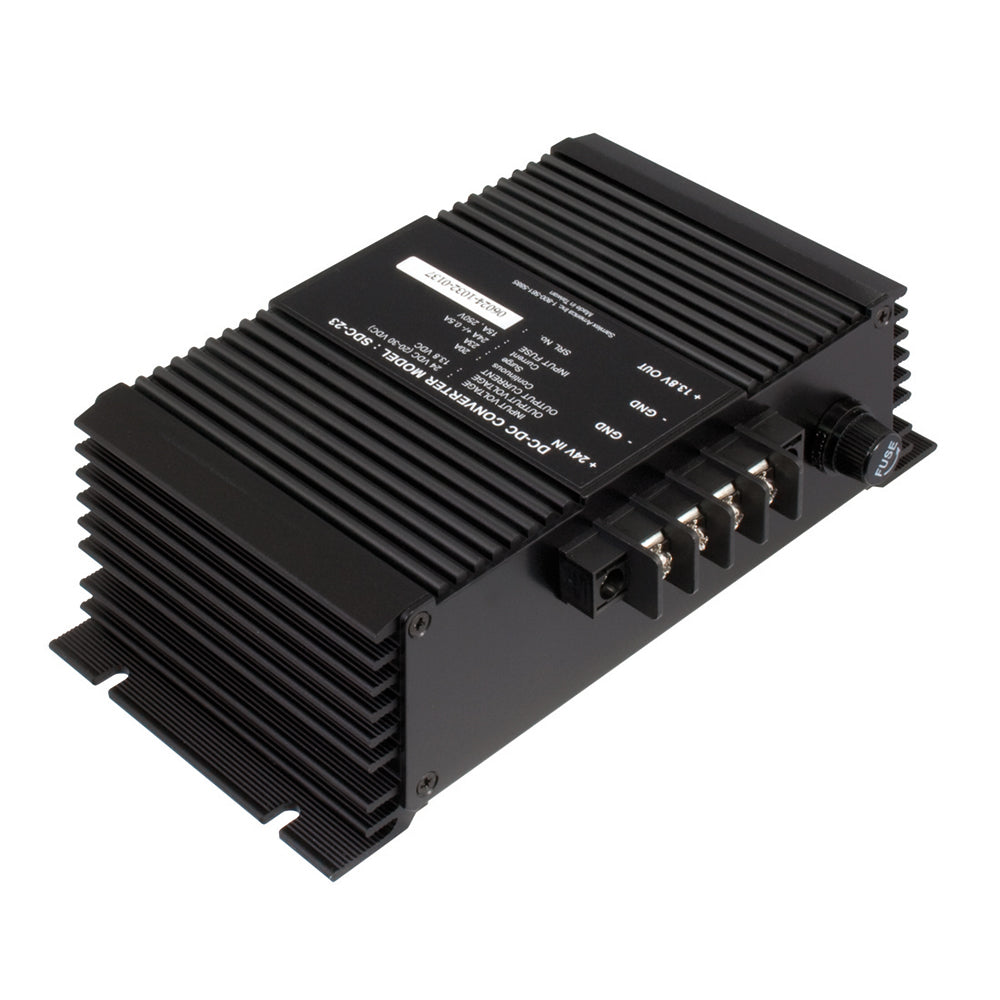

Samlex America SDC-23 20A Non-Isolated Step-Down 24VDC-12VDC Converter

20A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

• Advanced switchmode design


• Mount in almost any location


• Compact and light weight


• Reverse polarity protection


• High efficiency


• Current limiting circuit


• Overvoltage crowbar circuit


• Non-Isolated for negative ground system

Specifications:

• Input: 20-30 VDC


• Output: 13.8 VDC


• Amps: 20 Amps


• Weight: 2.2 (lbs)


• Weight: 1 (kg)


• Dimensions: 7.75 x 4.75 x 2.4 (in)


• Dimensions: 19.7 x 12.1 x 6.1 (cm)


• Warranty: 2 Year Limited

Applications:

• Earth moving equipment


• Heavy trucks


• Buses


• Marine vehicles


• CB radios


• 12 Volt lighting systems


• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America SDC-23 is a high-efficiency, non-isolated step-down DC-DC converter designed to convert a nominal input voltage of 24 VDC (ranging from 20 VDC to 35 VDC) to a reliable output voltage of 12 VDC at 20 Amps. This converter is perfect for heavy-duty applications like earth-moving equipment, buses, and marine vehicles, where a robust and reliable power supply is essential. Built with advanced switch-mode technology, the SDC-23 ensures high efficiency and performance in negative ground systems.

Safety is paramount with the SDC-23; it features comprehensive protection mechanisms including overvoltage protection, short-circuit protection, and reverse polarity protection. Its compact and lightweight design allows for versatile installation options, making it suitable for various applications such as 12 Volt lighting systems and AM/FM sound systems. With a temperature-compensated current limit and output-side overvoltage protection, you can trust the SDC-23 to deliver consistent and safe power to your devices.

Features:
* Advanced switchmode design for high efficiency
* Compact and lightweight for easy installation
* Reverse polarity protection for added safety
* Temperature compensated current limit ensures reliable operation
* Overvoltage crowbar circuit to protect connected devices
* Non-Isolated design suitable for negative ground systems
