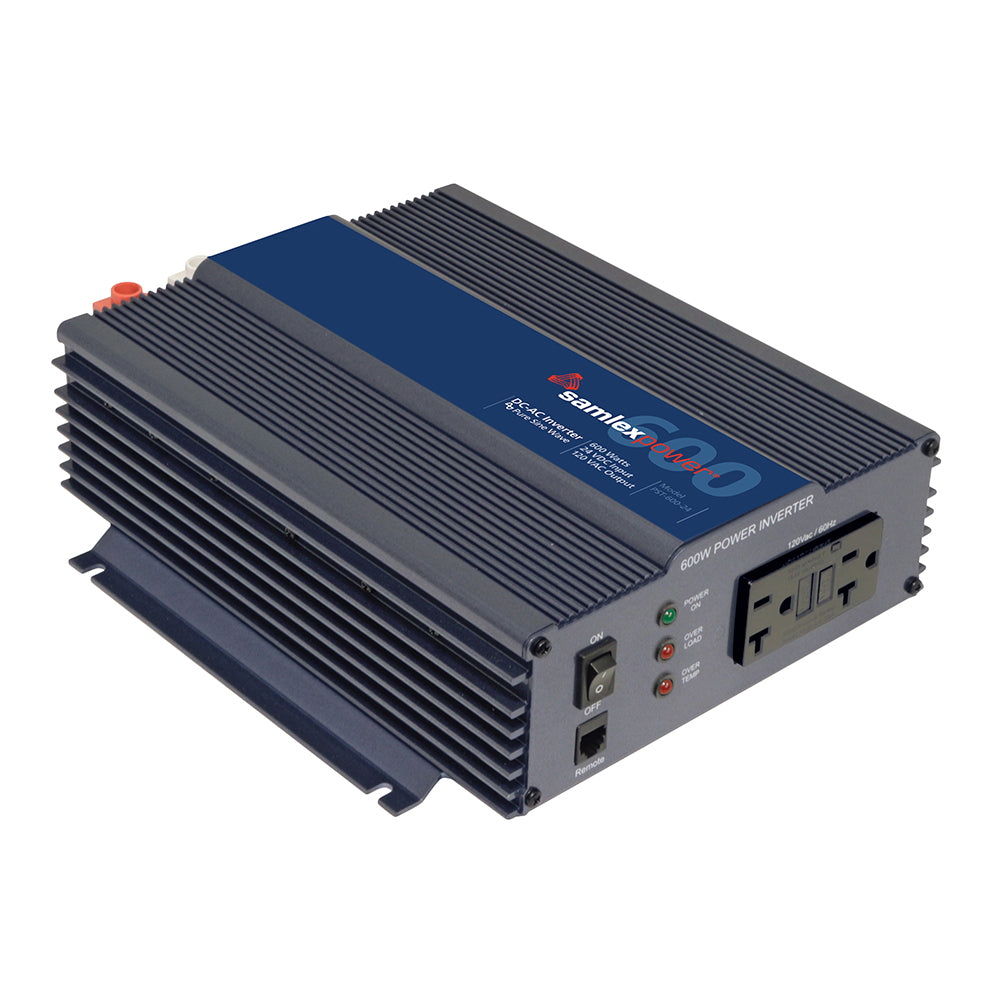

Samlex America PST-600-24 600W Pure Sine Wave Inverter - 24V

600W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 24 Volts DC to 600 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include built-in electronic GFCI, overload protection, low battery alarm / shut down, low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency


• Temperature controlled cooling fan – reduces energy consumption


• Low interference Wide operating DC input range: 21.4 - 33.0 VDC


• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up


• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit


• Low idle power draw


• Dual GFCI protected AC outlets


• Optional remote control (sold separately): Model RC-15A


• Comes with pin-type battery cable lugs


• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VDC


• Output: 120 VAC


• Watts: 600 Watts


• Surge: 1000 Watts


• Remote Control: RC-15A sold separately


• Weight: 5.9 (lbs)


• Weight: 2.7 (kg)


• Dimensions: 9.37 x 10.87 x 3.23 (in)


• Dimensions: 238 x 276.2 x 82 (mm)


• Safety: ETL to UL Standards


• Warranty: 2 Year Limited

Applications:

• Service vehicles


• Mobile Offices


• Boats


• Recreation Vehicles, Camping


• Telecommunication


• Field work / Construction sites


• Solar power systems


• Emergency backup power


• Home electronics: TV, VCR, video games


• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Equipped with dual GFCI protected AC outlets, this inverter delivers clean, stable power for sensitive devices like computers and televisions. With a wide operating DC input range, the PST-600-24 is built for heavy-duty loads and long continuous operation. Its commercial-grade design is perfect for solar power systems and recreational vehicles, ensuring that your devices stay powered wherever you are. Enjoy peace of mind with UL-certified safety features, including low voltage, over voltage, and short circuit protection.

Features:
* High efficiency conversion of 24V DC to 120V AC power
* Temperature controlled cooling fan for reduced energy consumption
* Wide operating DC input range of 21.4 - 33.0 VDC
* Commercial-grade design for heavy-duty loads and extended use
* Universal Protection Circuit (UPC) for comprehensive safety
* Low idle power draw of less than 0.5 Amps
* Dual GFCI protected AC outlets for versatile power access
* Optional remote control available (sold separately): Model RC-15A
* Includes pin-type battery cable lugs for easy installation
* Safety certified to UL standards and FCC compliant
