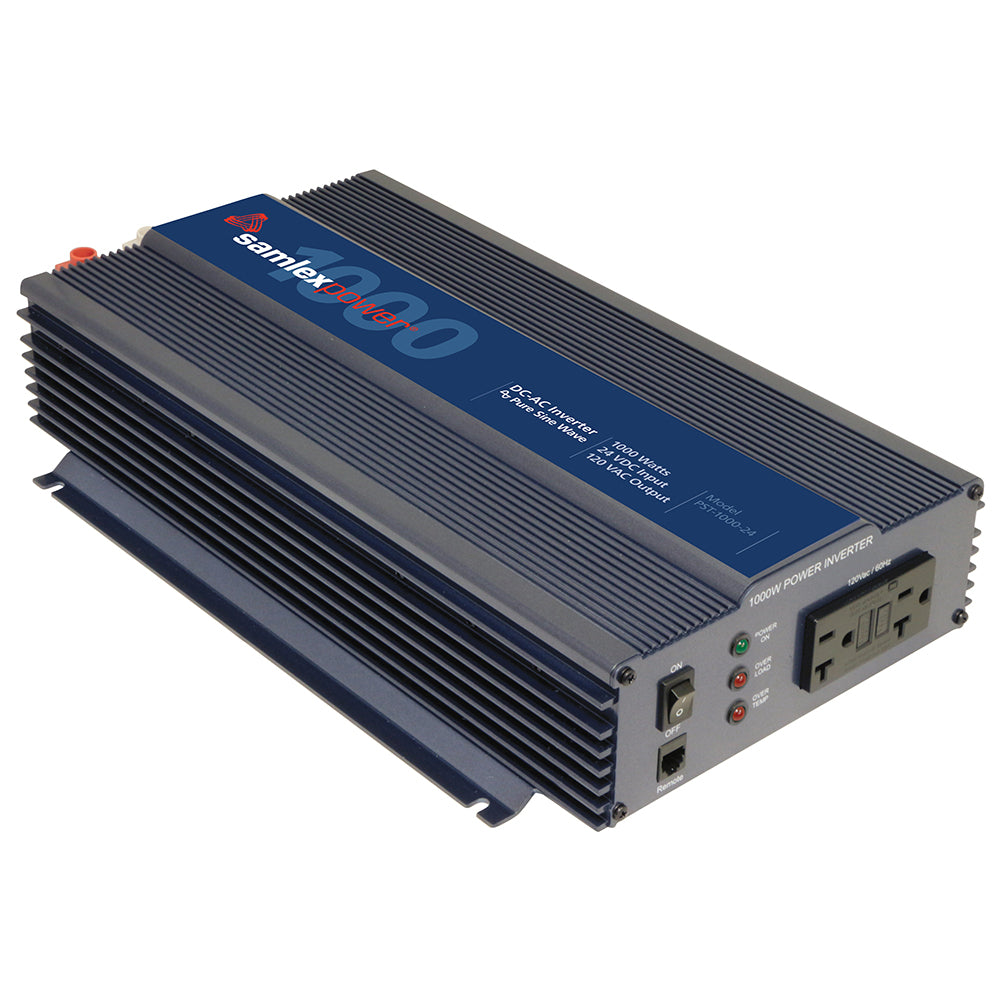

Samlex America PST-1000-24 1000W Pure Sine Wave Inverter - 24V

1000W Pure Sine Wave Inverter - 24V

PST Series (120 VAC)

This high efficiency DC-AC inverter converts 24 Volts DC to 1000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 0.85 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Features:

• High efficiency


• Temperature controlled cooling fan – reduces energy consumption


• Low interference


• Wide operating DC input range: 21.0 - 33.0 VDC


• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up


• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit


• Low idle power draw


• Dual GFCI protected AC outlets


• Optional remote control (sold separately): Model RC-15A


• Comes with pin-type battery cable lugs


• Safety certified to UL standards, FCC compliant

Specifications:

• Input: 24 VDC


• Output: 120 VAC


• Watts: 1000


• Surge: 2000 Watts


• Remote Control: RC-15A sold separately


• Weight: 8.8 (lbs)


• Weight: 4.0 (kg)


• Dimensions: 9.37 x 15.63 x 3.23 (in)


• Dimensions: 238 x 397 x 82 (mm)


• Safety: ETL to UL Standard


• Warranty: 2 Year Limited

Applications:

• Service vehicles


• Mobile Offices


• Boats


• Recreation Vehicles, Camping


• Telecommunication


• Field work / Construction sites


• Solar power systems


• Emergency backup power


• Home electronics: TV, VCR, video games


• Computers, printers

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Equipped with dual GFCI protected AC outlets and a temperature-controlled cooling fan, the PST-1000-24 is designed for heavy-duty loads and long periods of continuous operation. Its commercial-grade design makes it an ideal choice for emergency backup applications and solar power systems. Safety certified to UL standards and compliant with FCC regulations, the Samlex PST-1000-24 inverter is a smart investment for your power needs.

Features:
* High efficiency DC-AC conversion
* Temperature controlled cooling fan reduces energy consumption
* Low interference for sensitive electronics
* Wide operating DC input range: 21.0 - 33.0 VDC
* Commercial grade design suitable for heavy duty loads
* Universal Protection Circuit safeguards against low voltage, over voltage, over temperature, overload, and short circuit
* Low idle power draw for energy efficiency
* Dual GFCI protected AC outlets for safe operation
* Optional remote control available (Model RC-15A sold separately)
* Comes with pin-type battery cable lugs for easy installation
* Safety certified to UL standards and FCC compliant
