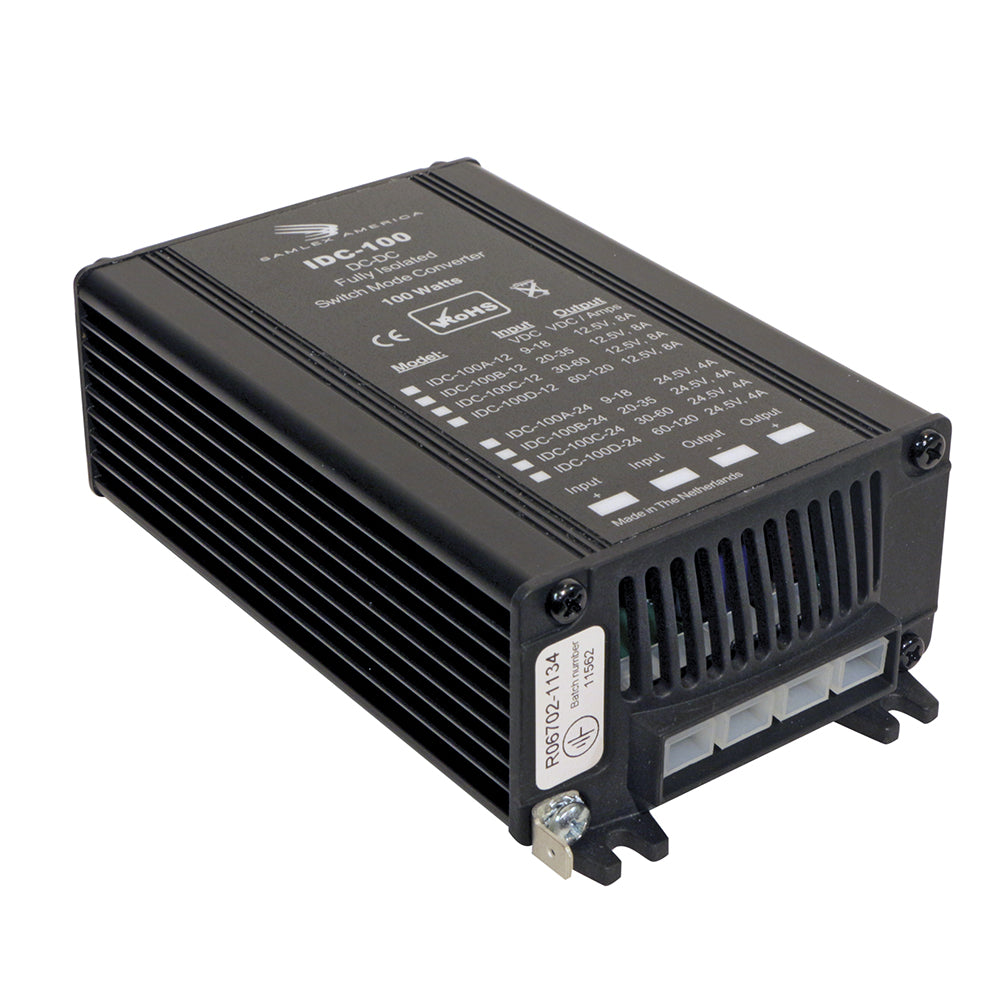

Samlex America IDC-100C-12 100W Fully Isolated DC-DC Converter - 30-60V Input, 12.5V Output - IDC-100C-12

100W Fully Isolated DC-DC Converter - 8A - 30-60V Input - 12.5V Output

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 8 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features:

• Fully Isolated


• Short Circuit Protected


• Current Limited


• 2 Year Warranty


• CE Approved

Specifications:

• Input: 30-60 VDC


• Output: 12.5 VDC


• Amps: 8 Amps


• Weight: 1.2 (lbs)


• Weight: 0.54 (kg)


• Dimensions: 6 x 3.5 x 1.9 (in)


• Dimensions: 15.2 x 8.9 x 4.8 (cm)


• Safety: CE


• Warranty: 2 Year Limited

Applications:

• Earth moving equipment


• Heavy trucks


• Buses


• Marine vehicles


• CB radios


• 12 Volt lighting systems


• AM/FM sound systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Equipped with advanced protection mechanisms, the IDC-100C-12 offers short circuit protection, overheating safeguards, and reverse polarity connection prevention. This makes it a reliable choice for powering sensitive electronics such as CB radios and sound systems. Additionally, the converter meets EMI/EMC standards, ensuring it operates efficiently in a variety of environments. With a two-year warranty and CE approval, you can trust in the quality and durability of this converter for your power needs.

Features:
* Fully isolated design for optimal safety and performance
* Short circuit protection to prevent damage
* Built-in current limiting for enhanced reliability
* Two-year warranty for peace of mind
* CE approved for compliance with safety standards
