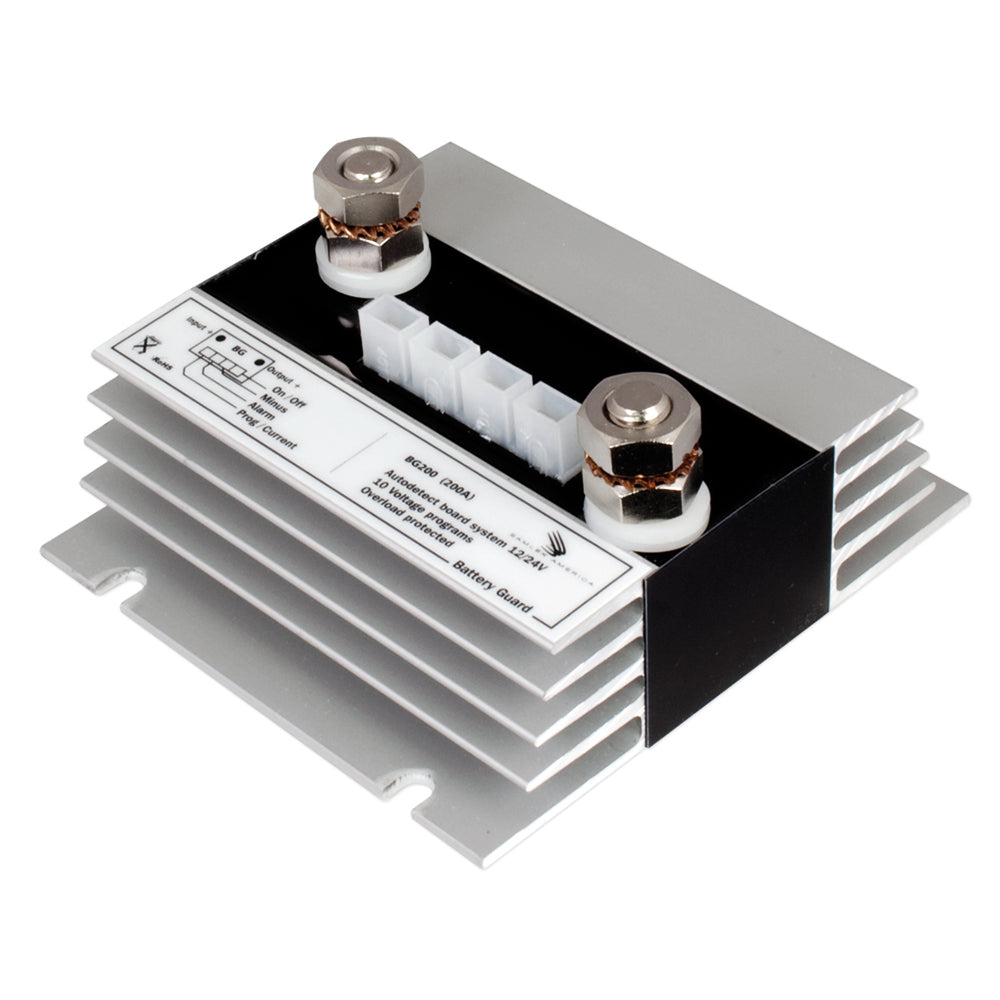

Samlex America BG-200 200A Battery Guard for Voltage Protection

200A Battery Guard

The universal programmable Battery Guard (BG) prevents the excessive discharge of the battery (which would damage the battery) and protects electronic appliances against overvoltage. The BG200 battery guard has an “Automatic Board System Detection”; the BG automatically detects the battery voltage (12 or 24V). The BG200 battery guard is capable of carrying 200A continuous load and 210A transient load. There is a choice out of 10 on/off threshold voltage programs, for both 12V and 24V battery systems, which can be easily programmed.

Features:

• Can be set to connect / disconnect at several different voltages with jumpers


• Batteries last longer


• Prevents damage to connected components


• Prevents excessive voltage caused by faulty alternators or chargers

Specifications:

• Input: 6-35 VDC


• Output: 6-35 VDC


• Amps: 200 Amps


• Weight: 0.4 (lbs)


• Weight: 0.18 (kg)


• Dimensions: 3.25 x 2.38 x 1.5


• Dimensions: 8.3 x 6 x 3.8 (cm)


• Warranty: 2 Year Limited

Applications:

• Marine


• Automotive


• Recreational

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Samlex America BG-200 200A Battery Guard is an essential device designed to protect your batteries and electronic appliances from potential damage due to excessive discharge and overvoltage. This universal programmable guard automatically detects battery voltage for both 12V and 24V systems, ensuring seamless operation. With the capacity to handle a continuous load of 200A and a transient load of 210A, the BG-200 is perfect for marine, automotive, and recreational applications.

One of the standout features of the BG-200 is its user-friendly programming options, allowing you to set on/off threshold voltages according to your needs. The automatic board system detection simplifies setup, making it accessible even for those less experienced with battery management systems. By preventing damage to connected components and extending battery lifespan, the Samlex America BG-200 is a smart investment for anyone looking to maintain their battery systems effectively.

Features:
* Programmable on/off threshold voltage settings for customized protection
* Extends battery life by preventing excessive discharge
* Protects connected components from damage due to overvoltage
* Automatic board system detection for easy voltage recognition
