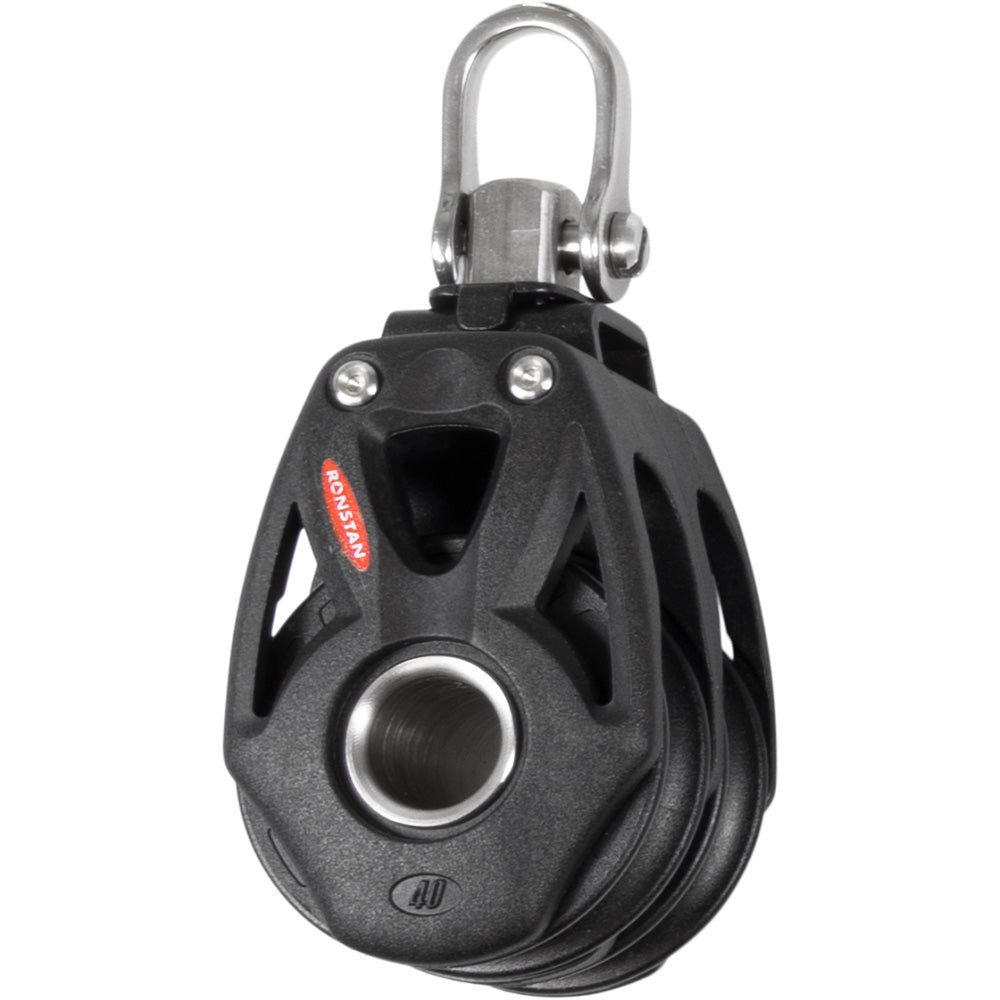

Ronstan RF48200 Series 40 Orbit BB Double Block with Swivel & Shackle

Series 40 Orbit BB Double Block with Swivel & Shackle

The Series 40 ball-bearing Orbit Blocks™ provides the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fiber reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability.

As well as traditional single swivel blocks, the range includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is highly versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the-beach performance catamarans.

Series 40 Orbit Blocks™ are fitted with our carbon-reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and adjustable for setting your preferred cleating angle.

Ball Bearing versions incorporate our 2-stage bearing system using ball bearings to minimize friction and a secondary full-contact bearing to maintain low friction across the full working load range.

High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.

Features:

• Class-leading dynamic and static load ratings


• Lightweight, yet strong. Toughened, glass fiber reinforced nylon replaces stainless steel straps used in our traditional utility blocks


• Low friction 2-stage ball bearing system for efficient and effortless trimming


• Soft attachment, lashing and traditional swivel shackle head options


• Low profile and compact


• High performance cleating

Applications

• Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft)


• Halyard, vang and backstay applications on boats to 9m (30ft)


• Control line applications on larger yachts

Specifications:

• Sheave Ø: 1-9/16 in.


• Max. Rope Ø: 3/8 in.


• Pin Ø: 5/32"


• M.W.L.: 1320 lb.


• B. L.: 2650 lb.


• Weight: 4.2 oz.

The Ronstan RF48200 Series 40 Orbit BB Double Block with Swivel & Shackle is engineered for optimal strength, performance, and reliability. These innovative blocks feature class-leading dynamic and static load ratings, making them the best choice for serious sailors. Constructed from lightweight yet durable toughened glass fiber reinforced nylon, this block is designed to replace traditional stainless steel straps, ensuring maximum performance without compromising on reliability.

With a variety of configurations including single and double sheave lashing, soft attachment options, and multiple sheave blocks, this block is highly versatile. It can be utilized for systems that demand up to a 12:1 purchase mainsheet setup for off-the-beach performance catamarans.

Equipped with Ronstan's proprietary carbon-reinforced C-Cleat* for secure rope holding and easy action from any angle, the cleat arms can be adjusted for your preferred cleating angle, enhancing usability. The double block features a low friction 2-stage ball bearing system that minimizes friction while ensuring smooth operation across varying loads.

This high-load version is tailored for applications that require handling high dynamic or static loads, featuring a high-strength stainless steel sheave and hub along with a triple bearing race to maintain low friction even at maximum loads.

Features:
* Class-leading dynamic and static load ratings for superior performance
* Lightweight and strong construction with toughened glass fiber reinforced nylon
* Low friction 2-stage ball bearing system for efficient and effortless trimming
* Versatile attachment options including soft lashing, traditional swivel, and shackle heads
* Compact and low-profile design for easy integration into various setups
* High-performance cleating for reliable and secure rope handling
