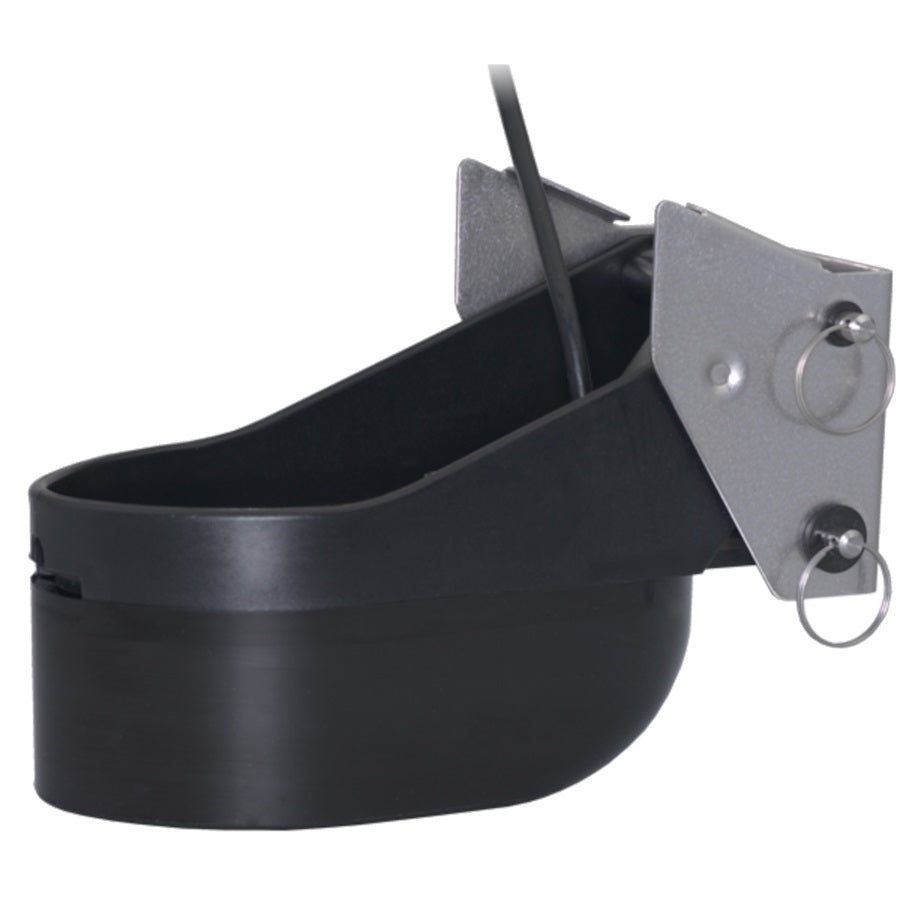

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount - A80804

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount

• Depth and fast-response water-temperature sensing


• 1 kW of power


• High frequency: 150 to 250 kHz - Constant 25° beamwidth - Maximum depth of 152 m (500')


• 100 kHz of total bandwidth from one transducer


• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth


• Stainless steel bracket for installation on outboard or inboard/outboard powered boats


• Recommended for use on planing and displacement hulls


• SEALCAST, seamless, urethane housing for long life in the water


• Also available as thru-hull Tilted Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts


• Patented Xducer ID® technology

Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

Power Rating
1 kW

Transom Angle
3° to 21°

Functions
Depth, Temperature

Max Vessel LOA
Up to 10 m (33')

Acoustic Window
Urethane

Common Use
Leisure/Yachting, Fishing

Freq Hi Wide
150-250 kHz

High-Wide Beamwidth
25°

Housing
Urethane/Stainless Bracket

Hull Material
Compatible w/ all hull materials

Max Depth
150 m (500')

Mounting Style
Transom

Retractable housing
No

Single or Dual Frequency
CHIRP-Ready Single-Band

Tilted Element
No

Weight:
4.2 kg (9.2 lb.)
