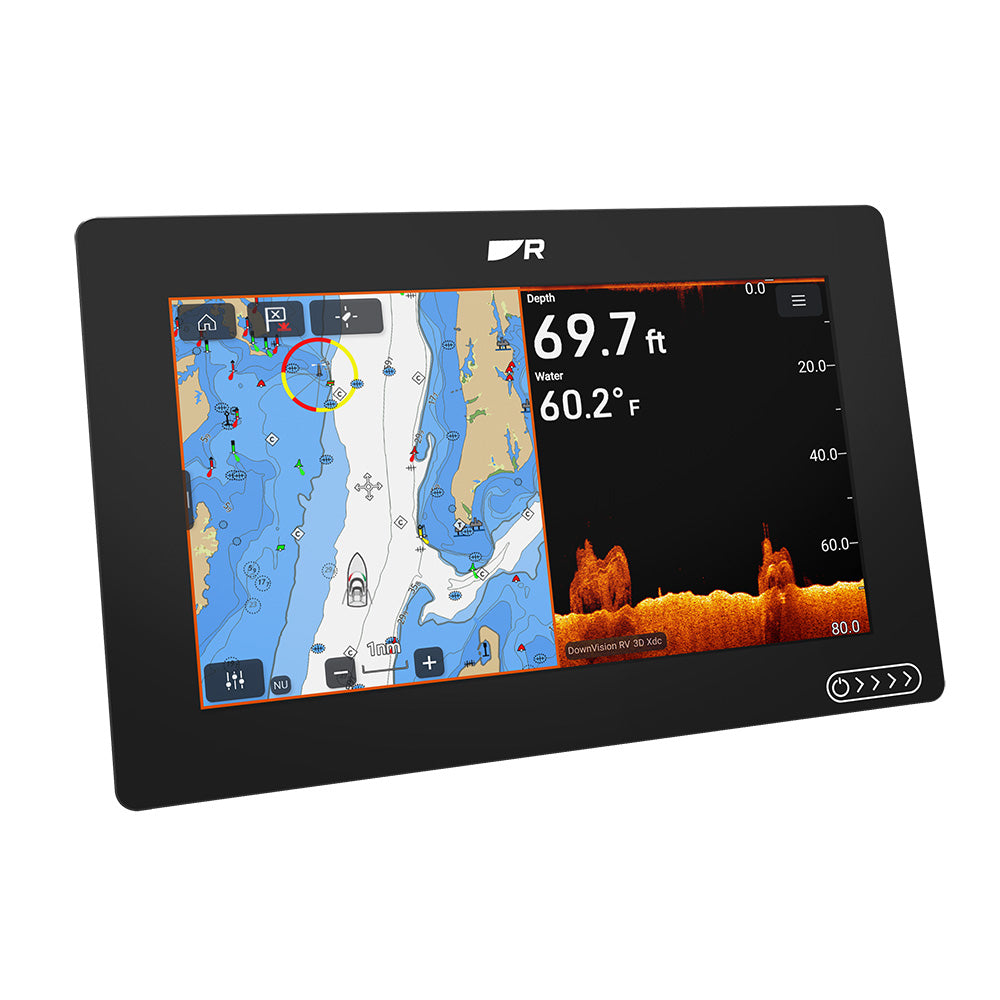

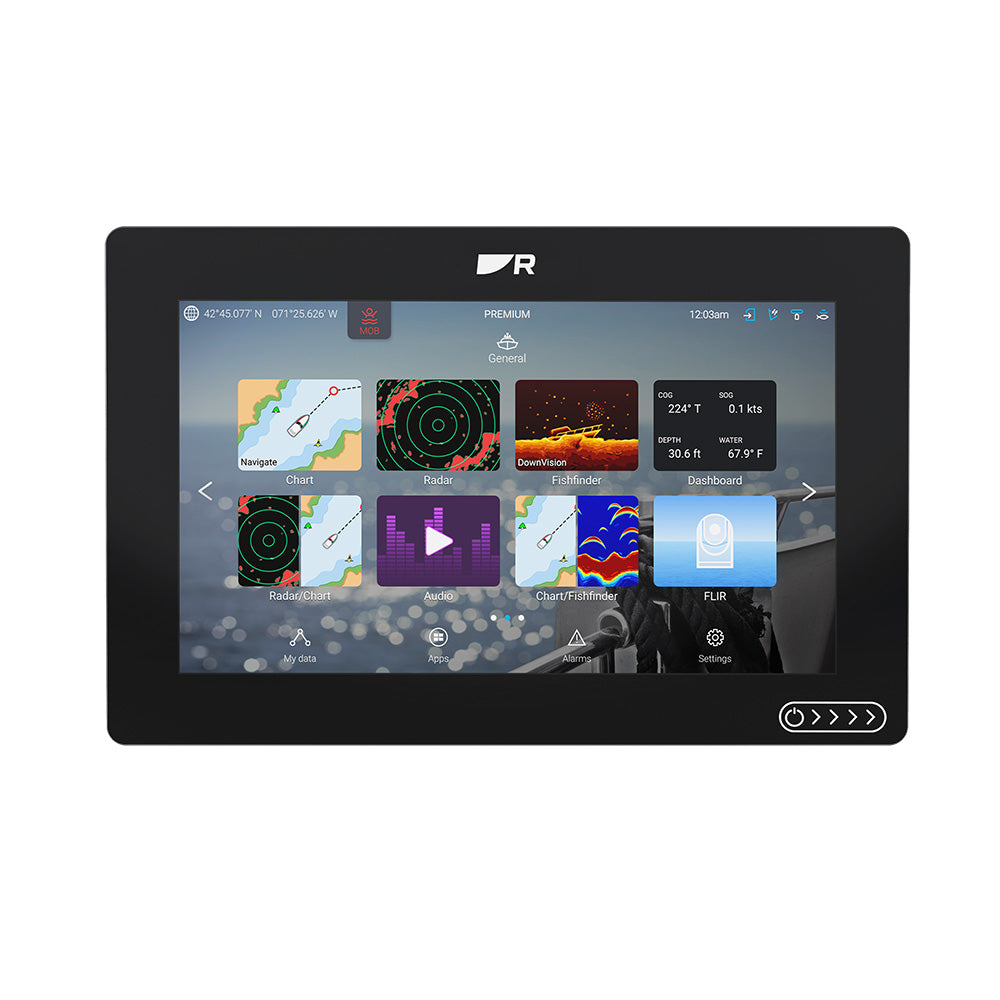

Raymarine Axiom 2 RV 9-inch Chartplotter Fishfinder with RealVision 3D Sonar and Lighthouse North America Charts - E70723-03-102

Axiom 2 RV 9 Chartplotter/Fishfinder with RealVision 3D Sonar, Lighthouse North America Chart RV-100 Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 10.43 (W) x 7.39 (H) x 7.01 (D)
• Dimensions (Surface / Flush mounted) - 9.61 (W) x 6.21 (H) x 7.01 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 11.98W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 9 (diagonal), IPS
• Resolution - HD 1280 x 720
• Brightness/luminance - 1500 bits / 1500 cd/m
• Protective Coating - HydroTough (Oleophobic)
• Transducer - 1x 25-pin RealVision connector
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot
• Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz 5%), SideVision: (70 W / 350 kHz 5%), DownVision: (35 W / 350 kHz 5%), CHIRP High: (100 W / 200 kHz 5%)

The Raymarine Axiom 2 RV 9-inch chartplotter and fishfinder combines advanced navigation technology with powerful sonar capabilities, making it an excellent choice for anglers, cruisers, and boaters seeking reliable performance. Featuring a rugged, marine-ready design backed by a 3-year warranty, this device is built to withstand harsh weather conditions while providing clear, high-brightness display visibility even in direct sunlight. The 9-inch HydroTough IPS touchscreen offers high-resolution imaging with brightness levels up to 1,800 nits, ensuring all-day readability in various lighting conditions. Powered by LightHouse OS, the interface is intuitive, with access to over 30 LightHouse apps that enhance functionality and customization for your specific needs.

Features:

• Rugged all-weather, marine-ready design with a 3-year warranty for durability in harsh marine environments

• Powerful 6-core processor delivers faster chart rendering, quick startups, and smooth networking and video performance

• High-brightness 9-inch HydroTough IPS touchscreen with up to 1,800 nits for excellent visibility in bright sunlight

• Powered by LightHouse OS providing an intuitive interface and access to a suite of over 30 LightHouse applications

• RayNet Gigabit Ethernet enables high-speed integration of radar, cameras, sonar, and other accessories

• 64 GByte onboard storage for apps, charts, videos, and user data

• Broad chart compatibility, including Lighthouse Charts Gen 2, Navionics, C-MAP, and more

• Built-in GPS / GNSS receiver with fast 10 Hz position updates for accurate navigation

• Smart vessel monitoring and control features, including engine integration, NMEA 2000, and digital switching support

• RealVision 3D sonar allows detailed underwater imaging with 70W power and 350 kHz frequency for comprehensive fishfinding and mapping
