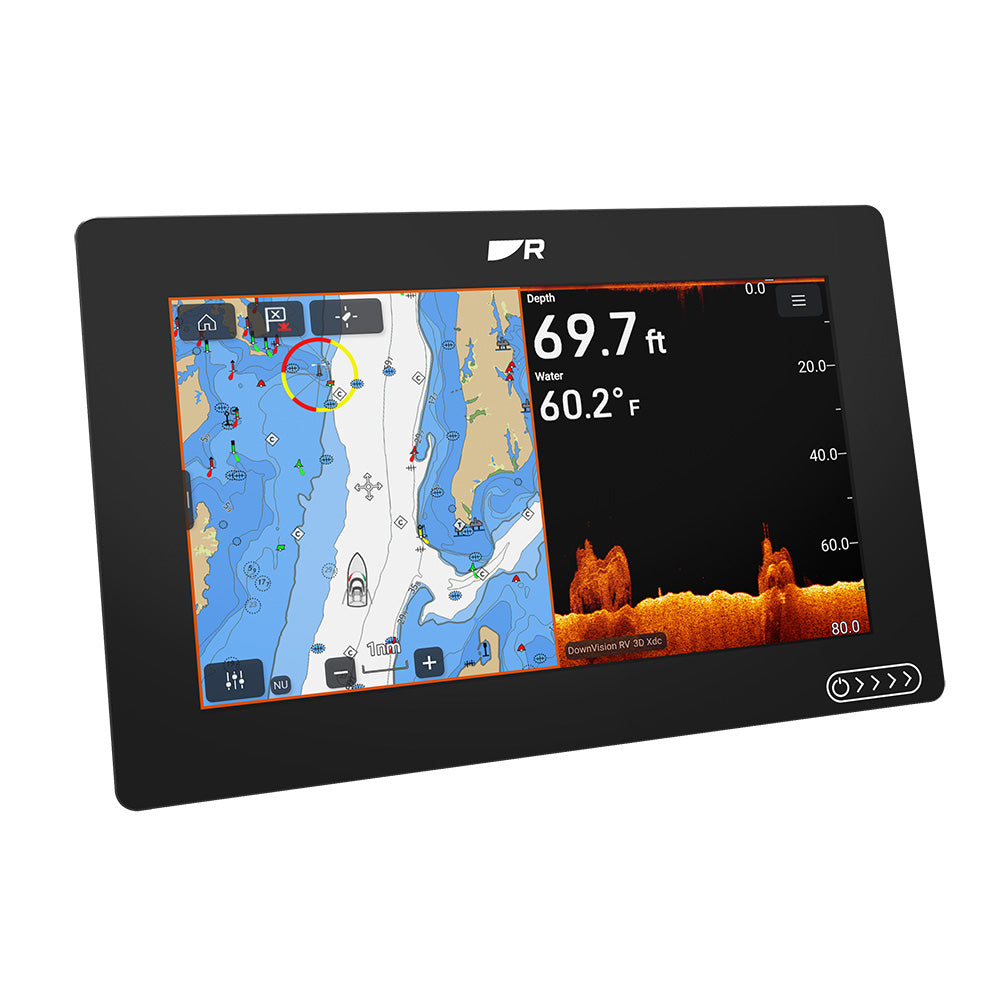

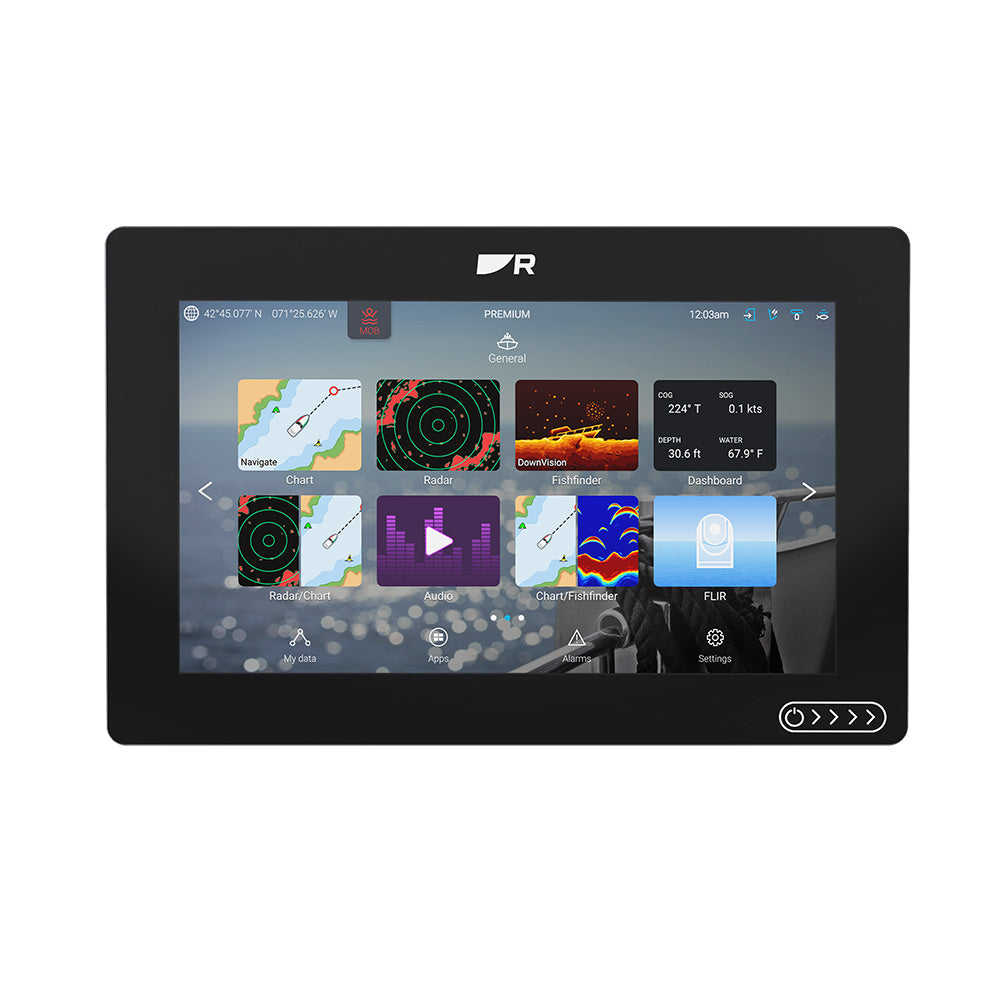

Raymarine Axiom 2 RV 9-inch Chartplotter and Fishfinder with RealVision 3D Sonar - No Transducer - E70723

Axiom 2 RV 9 Chartplotter/Fishfinder with RealVision 3D Sonar - No Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 10.43 (W) x 7.39 (H) x 7.01 (D)
• Dimensions (Surface / Flush mounted) - 9.61 (W) x 6.21 (H) x 7.01 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 11.98W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 9 (diagonal), IPS
• Resolution - HD 1280 x 720
• Brightness/luminance - 1500 bits / 1500 cd/m
• Protective Coating - HydroTough (Oleophobic)
• Transducer - 1x 25-pin RealVision connector
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot
• Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz 5%), SideVision: (70 W / 350 kHz 5%), DownVision: (35 W / 350 kHz 5%), CHIRP High: (100 W / 200 kHz 5%)

The Raymarine Axiom 2 RV 9-inch chartplotter and fishfinder offers advanced navigation and sonar capabilities designed for serious anglers, cruisers, and boaters. Featuring a high-brightness HydroTough IPS touchscreen display, this device ensures excellent visibility in all lighting conditions and is built to withstand harsh marine environments. Equipped with a powerful 6-core processor, it delivers faster chart rendering, quicker startup times, and seamless network performance, making your navigation experience more intuitive and responsive. The integrated LightHouse OS provides an easy-to-use interface with access to over 30 LightHouse apps, allowing customization to suit your specific needs.

Designed for versatility, the Axiom 2 RV 9-inch supports a wide range of chart formats including LightHouse Charts Gen 2, Navionics, and C-MAP. The device features RayNet Gigabit Ethernet for high-speed data transfer, enabling quick integration of radar, cameras, sonar, and other accessories. With 64 GByte of onboard storage, users can store multiple charts, maps, videos, and other data. The built-in high-performance GPS / GNSS receiver offers fast 10 Hz position updates, ensuring precise navigation even in challenging conditions. Vessel monitoring and control are simplified through engine integration, NMEA 2000, and digital switching support, providing a comprehensive solution for boat management.

Constructed with a rugged, marine-ready design backed by a 3-year warranty, the Axiom 2 RV 9-inch is suitable for both surface and flush mounting. It features a high-resolution HD display with a brightness of up to 1,800 nits for all-day visibility. The device also includes a 25-pin RealVision transducer connector, WiFi, Bluetooth 4.0, and multiple network options for connectivity. Whether you are navigating, fishing, or monitoring your vessel, the Raymarine Axiom 2 RV 9-inch chartplotter and fishfinder provides reliable, high-performance functionality in a durable package that is easy to operate and maintain.

Features:

• Rugged all-weather, marine-ready design with a 3-year warranty

• Powerful 6-core processor for faster chart rendering and smooth performance

• 7, 9, and 12-inch HydroTough IPS touchscreen displays with high brightness for visibility

• Operates on LightHouse OS with access to over 30 apps for customization

• RayNet Gigabit Ethernet for high-speed accessory integration

• 64 GByte onboard storage for apps, charts, and videos

• Supports a broad range of chart formats including LightHouse Charts Gen 2, Navionics, and C-MAP

• Built-in high-performance GPS / GNSS with 10 Hz updates for accurate positioning

• Smart vessel monitoring with engine and digital switching integration

• Multiple connectivity options including WiFi, Bluetooth, RayNet Ethernet, and NMEA 2000
